Basic Info.
Model NO.
ALL size
Brand
Waheynao
Standard
DIN
Application for Machine Tool
Machine Taps
Pieces
20
Application
Motorize, Manual
Customized
Non-Customized
Usage
Internal Screw Thread Making
Hardness
45-65 HRC
Materials
HSS-M2.HSS-M35,HSS-Pm
Types
JIS,ISO,DIN
Coating
Tin,Ticn,Tiain
Delivery Time
7-30days
Shipping
by Air,EMS,DDP.etc
Flute Types
Spiral Flute,Straight Flute,Spiral Point
Transport Package
Stanard Box
Specification
M2. M3, M4, M5, M6, M7, M8, M9
Trademark
WAHEYNAO
Origin
China
HS Code
8207400000
Production Capacity
6 Million PCS Annually
Packaging & Delivery
Package Size
20.00cm * 10.00cm * 6.00cm
Package Gross Weight
0.100kg
Product Description
Features and benefits
• Ideal for hand tapping with a tap wrench or power tool depending on the application
• Available in a variety of thread sizes
• Manufactured using durable HSS
• Blue stream tempered finish helping to reduce friction and produce a fine thread finish
• Available in a variety of types including taper, second and plug
• Available in a variety of thread sizes
• Manufactured using durable HSS
• Blue stream tempered finish helping to reduce friction and produce a fine thread finish
• Available in a variety of types including taper, second and plug

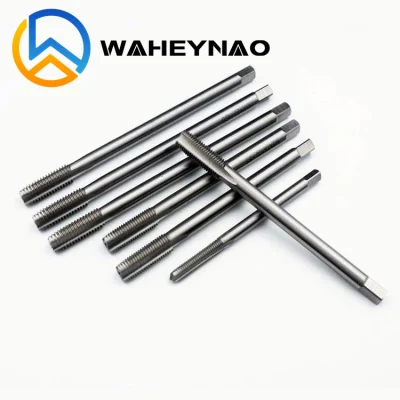

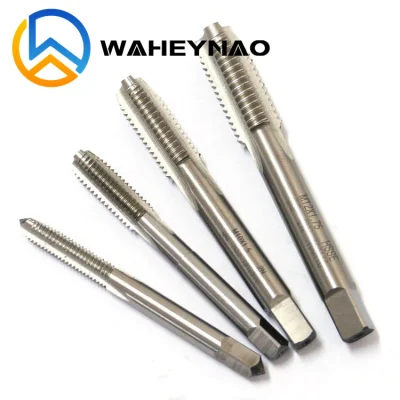

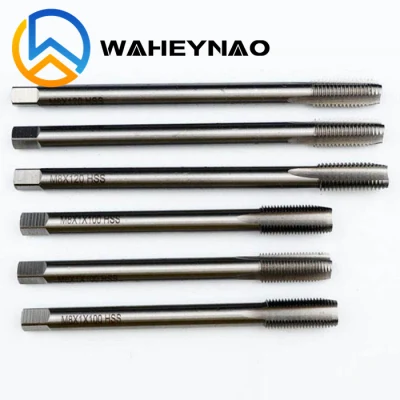

HSS taps/tungsten carbide tap
HSS Straight Flute Taps are used to cut threads in blind or through holes in most materials. They are manufactured to ISO529
standard and are suitable for hand or machine cutting.This versatile set contains three taps:
- Taper Cut (First tap) - Used for through holes or as a starter tap.
- Second Tap (Plug) - To follow the taper when tapping blind holes.
- Bottom Tap (Bottom) - For threading to the bottom of a blind hole.
standard and are suitable for hand or machine cutting.This versatile set contains three taps:
- Taper Cut (First tap) - Used for through holes or as a starter tap.
- Second Tap (Plug) - To follow the taper when tapping blind holes.
- Bottom Tap (Bottom) - For threading to the bottom of a blind hole.
High Performance Taps vs. HSS Standard Taps. Which is Right for Your Job?
If it is true that a workman is only as good as his tools, high-speed steel threading taps have created some of the greatest craftspeople the world has ever seen. Tough, hard, and wear resistant, these industry workhorses helped transform manufacturing, construction, automotive, aerospace, and many other industries in the wake of the Industrial Revolution. They continue to nobly serve industry, providing quality, fast, efficient threads day in and day out. But as industry continues to find new uses for hard and exotic materials, the need for even better tool materials has kept pace. There are increasingly broad areas where high-speed
steel taps cannot compete with the technologically-advanced chemistry,
FAQ
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price comfirmed, you can place an small trial order to test, but if you need only 1-2 pcs, we can send the free to you, and
you need to pay the shipping cost, please noted.
3) How long does the whole procedure being worked out?
After you place a order,the production handling time is about 25-30 days.
4) What about the transportation and delivery date?
Normally, we use the DHL, TNT, UPS, FeDEx to send the goods, the shipping time around 5-7 days can be reach in your local
steel taps cannot compete with the technologically-advanced chemistry,
| Flute Type | Spiral Point (Straight Flute, Spiral Flute are Available) |
| Standard | DIN371 / DIN376 (ANSI Standard is Available) |
| Size | M1-M100 |
| Thread Type | M (MF, UNC, UNF, BSW, BSP are Available) |
| Material | HSS (Alloy Steel is Available) |
| Process | Fully Ground |
| Shank Type | Square Shank |
| Surface Finish | Tin-Coated (Bright Finish, other High Performance Coating are Available) |

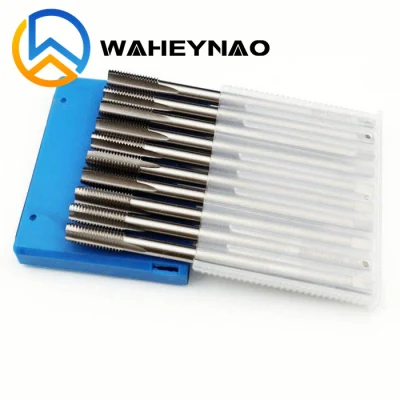

| Package | 10/5 Piece in One PVC Pouch or in Plastic Box |
| Features | 1.Ideal for rethreading fasteners and fastener holes for auto and machinery repair. 2.Precision milled sae tap and die set for cutting raw material or repair existing threads, remove screws and more function. 3.It can improve the efficiency of processing thread, a necessary tool for hand tapping operation 4.Spiral tap has a shallower flute passage than conventional taps. This gives the spiral point tap more cross-sectional area, which provides great strength, allows higher tapping speeds, and requires less power to drive. 5.Spiral point tap has the cutting face of the first few threads cut at a predetermined angle relative to the tap's axis angle to force the evacuation of chips ahead of the cutting action. |
