Basic Info.
Model NO.
HH-11/15/20/16C/18C/20C/22C/25C
Nose Application
Pipe Forming
Outlet
Direct Feeding
Pressure of Nose
Medium Pressure
Non Metal Mould
Plastic Mould
Metal Mould
Die Casting
After-sales Service
Online Service
Usage
Cable Drawing
Model Number
Hh-11/15/20/16c/18c/20c/22c/25c
Type
Dies/Mould
Condition
New
Grain Size
Ultra Fine, Extra Fine
Purity
>99.5%
Standard
JIS, GB, DIN, BS, ASTM, AISI
Tolerance
+/-0.001mm
Transport Package
Small Box Inside a Carton
Specification
JIS, GB, DIN, BS, ASTM, AISI
Trademark
HOOHA
Origin
Dongguan China
HS Code
820900900
Production Capacity
10 Sets/Month
Product Description

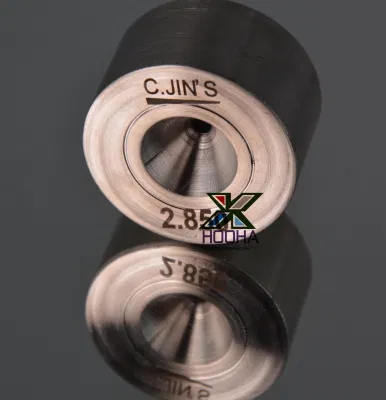

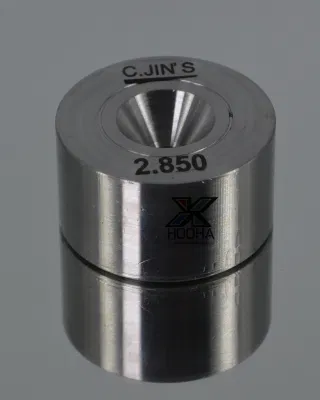

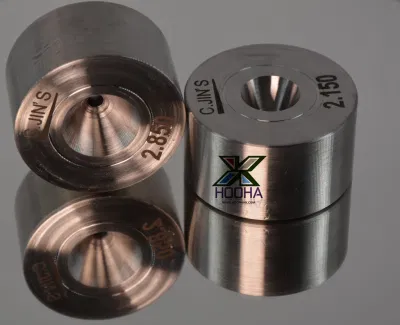

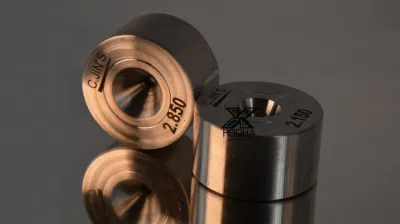

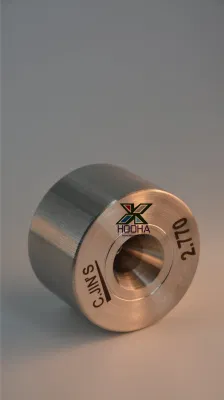

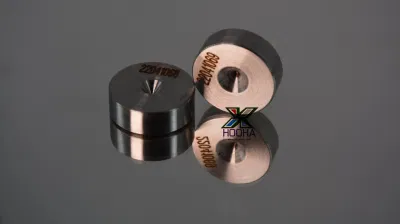

Tungsten Carbide Diamond Split Wire Drawing Dies for Wire Drawing Machine
Video Link on YouTube: https://hoohaco.en.made-in-china.com
Application:
Wire drawing molds are widely used, such as electronic devices, radar, television, instruments and aerospace and other high-precision wire, as well as commonly used tungsten wire, molybdenum wire, stainless steel wire. Wire cable wire and all kinds of alloy wire are drawn by diamond drawing die. The diamond drawing die has extremely strong wear resistance and long service life because of the use of natural diamond as raw material.
Adv antage :
1. Superior strength, toughness and high wear resistance with long working life .
2. 100% virgin tungsten carbide materials
3: ISO 9001 quality control system
4: Professional suggestion on products
5: Is very wide, mainly for drawing bar, wire, wire, pipes and other linear objects difficult to process for steel, copper,
tungsten, molybdenum and other metals and alloys drawing processing;
Mold Specifications:
| Grades | Density g/cm3 | T.R.S MPa | Hardness HRA | Performance & application recommended |
| HH11 | 14.4 | 2600 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| HH15 | 14.0 | 2800 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress. |
| HH20 | 13.5 | 3200 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| HH16C | 13.9 | 2900 | 85.5 | Impact resistance forging dies. |
| HH18C | 13.7 | 3100 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| HH20C | 13.5 | 3300 | 83.5 | Dies for wear resistant or impact resistant application. |
| HH22C | 13.3 | 3500 | 83.0 | Nut forming dies and high impact resistance forging dies. |
| HH25C | 13.1 | 3600 | 82.5 | Stainless bolt header dies and rollers. |
Drawing Mold R & D:
Customer Feedback
Company profile
| Professional and Strong Manufacture and Sales Team | |||||
| Name | Education | Position | Mainly responsible for project | Specializing in project | working year |
| zanyang Xie | college | General Engineer | The total project design and planning | power cable machine | 15 years |
| xiaohua Hu | college | Vice- general engineer | The total project design and planning | net cable,data cable machine | 10years |
| Changhong Cheng | college | Engineer | Drawings and after-sales service | Optical fiber cable machine | 25 years |
| xiuwu Chen | college | General Engineer | The total project design and planning | copper drawing machine | 15 years |
| lixin Yuan | college | Engineer | The project design and planning | coppwer wire making technical | 16 years |
| zhenghai Qiu | college | cable engineer | After service | cable making and cable factory management servie | 15 years |
| jinxin Liu | college | Marketing engineer | After service | electrical engineer | 7 years |
| xingguo Tang | High school | Electrical engineer | After service | electrical engineer | 10 years |
| changqiang Li | High school | Maintain engineer | After service | machina maintain and install service | 10 years |
| haipin Li | University | Engineering director | Marketing and sales | project consulting | 8 years |
| sen Yang | University | Engineering translator | Marketing and sales | project consulting | 5 years |
Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution.
Our vision: To make wire & cable manufacturing and using more humanized.
Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
Our vision: To make wire & cable manufacturing and using more humanized.
Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
Certificates and Exhibitions
Packing & Delivery
The raw material packing
1.The CCA copper will packing anti the oxidation way
2.The PVC/PE/FEP packing will use the paper box and wood packing
3.The tape also use the paper box add wood package
3.The tape also use the paper box add wood package
The machine packing
1.usually use the PE foam package
2.The base need wood package
3.The tape will fixed the machine on the container
