DIN352 HSS Alloy Steel Straight Flute Smoothly Cut Hand Tap for Screw Steel Aluminium Thread Tapping
Quick Details of HSS Hand/Machine Taps
Procuct Name | DIN352 Straight Flute Smoothly Cut Taper Hand Screw Tap for Screw Steel Aluminium Tapping |

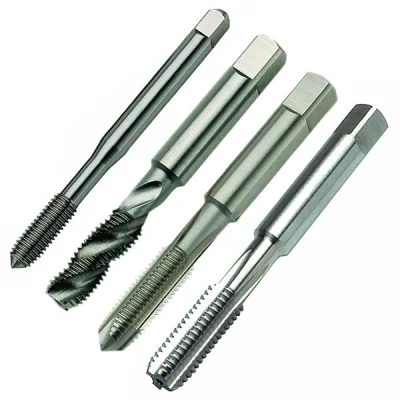

Flute Type | Straight Flute (Spiral Flute, Spiral Point are Available) |
Standard | DIN352 (ANSI Standard is Available) |
Size | M1-M64 |
Thread Type | M (MF, UNC, UNF, BSW, BSP are Available) |
Material | Alloy Steel (HSS is Available) |
Process | Fully Ground |

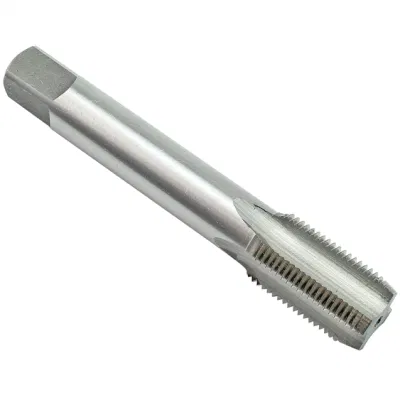

Shank Type | Square Shank |

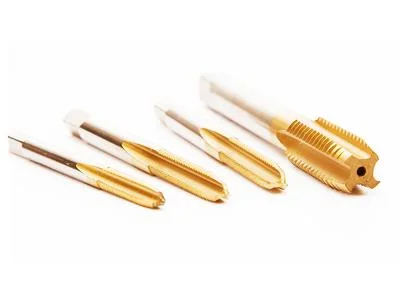

Surface Finish | Bright Finish (Tin-Coated, other High Performance Coating are Available) |
Package | 10/5 Piece in One PVC Pouch or in Plastic Box |
Specifications of HSS Hand/Machine Taps
1. Ideal for rethreading fasteners and fastener holes for auto and machinery repair.
2. Precision milled sae tap and die set for cutting raw material or repair existing threads, remove screws and more function.
3. It can improve the efficiency of processing thread, a necessary tool for hand tapping operation
4. The straight flute is the standard style of tap, designed for a range of different tapping applications.
5. A straight flute tap can be used in through or blind holes.
Size of HSS Hand Taps:
Size | Overall Length | Thread Length |
M3x0.5 | 40 | 11 |
M3x0.6 | 40 | 11 |
M3.5x0.6 | 45 | 13 |
M4x0.7 | 45 | 13 |
M4x0.75 | 45 | 13 |
M4.5x0.75 | 50 | 16 |
M5x0.8 | 50 | 16 |
M5x0.9 | 50 | 16 |
M6x1 | 50 | 19 |
M7x1 | 50 | 19 |
M8x1.25 | 56 | 22 |
M9x1.25 | 63 | 22 |
M10x1.5 | 70 | 24 |
M11x1.5 | 70 | 24 |
M12x1.75 | 75 | 29 |
M14x2 | 80 | 30 |
M16x2 | 80 | 32 |
M18x2.5 | 95 | 40 |
M20x2.5 | 95 | 40 |
M22x2.5 | 100 | 40 |
M24x3 | 110 | 50 |
M27x3 | 110 | 50 |
M30x3.5 | 125 | 56 |
M30x3 | 125 | 56 |
M33x3.5 | 125 | 56 |
M36x4 | 150 | 63 |
Application of HSS Hand Taps:
For Steel Aluminium Copper External Thread Tapping
Package and Delivery:
1. Package:Plastic box,
2. Delivery:35 Days after your deposite
3. Shipping:By sea,By air,if small order,we can provide the Express.
