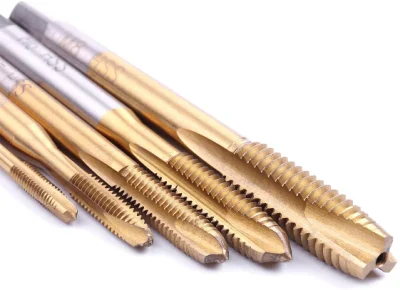

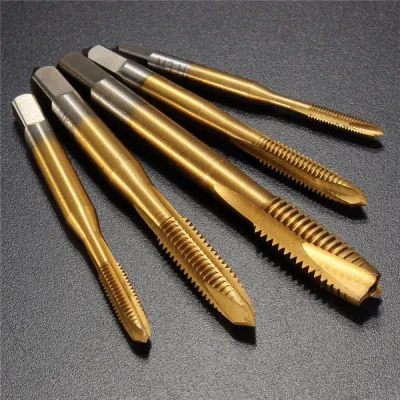

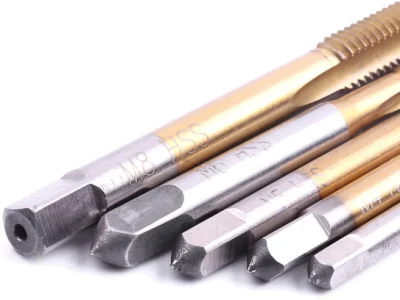

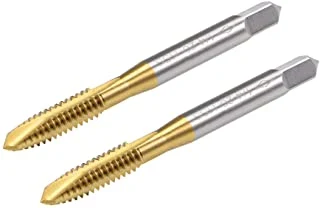

Spiral Point Plug Threading H2 6542 HSS Machine Taps

Spiral Point Plug Threading Tap UNC 5/16-18 Thread Ground Threads H2 3 Flutes HSS 6542 TICN Coated

 Description of Spiral Taps:

• Specifications: Thread size: UNC 5/16-18; thread tolerance: H2; thread length: 24mm / 0.94"; plug chamfer and right hand thread cutting. 3 straight flutes are ground to provide downward chip removal
• Material & Finish: High-speed steel tool is great for general purpose applications, offering high hardness and toughness. TICN coating for improving wear and fusion resistance, long service life
• Applications: Great for through-hole threads. Can be used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics, etc.
• How to Use: Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps
• Warm Tips: Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping

Features of HSS Spiral Taps:

1. Features plug chamfer and right hand thread cutting. 3 straight flutes are ground to provide downward chip removal.
2. High-speed steel tool is great for general purpose applications, offering high hardness and toughness. Titanium coating for improving wear and fusion resistance, long service life.
3. Great for through-hole threads. Can be used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics, etc..
4. Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps
5. Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping.


Application of HSS Machine Taps:

Great for through-hole threads. Can be used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics, etc.

Specification of HSS Spiral Taps:
1. Material: HSS 6542 (High Speed Steel 6542)
2. Thread Size: UNC 5/16-18

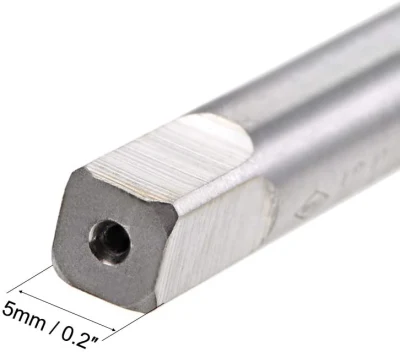

3. Shank Side Width: 5mm / 0.2 inch
4. Thread Length: 24mm / 0.94 inch
5. Total Length: 72mm / 2.83 inch

Package and Delivery:

1. Package:Plastic box

2. Delivery:35 Days after your deposite

3. Shipping:By sea,By air,if small order,we can provide the Express.
