Product Description

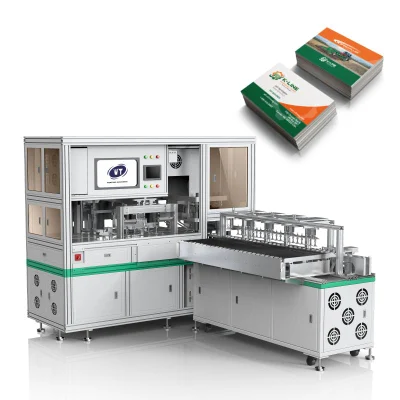

This machine adopts PLC program control operation, and operates on the humanized touch screen and uses the hydraulic system as the punching power. The high-sensitivity photoelectric sensor cooperates with the stepping system for longitudinal search and positioning, and the servo motor cooperates with the imported high-precision ball screw module for lateral positioning and feeding.
| Power supply | AC 380V/50 HZ | Sheet format | 5X5/5X6/3X8/4X8 optional |
| Total power | 12KW | Control | PLC control + servo/hydraulic system |
| Air source | 6 kg/cm2 | Operators needed | 1 |
| Air consumption | Approx. 150L/min | Dimension | L2800*W2750*H1700MM |
| Punching pressure | 2T-6T | Drive | Servo/hydraulic system |
| Weight | Approx. 1500KG | Punched card size | Standard size, such as name card, membership card |
| Punching accuracy | ±0.10mm | Productivity | 20000~55000PCS/H |
| Applicable card materials | Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. |
A: High-sensitivity sensor is matched with the servo motor to perform feeding, with adjustable position parameters of punching point and high precision.
B: The hydraulic is used as power source with low noise and stable pressure, and punching speed can be adjusted.
C: The advanced card collecting system can realize arrangement and collection in a certain order automatically.
D: The punched cards are automatically discharged, and are stacked and collected .
Established in 1996, Wentong has over 20 years of experience in developing and manufacturing of smart card machines and post-press equipment. We have been committed to constantly growing and improving our products and service to meet all our customer's requirements for production of children's books, board books, paper cards and plastic cards. Our wide range of products includes die cutting machine, card collating machine, card punching machine, SIM card production machine, board book mounting and gluing machine, automatic packaging machine, ultrasonic welding system, magnetic tape laying machine, sheet cleaning machine, etc. which are widely applied in a variety of industries such as card production, printing & packaging, children's book, paper products, etc.
2. Then vacuum packaging in the logistics park;
3. Finally, use the standard export wooden box for peripheral protection.
1.Q: What kind of product is this die-cutting machine mainly used for?
A: This die-cutting machine is mainly used for cutting shape of children book,board book, and can also punch the hole.
2.Q: What size is the machine suitable for?
A: Maximum punching size: 300*400(mm)
Minimum punching size: 100*100 (mm)
3.Q: What other products can this die-cutting machine be used for?
A: This die-cutting machine is also suitable for particle board, grey board paper, etc.
