Product Description

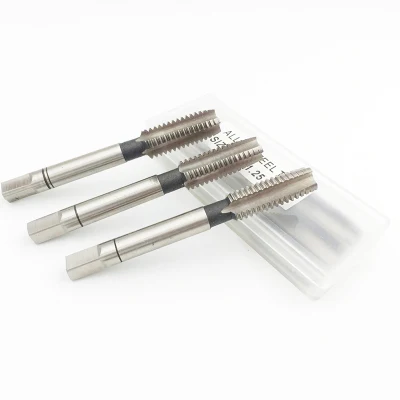

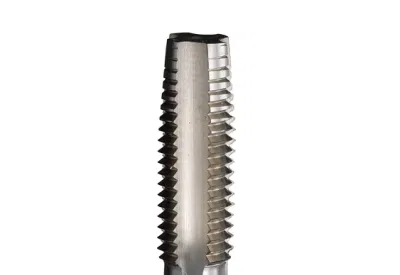

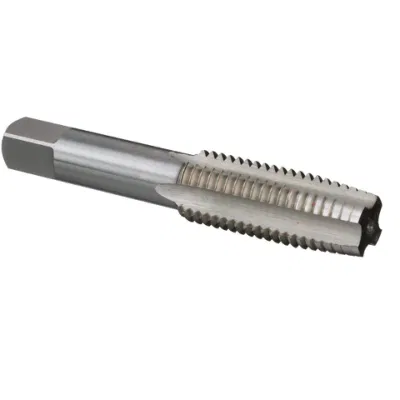

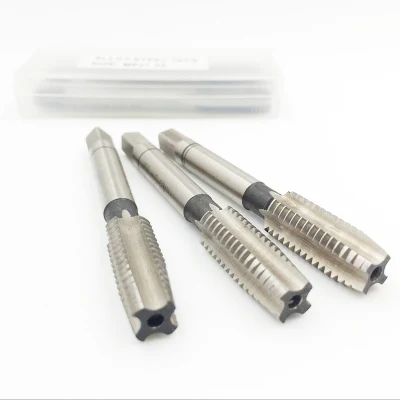

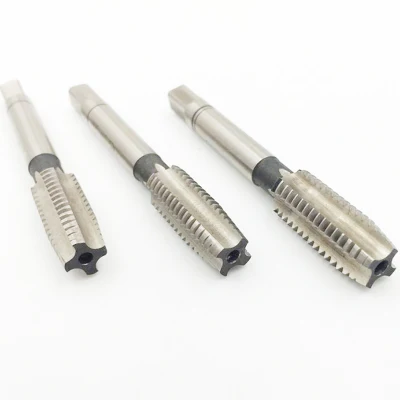

3pcs High Speed Steel Metric Hand Tap Set HSS Bright Finished Taper Plug Bottom
Features of HSS Hand Taps:
- Used to make new threads or re-thread damaged and/or jammed threads
- High Speed Steel Hand Taps come in three styles: Taper Style: Starts the thread square with the workpiece. Plug Style: Generally used in thru holes. Bottom Style: Generate the thread to the bottom of the hole.
- High speed steel hand taps are the most versatile taps for hand use, or for tapping under power
- Hand taps are popular for use in general machine tapping or CNC tapping
- Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications
Applicable Workpiece:
Size of HSS Hand Taps:
SIZE | OVERALL LENGTH | THREAD LENGTH |
M2*0.4 | 41 | 8.0 |
M2.2*0.45 | 44.5 | 9.5 |
M2.5*0.45 | 44.5 | 9.5 |
M3*0.5 | 48 | 11.0 |
M3.5*0.6 | 50 | 13.0 |
M4*0.7 | 53 | 13.0 |
M5*0.8 | 58 | 16.0 |
M5.5*0.9 | 62 | 17.0 |
M6*1 | 66 | 19.0 |
M7*1 | 66 | 19.0 |
M8*1.25 | 72 | 22.0 |
M9*1.25 | 72 | 22.0 |
M10*1.5 | 80 | 24.0 |
M11*1.5 | 85 | 25.0 |
M12*1.75 | 89 | 29.0 |
M14*2 | 95 | 30.0 |
M16*2 | 102 | 32.0 |
M18*2.5 | 112 | 37.0 |
M20*2.5 | 112 | 37.0 |
M22*2.5 | 118 | 38.0 |
M24*3 | 130 | 45.0 |
M27*3 | 135 | 45.0 |
M30*3.5 | 138 | 45.0 |
M33*3.5 | 151 | 51.0 |
M36*4 | 162 | 57.0 |
M39*4 | 170 | 60.0 |
M42*4.5 | 187 | 67.0 |
M45*4.5 | 187 | 67.0 |
M48*4 | 187 | 67.0 |
M52*5 | 200 | 70.0 |
M56*5.5 | 200 | 70.0 |
M60*5.5 | 221 | 76.0 |
M64*6 | 224 | 79.0 |
M68*6 | 234 | 79.0 |
Specification of HSS Hand Taps:
1.Hand Taps:Hand Taps are the most versatile taps for hand use, or for tapping under power. Hand taps are popular for use in general machine tapping or CNC tapping. They are also appropriate for tapping the vast majority of materials in through or blind holed conditions.
2.Taper Style: Starts the thread square with the workpiece.
3.Plug Style: Generally used in thru holes.
4.Bottom Style: Generate the thread to the bottom of the hole.
How to Use it:
Package and Delivery:
1. Package:Plastic box
2. Delivery:35 Days after your deposite
3. Shipping:By sea,By air,if small order,we can provide the Express.
