Basic Info.
Model NO.
HAWELL
Specification
D25-75mm
Trademark
HAWELL
Origin
China
HS Code
8505119000
Production Capacity
50000PCS Month
Product Description

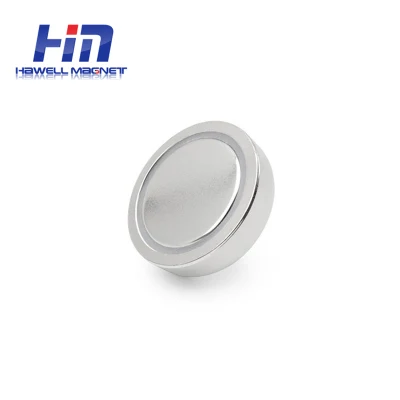

| Item Name | Pot magnets with cylindrical borehole screw-on ,Pot magnet,magneitc pot ,holding magnet pot, cup magnet | ||||||||
| Model Number | HAWELL | ||||||||
| Material | Neodymium magnet+ A3 steel cup | ||||||||

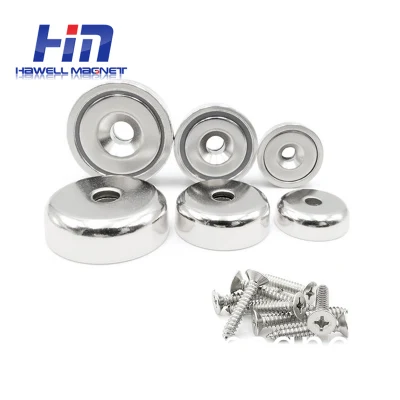

| Size | dia25mm-75mm | ||||||||
| Pulling Force | ≤155kg | ||||||||
| Working temperature(ºC) | <80 ° | ||||||||
| Coating Options | 1. Nickel2. Zinc 3. White/Black painting3. Epoxy | ||||||||
| Air gap insertion options | 1. Black/White epoxy 2. Plastic ring 3. Copper sleeve 4. No insertion | ||||||||
| MOQ | 100pcs | ||||||||
| Sample | Available | ||||||||
| Sample Lead Time | 20-30 Days | ||||||||
| Certificate | ROHS, REACH,ISO9001, | ||||||||
| Payment Terms | T/T, WU, E-checking, VISA, Master Card... | ||||||||

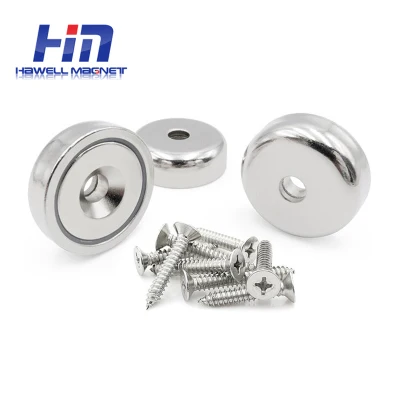

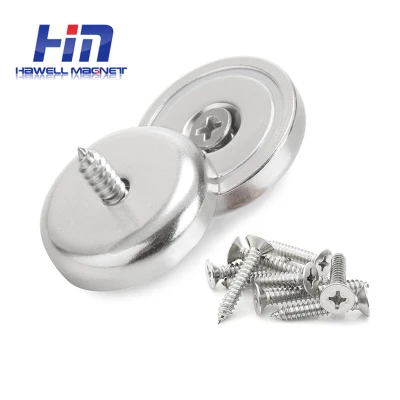

| Advantage | These pot magnets can be fastened with a screw without countersink . Hence, they can be screwed into the wall or ceiling with an regular screw and you can attach various objects. | ||||||||

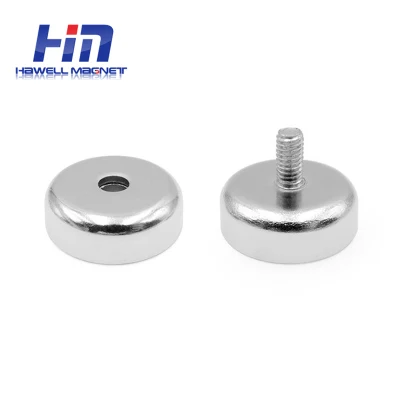

| Characteristic | 1.pot magnets can be made with tapped hole, countersunk hole, conter-bored hole, a thread-stud or a threaded collar for convenient mounting 2.the steel shell ( cup) not only protects the magnets from damaging , but also conducts the magnetism of other side to the attraction face.Magnetism is confined and concentrated to the bottom attraction face only, to give teh maximum holding or pulling force . | ||||||||
| Application | Use as holding, mounting or cup magnet Especially suitable for structural solutions in metal, plant or booth construction as well as in the lighting industry | ||||||||
Neodymium pot magnets have a straight center hole which is recessed to accept flat screw or bolt, which makes it very easy to mount securely in position. These are high strength rare earth magnets with a encased in a steel cup for extra protection against chipping or cracking. They are single sided magnets which are the perfect solution if you need to attach or suspend objects without damaging the surface.
