Basic Info.
Model NO.
ISO529 M6X1.0
Pieces
3PCS
Application
Motorize, Manual
Customized
Non-Customized
Tolerance
6h
Surface Finishing
Tin Finished
Type
Tap
Sample
Available
Transport Package
Plastic Box
Specification
M1-M68
Trademark
STARRY
Origin
Yangzhou
HS Code
82074000
Production Capacity
300000PCS Per Mouth
Product Description

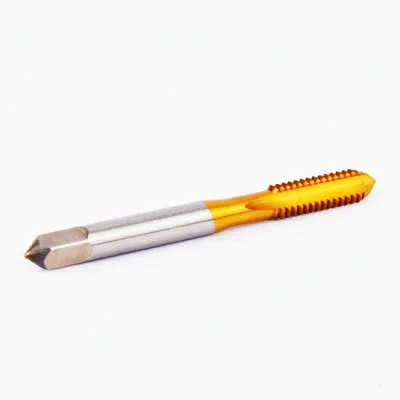

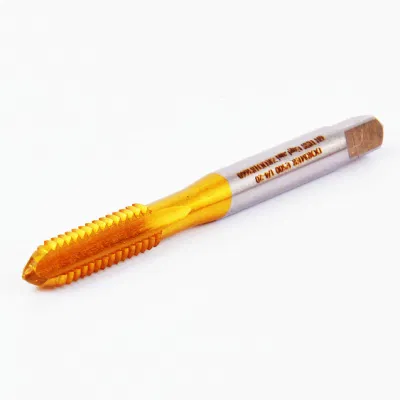

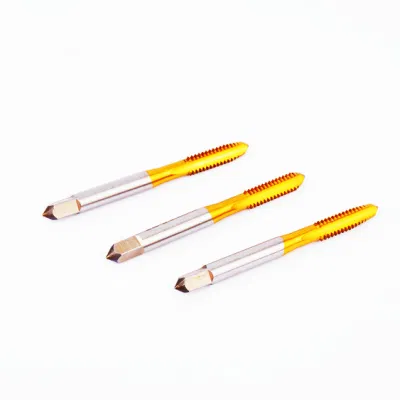

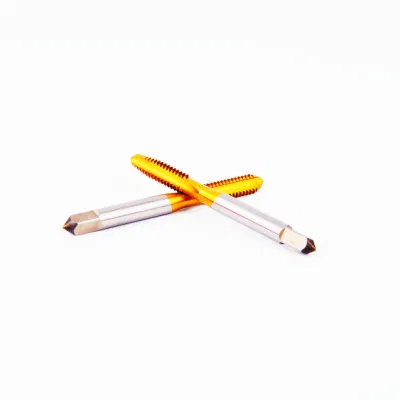

ISO529 hand taps Manufactured from high-speed steel with a necked design.straight flutes improve chip-lifting action and span wider spaces in the hole while tapping.Achieve excellent results in deep blind holes. Taper chamfer taps have 6to 7 pitches.Plug chamfer taps have 3 to 5 pitches; bottoming chamfer taps have 1 to 2 pitches.
Material: High Speed Steel -M2
Package: We could make customerised package, and normally our package is 2pcs packed into a plastic case.
Delivery date: Normally for customer brand new orders, the lead time is around 40days, it's ok to check case by case.
Straight flute full size taps used as machine taps or sets of 3 as hand taps sets for tapping in free cutting Steel up to 800N/mm2. The perfect form thread is generated by a combination of effective pitch diameter, major diameter and chamfer length.
Package: We could make customerised package, and normally our package is 2pcs packed into a plastic case.
Delivery date: Normally for customer brand new orders, the lead time is around 40days, it's ok to check case by case.
Straight flute full size taps used as machine taps or sets of 3 as hand taps sets for tapping in free cutting Steel up to 800N/mm2. The perfect form thread is generated by a combination of effective pitch diameter, major diameter and chamfer length.
| Product name | ISO529 HSS Straight Flute Smoothly Cut Hand Tap |
| Flute Type | Straight Flute ( Spiral Point is Available) |
| Standard | ISO529 |
| Process | Fully ground |
| Size | M1-M68 |
| Surface | Bright Finish (Tin-coated, other High Performance Coating are Available) |
| Shank Type | Square Shank |
| Package | 3 Piece in One Plastic Box |
| Thread Type | M/MF, UNC/UNF are Available |
| Features | 1.Ideal for rethreading fasteners and fastener holes for auto and machinery repair. 2.Precision milled sae tap and die set for cutting raw material or repair existing threads, remove screws and more function. 3.It can improve the efficiency of processing thread, a necessary tool for hand tapping operation 4.The straight flute is the standard style of tap, designed for a range of different tapping applications. 5.A straight flute tap can be used in through or blind holes. |
| Size | Limit | Overall L1 | Thread L2 | Shank D2 | z | |||
| M2x0.4 | 6H | 41 | 8 | 2.50 | 2.00 | 3 | ||
| M2x0.25 | 6H | 41 | 8 | 2.50 | 2.00 | 3 | ||
| M2.5x0.45 | 6H | 44.5 | 9.5 | 2.80 | 2.54 | 3 | ||
| M2.5x0.35 | 6H | 44.5 | 9.5 | 2.80 | 2.54 | 3 | ||
| M3x0.5 | 6H | 48 | 11 | 3.15 | 2.50 | 3 | ||
| M3x0.35 | 6H | 48 | 11 | 3.15 | 2.50 | 3 | ||
| M3.5x0.6 | 6H | 50 | 13 | 3.55 | 2.80 | 3 | ||
| M3.5x0.35 | 6H | 50 | 13 | 3.55 | 2.80 | 3 | ||
| M4x0.7 | 6H | 53 | 13 | 4.00 | 3.15 | 3 | ||
| M4x0.5 | 6H | 53 | 13 | 4.00 | 3.15 | 3 | ||
| M4.5x0.75 | 6H | 53 | 13 | 4.50 | 3.55 | 3 | ||
| M4.5x0.5 | 6H | 53 | 13 | 4.50 | 3.55 | 3 | ||
| M5x0.8 | 6H | 58 | 16 | 5.00 | 4.00 | 3 | ||
| M5x0.5 | 6H | 58 | 16 | 5.00 | 4.00 | 3 | ||
| M6x1 | 6H | 66 | 19 | 6.30 | 5.00 | 3 | ||
| M6x0.75 | 6H | 66 | 19 | 6.30 | 5.00 | 3 | ||
| M6x0.5 | 6H | 66 | 19 | 6.30 | 5.00 | 3 | ||
| M7x1 | 6H | 66 | 19 | 7.10 | 5.60 | 4 | ||
| M7x0.75 | 6H | 66 | 19 | 7.10 | 5.60 | 4 | ||
| M7x0.5 | 6H | 66 | 19 | 7.10 | 5.60 | 4 | ||
| M8x1.25 | 6H | 72 | 22 | 8.00 | 6.30 | 4 | ||
| M8x1 | 6H | 72 | 22 | 8.00 | 6.30 | 4 | ||
| M8x0.75 | 6H | 66 | 19 | 8.00 | 6.30 | 4 | ||
| M8x0.5 | 6H | 66 | 19 | 8.00 | 6.30 | 4 | ||
| M10x1.5 | 6H | 80 | 24 | 10.00 | 8.00 | 4 | ||
| M10x1.25 | 6H | 80 | 24 | 10.00 | 8.00 | 4 | ||
| M10x1 | 6H | 80 | 24 | 10.00 | 8.00 | 4 | ||
| M10x0.75 | 6H | 73 | 20 | 10.00 | 8.00 | 4 | ||
| M12x1.75 | 6H | 89 | 29 | 9.00 | 7.10 | 4 | ||
| M12x1.5 | 6H | 89 | 29 | 9.00 | 7.10 | 4 | ||
| M12x1.25 | 6H | 89 | 29 | 9.00 | 7.10 | 4 | ||
| M12x1 | 6H | 80 | 22 | 9.00 | 7.10 | 4 | ||
| M14x2 | 6H | 95 | 30 | 11.20 | 9.00 | 4 | ||
| M14x1.5 | 6H | 95 | 30 | 11.20 | 9.00 | 4 | ||
| M14x1.25 | 6H | 95 | 30 | 11.20 | 9.00 | 4 | ||
| M14x1 | 6H | 87 | 22 | 11.20 | 9.00 | 4 | ||
| M16x2 | 6H | 102 | 32 | 12.50 | 10.00 | 4 | ||
| M16x1.5 | 6H | 102 | 32 | 12.50 | 10.00 | 4 | ||
| M16x1 | 6H | 92 | 22 | 12.50 | 10.00 | 4 | ||
| M18x2.5 | 6H | 112 | 37 | 14.00 | 11.20 | 4 | ||
| M18x1.5 | 6H | 112 | 37 | 14.00 | 11.20 | 4 | ||
| M18x1.25 | 6H | 112 | 37 | 14.00 | 11.20 | 4 | ||
| M18x1 | 6H | 97 | 22 | 14.00 | 11.20 | 4 | ||
| M20x2.5 | 6H | 112 | 37 | 14.00 | 11.20 | 4 | ||
| M20x2 | 6H | 112 | 37 | 14.00 | 11.20 | 4 | ||
| M20x1.5 | 6H | 112 | 37 | 14.00 | 11.20 | 4 | ||
| M20x1.25 | 6H | 102 | 22 | 14.00 | 11.20 | 4 | ||
| M22x2.5 | 6H | 118 | 38 | 16.00 | 12.50 | 4 | ||
| M22x2 | 6H | 118 | 38 | 16.00 | 12.50 | 4 | ||
| M22x1.5 | 6H | 118 | 38 | 16.00 | 12.50 | 4 | ||
| M22x1 | 6H | 109 | 24 | 16.00 | 12.50 | 4 | ||
| M24x3 | 6H | 130 | 45 | 18.00 | 14.00 | 4 | ||
| M24x2 | 6H | 130 | 45 | 18.00 | 14.00 | 4 | ||
| M24x1.5 | 6H | 130 | 45 | 18.00 | 14.00 | 4 | ||
| M24x1 | 6H | 114 | 24 | 18.00 | 14.00 | 4 | ||
| M27x3 | 6H | 135 | 45 | 20.00 | 16.00 | 4 | ||
| M27x2 | 6H | 127 | 37 | 20.00 | 16.00 | 4 | ||
| M27x1.5 | 6H | 127 | 37 | 20.00 | 16.00 | 4 | ||
| M27x1 | 6H | 120 | 25 | 20.00 | 16.00 | 4 | ||
| M30x3.5 | 6H | 138 | 48 | 20.00 | 16.00 | 4 | ||
| M30x3 | 6H | 138 | 48 | 20.00 | 16.00 | 4 | ||
| M30x2 | 6H | 127 | 37 | 20.00 | 16.00 | 4 | ||
| M30x1.5 | 6H | 127 | 37 | 20.00 | 16.00 | 4 | ||
| M30x1 | 6H | 120 | 25 | 20.00 | 16.00 | 4 | ||
| M32x2 | 6H | 137 | 37 | 22.40 | 18.00 | 4 | ||
| M32x1.5 | 6H | 137 | 37 | 22.40 | 18.00 | 4 | ||
| M33x3.5 | 6H | 151 | 51 | 22.40 | 18.00 | 4 | ||
| M33x3 | 6H | 151 | 51 | 22.40 | 18.00 | 4 | ||
| M33x2 | 6H | 137 | 37 | 22.40 | 18.00 | 4 | ||
| M33x1.5 | 6H | 137 | 37 | 22.40 | 18.00 | 4 | ||
| M36x4 | 6H | 162 | 57 | 25.00 | 20.00 | 4 | ||
| M36x3 | 6H | 162 | 57 | 25.00 | 20.00 | 4 | ||
| M36x2 | 6H | 144 | 39 | 25.00 | 20.00 | 4 | ||
| M36x1.5 | 6H | 144 | 39 | 25.00 | 20.00 | 4 | ||
1. Package:Plastic box,
2. Delivery:35 Days after your deposite
3. Shipping:By sea,By air,if small order,we can provide the Express.
