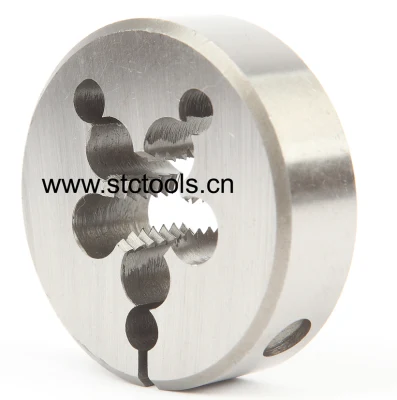

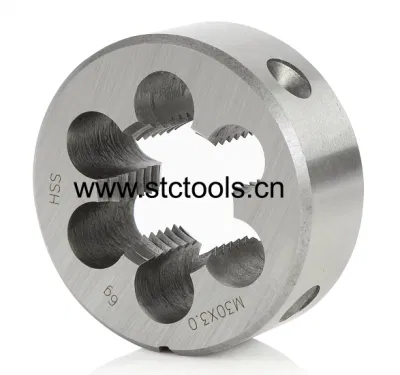

High Speed Steel (HSS) Round Thread Dies
Get premium quality High Speed Steel (HSS) Round Thread Dies from our factory. Durable and reliable cutting tools for all your threading needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
stc190R-5
Transport Package
Plastic Box
Specification
M1 to M120
Trademark
stc
Origin
Zhenjiang Jiangsu
HS Code
8207400000
Production Capacity
500000PCS/Size

Product Description

High Speed Steel (HSS) Round Thread Dies High Speed Steel (HSS) Round Thread Dies High Speed Steel (HSS) Round Thread Dies High Speed Steel (HSS) Round Thread Dies High Speed Steel (HSS) Round Thread Dies High Speed Steel (HSS) Round Thread Dies High Speed Steel (HSS) Round Thread Dies







STC098A1, ROUND DIE, DIN223   STC098A2, ROUND DIE, FINE THREAD

Right Hand, Tolerance 6g. 6h pls specify when ordering.   DIN223B
Material: GCr15. HSS or Carbon Steel pls specify when ordering.   Size Pitch Outside   Size Pitch Outside


            M27x2 2 65   M40x1.5 1.5 75
                M28x1 1 65   M40X2 2 75
                M28x1.5 1.5 65   M40X3 3 75
                M28x2 2 65   M42x1.5 1.5 75
                M30x1 1 65   M42x2 2 75
                M30x1.5 1.5 65   M42x3 3 75
                M30x2 2 65   M42x4 4 75
Size Pitch Outside   Size Pitch Outside   M30x3 3 65   M45x1.5 1.5 90
M2 0.4 16x5   M12 1.75 38x11   M32x1.5 1.5 65   M45x2 2 90
M2.2 0.45 16x5   M14 2 38x11   M32x2 2 65   M45x3 3 90
M2.3 0.4 16x5   M16 2 45x18   M33x1 1 65   M45x4 4 90
M2.5 0.45 16x5   M18 2.5 45x18   M33x1.5 1.5 65   M48x1.5 1.5 90
M2.6 0.45 16x5   M20 2.5 45x18   M33x2 2 65   M48x2 2 90
M3 0.5 20x5   M22 2.5 55x22   M33x3 3 65   M48x3 3 90
M3.5 0.6 20x5   M24 3 55x22   M35x1.5 1.5 65   M48x4 4 90
M4 0.7 20x5   M27 3 65x25   M36x1.5 1.5 65   M50x1.5 1.5 90
M4.5 0.75 20x7   M30 3.5 65x25   M36x2 2 65   M50x2 2 90
M5 0.8 20x7   M33 3.5 65x25   M36x3 2 65   M50x3 3 90
M6 1 20x7   M36 4 65x25   M39x1.5 1.5 75   M52x1.5 1.5 90
M7 1 25x9   M39 4 75x30   M39x2 2 75   M52x2 2 90
M8 1.25 25x9   M42 4.5 75x30   M39x3 2 75   M52x3 3 90
M9 1.25 25x9   M45 4.5 90x36           M52x4 4 90
M10 1.5 30x11   M48 5 90x36
M11 1.5 30x11   M52 5 90x36   STC235, ROUND DIE, 25.4MM O.D.

STC098A2, ROUND DIE, FINE THREAD   Material: GCr15. HSS or Carbon Steel pls specify when ordering.





Right Hand, Tolerance 6g. 6h pls specify when ordering.
Material: GCr15. HSS or Carbon Steel pls specify when ordering.







          Size Pitch Outside   Size Pitch Outside
          M3 0.5 25x9   M8 1.25 25x9
          M4 0.7 25x9   M10 1.5 25x9
DIN223B         M5 0.8 25x9   M12 1.75 25x9
Size Pitch Outside   Size Pitch Outside   M6 1 25x9
M2x0.25 0.25 16   M14X1.25 1.25 38
M2x0.35 0.35 16   M14x1.5 1.5 38   STC098B, BSW ROUND DIES, DIN223
M3x0.35 0.35 20   M15x1.5 1.5 38
M4x0.5 0.5 20   M16x1 1 45   Material: GCr15. HSS or Carbon Steel pls specify when ordering.
M4.5x0.5 0.5 20   M16x1.5 1.5 45


M5x0.5 0.5 20   M17x1.5 1.5 45
M5.5x0.5 0.5 20   M18x1 1 45
M6x0.75 0.75 20   M18x1.5 1.5 45
M7x0.75 0.75 25   M18x2 2 45
M8x0.75 0.75 25   M20x1 1 45
M8x1 1 25   M20x1.5 1.5 45   Size Pitch Outside   Size Pitch Outside
M9x0.75 0.75 25   M20x2 2 45   1/16" 60 16   9/16" 12 38
M9x1 1 25   M22x1 1 55   3/32" 48 16   5/8" 11 45
M10x0.75 0.75 30   M22x1.5 1.5 55   1/8" 40 20   11/16" 11 45
M10X1 1 30   M22x2 2 55   5/32" 32 20   3/4" 10 45
M10X1.25 1.25 30   M24x1 1 55   3/16" 24 20   7/8" 9 55
M11x0.75 0.75 30   M24x1.5 1.5 55   7/32" 24 20   1" 8 55
M11x1 1 30   M24x2 2 55   1/4" 20 25   1-1/8" 7 65
M12x1 1 38   M25x1.5 1.5 55   5/16" 18 25   1-1/4" 7 65
M12x1.25 1.25 38   M25x2 2 55   3/8" 16 30   1-1/2" 6 75
M12x1.5 1.5 38   M27x1 1 65   7/16" 14 30   1-3/4" 5 90
M14X1 1 38   M27x1.5 1.5 65   1/2" 12 38   2" 4-1/2 90
