Basic Info.
Model NO.
TX-5
Speed
200PCS Per Min.
Power
1.1kw
Main Die Size
20*35
Machine Color
Green
Transmission Type
Flexible
Automatic Production Line
Comprehensive
Certification
SGS
Flexible Production
Agile Manufacturing
Rhythm
Non Flow Production Line
Transport Package
Wooden Packing
Specification
1400*850*750mm
Trademark
CH
Origin
Guangdong, China
HS Code
8462991000
Production Capacity
100set
Product Description

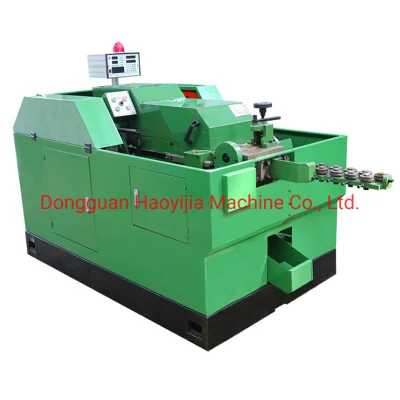

High-Speed Automatic 1- Die-2 Blow Screw Cold Heading Machine
Product Specification:
Product Specification:
| Model description | Max cut-off diameter | Max cut-off length | Stroke | Pcs/min | Main Die Diameter | Cut-off Dia | Punch Die(1st) | Punch Die(2nd) | Main motor | Pump | Size | Net Weigh |
| 0# Cold Head Machine | 3mm | 24mm | 38mm | 170-200 | 20mm | 13.5mm | 18mm | 18mm | 1HP | 1/4HP | 137*84*102 | 500kg |
| 0# Cold Head Machine-plus | 3mm | 30mm | 50mm | 150-200 | 20mm | 13.5mm | 18mm | 18mm | 1HP | 1/4HP | 155*35*110 | 650kg |
| 1/8 Cold Head Machine | 4mm | 32mm | 58mm | 150-180 | 30mm | 15mm | 24mm | 20mm | 2HP | 1/4HP | 165*105*120 | 1050kg |
| 3/16 Cold Head Machine | 5mm | 64mm | 92mm | 150-180 | 34.5mm | 19mm | 31mm | 31mm | 3HP | 1/4HP | 189*107*111 | 1750kg |
| 3/16 Cold Head Machine-plus | 5mm | 76mm | 120mm | 130-160 | 34.5mm | 19mm | 31mm | 31mm | 3HP | 1/4HP | 210*110*112 | 1900kg |
| 1/4 Cold Head Machine | 6mm | 76mm | 124mm | 90-110 | 45mm | 25mm | 36mm | 36mm | 5HP | 1/4HP | 240*145*150 | 2750kg |
| 1/4 Cold Head Machine-plus | 6mm | 102mm | 160mm | 65-90 | 45mm | 25mm | 36mm | 36mm | 5HP | 1/4HP | 315*135*129 | 3700kg |
| 5/16 Cold Head Machine | 8mm | 150mm | 220mm | 65-85 | 60mm | 32mm | 38mm | 38mm | 10HP | 1/4HP | 350*151*135 | 5500kg |
| 3/8 Cold Head Machine | 10mm | 152mm | 230mm | 52-60 | 80mm | 40mm | 50mm | 50mm | 15HP | 1/4HP | 445*174*151 | 7000kg |
Produt Picture:

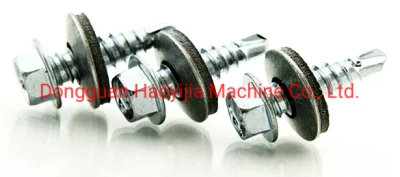

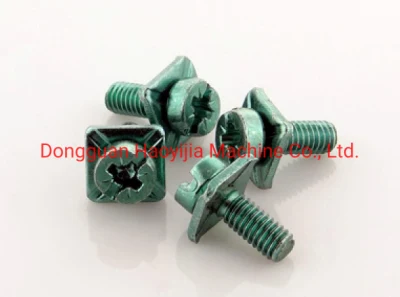

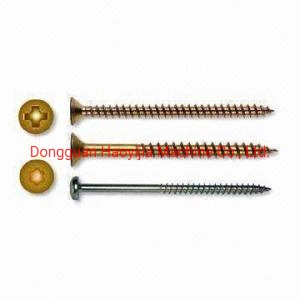

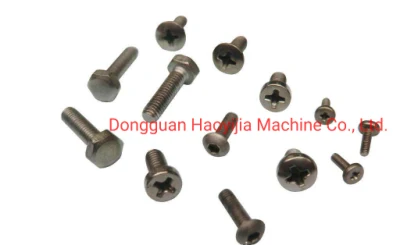

Machine use for various screw header forming, like phillips type, Pozidriv type slotted type ect.
Over years' R&D, our products are achieving to the top level in China, so we could meet all customers' requirement,any interesting,pls don't hesitation to contact us now.
Why choose us
1. Create value for our valuable customers
we always provide good quality and nice design products to meet the needs of the customers, we are the leader in this field and we always provide good products and service to our valuable customers.
2. Better quality and service with lower price
we always supply the better price on the same quality level, and try our best to save the client's every cent.
3. Dare to innovation.
Every year, our company will develop the new products to meet the market need.
FAQ
Q: what's the packing of the machine?
A.In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.
Q: What's the payment term?
A.Usually by T/T ( 30% in advance, the balance shoud be paid shipping before)
Q: Can I change the motor as my local voltage?
A.We can change the voltage as your requirement, and there's no extra charge.
Q: How do your control quality?
A.W have an inspection team to check the products at all stages of the production process.
Q:What parameter is necessary?
A.The nail diameter, nail length ect are mainly needed, detailed information would be appreciated, Special requirement can be discussed.
Q:How long will it take to deliver goods?
A:We will deliver the goods within 10 days for spare parts, other goods maybe take a little more times to test and prepare, we will deliver the goods within the deadline which both parties agreehainiud.
