Basic Info.
Model NO.
High Quality Hex Thread Screw Die
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Perfect
Type
Hexgaon Dies
Raw Material
Alloy Steel,High Speed Steel
Surface Treatment
Tin,Ticn,Tialn
Unit Packing
Plastic Box
Transport Package
Plastic Box +Inner Box+Carton
Specification
According to Requirement
Trademark
Perfect
Origin
Jiangsu China
HS Code
8207400000
Production Capacity
1000 PCS/Per Day
Product Description

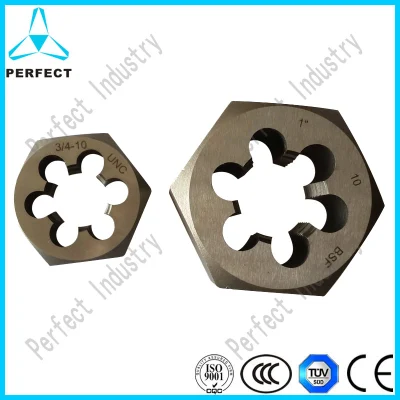

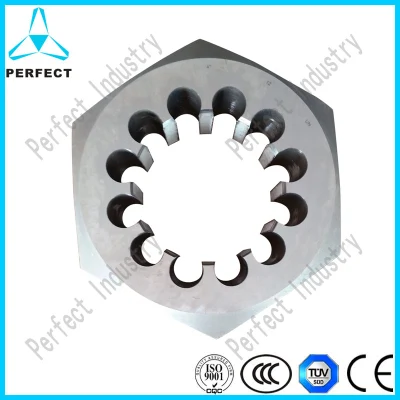

High Quality Fully Ground Hex Thread Screw Die
1.Detail for threading die
| Product Name | Threading Die |
| Material | Alloy Steel, HSS(4241,4341,M2,M35) |
| Type | Hexagon Dies,Round Dies, Open Mouth Dies, Adjustable Die;Machine Die,Hand Die |
| Standard | DIN(Metric Size/UNC/UNF/BSW/BSF),GOST 9740, ANSI standard. |
| Hardness | Alloy steel: HRC56-57, HSS4241: HRC59-61, HSS4341: HRC63-64, HSS 6542: 64-65 |
| Thread type | Left hand,right hand |
| Coating | TIN,TICN,TIAIN |
| Measuring | Metric and Inch |
| Application | For making outer threads; Adjustment screw allows die to be set for different classes of fit. Can be used to cut new threads or clean up existing threads |
| Business Type | Manufacturer |
Sizes:
| Size | Outside | Item No. |
| M3×0.5 | 19×5mm | FT1304030050 |
| M3.5×0.6 | 19×5mm | FT1304035060 |
| M4×0.7 | 19×5mm | FT1304040070 |
| M4.5×0.75 | 19×7mm | FT1304045075 |
| M5×0.8 | 19×7mm | FT1304050080 |
| M6×1 | 19×7mm | FT1304060100 |
| M7×1 | 22×9mm | FT1304070100 |
| M8×1.25 | 22×9mm | FT1304080125 |
| M9×1.25 | 22×9mm | FT1304090125 |
| M10×1.5 | 27×11mm | FT1304100150 |
| M11×1.5 | 27×11mm | FT1304110150 |
| M12×1.75 | 36×14mm | FT1304120175 |
| M14×2 | 36×14mm | FT1304140200 |
| M16×2 | 41×18mm | FT1304160200 |
| M18×2.5 | 41×18mm | FT1304180250 |
| M20×2.5 | 41×18mm | FT1304200250 |
| M22×2.5 | 50×22mm | FT1304220250 |
| M24×3 | 50×22mm | FT1304240300 |
| M27×3 | 60×25mm | FT1304270300 |
| M30×3.5 | 60×25mm | FT1304300350 |
| M33×3.5 | 60×25mm | FT1304330350 |
| M36×4 | 60×25mm | FT1304360400 |
| M39×4 | 70×30mm | FT1304390400 |
| M42×4.5 | 70×30mm | FT1304420450 |
| M45×4.5 | 85×36mm | FT1304450450 |
| M48×5 | 85×36mm | FT1304480500 |
| M52×5 | 85×36mm | FT1304520500 |
| M3×0.35 | 19×5mm | FT1304030035 |
| M4×0.5 | 19×5mm | FT1304040050 |
| M5×0.5 | 19×5mm | FT1304050050 |
| M6×0.75 | 19×5mm | FT1304060075 |
| M7×0.75 | 22×9mm | FT1304070075 |
| M8×0.75 | 22×9mm | FT1304080075 |
| M8×1 | 22×9mm | FT1304080100 |
| M9×1 | 22×9mm | FT1304090100 |
| M10×1 | 27×11mm | FT1304100100 |
| M11×1 | 27×11mm | FT1304110100 |
| M12×1 | 36×10mm | FT1304120100 |
| M12×1.25 | 36×10mm | FT1304120125 |
| M12×1.5 | 36×10mm | FT1304120150 |
| M14×1 | 36×10mm | FT1304140100 |
| M14×1.25 | 36×10mm | FT1304140125 |
| M14×1.5 | 36×10mm | FT1304140150 |
| M16×1.5 | 41×14mm | FT1304160150 |
| M18×1.5 | 41×14mm | FT1304180150 |
| M18×2 | 41×14mm | FT1304180200 |
| M20×1.5 | 41×14mm | FT1304200150 |
| M20×2 | 41×14mm | FT1304200200 |
| M22×1.5 | 50×16mm | FT1304220150 |
| M22×2 | 50×16mm | FT1304220200 |
| M24×1.5 | 50×16mm | FT1304240150 |
| M24×2 | 50×16mm | FT1304240200 |
| M26×1.5 | 60×18mm | FT1304260150 |
| M27×1.5 | 60×18mm | FT1304270150 |
| M27×2 | 60×18mm | FT1304270200 |
| M28×1.5 | 60×18mm | FT1304280150 |
| M30×1.5 | 60×18mm | FT1304300150 |
| M30×2 | 60×18mm | FT1304300200 |
| M32×1.5 | 60×18mm | FT1304320150 |
| M33×1.5 | 60×18mm | FT1304330150 |
| M33×2 | 60×18mm | FT1304330200 |
| M35×1.5 | 60×18mm | FT1304350150 |
| M36×1.5 | 60×18mm | FT1304360150 |
| M36×2 | 60×18mm | FT1304360200 |
| M36×3 | 60×25mm | FT1304360300 |
| M38×1.5 | 70×20mm | FT1304380150 |
| M39×1.5 | 70×20mm | FT1304390150 |
| M39×2 | 70×20mm | FT1304390200 |
| M39×3 | 70×20mm | FT1304390300 |
| M40×1.5 | 70×20mm | FT1304400150 |
| M40×2 | 70×20mm | FT1304400200 |
| M42×1.5 | 70×20mm | FT1304420150 |
| M42×2 | 70×20mm | FT1304420200 |
| M42×3 | 70×30mm | FT1304420300 |
| M45×1.5 | 85×22mm | FT1304450150 |
| M45×2 | 85×22mm | FT1304450200 |
| M45×3 | 85×36mm | FT1304450300 |
| M48×1.5 | 85×22mm | FT1304480150 |
| M48×2 | 85×22mm | FT1304480200 |
| M48×3 | 85×36mm | FT1304480300 |
| M50×1.5 | 85×22mm | FT1304500150 |
| M52×1.5 | 85×22mm | FT1304520150 |
| M52×2 | 85×22mm | FT1304520200 |
| M53×3 | 85×36mm | FT1304530300 |
| Size | Outside | Item No. |
| 1/8-40 | 19×5 | FT1304000001 |
| 3/16-24 | 19×7 | FT1304000002 |
| 1/4-20 | 19×7 | FT1304000003 |
| 5/16-18 | 22×9 | FT1304000004 |
| 3/8-16 | 27×11 | FT1304000005 |
| 7/16-14 | 27×11 | FT1304000006 |
| 1/2-12 | 36×14 | FT1304000007 |
| 9/16-12 | 36×14 | FT1304000008 |
| 5/8-11 | 41×18 | FT1304000009 |
| 3/4-10 | 41×18 | FT1304000010 |
| 7/8-9 | 50×22 | FT1304000011 |
| 1"-8 | 50×22 | FT1304000012 |
| 1-1/8-7 | 60×25 | FT1304000013 |
| 1-1/4-7 | 60×25 | FT1304000014 |
| 1-3/8-6 | 60×25 | FT1304000015 |
| 1-1/2-6 | 70×30 | FT1304000016 |
| 1-5/8-5 | 70×30 | FT1304000017 |
| 1-3/4/5 | 85×36 | FT1304000018 |
| 1-7/8-4-1/2 | 85×36 | FT1304000019 |
| 2"-4-1/2 | 85×36 | FT1304000020 |
| Size | Outside | Item No. |
| G1/8-28 | 27×11 | FT1304000021 |
| G1/4-19 | 36×10 | FT1304000022 |
| G3/8-19 | 41×14 | FT1304000023 |
| G1/2-14 | 41×14 | FT1304000024 |
| G5/8-14 | 50×16 | FT1304000025 |
| G3/4-14 | 50×16 | FT1304000026 |
| G7/8-14 | 60×18 | FT1304000027 |
| G1"-11 | 60×18 | FT1304000028 |
| G1-1/8-11 | 70×20 | FT1304000029 |
| G1-1/4-11 | 70×20 | FT1304000030 |
| G1-3/8-11 | 85×22 | FT1304000031 |
| G1-1/2-11 | 85×22 | FT1304000032 |
| G1-3/4-11 | 100×22 | FT1304000033 |
| G2"-11 | 100×22 | FT1304000034 |
