Basic Info.
Model NO.
DM4-HT005
Size
0.5-20mm
Hardness
HRC61-66
Sharpening
118&135 Degree Point
Process
Fully Ground
Surface Finish
White Finish
Flute
Straight Fluting Tap
Shank
Straight Shank Drills
Transport Package
5/10 Pieces in PVC Bag, PVC Box
Specification
0.5-20mm
Trademark
DM
Origin
Danyang City, Jiangsu Province, China
HS Code
8207509000
Production Capacity
100000PCS Per Month
Product Description

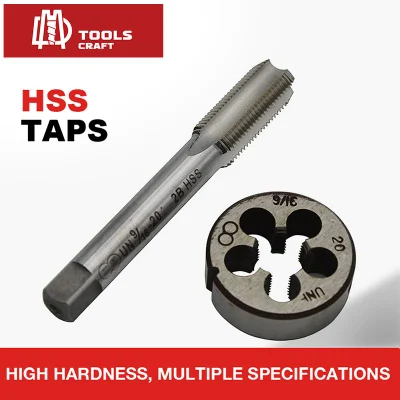

HSS Hand Tap
Available in serial and non serial sets of any prescribed specification
Coarse pitch taps in a set of 3 Pcs. Fine Pitch Taps in a set of 2 Pcs.
Material High Speed Steel M2
M35 High Speed Steel Taps manufactured on buyer's request
Ground Thread
Sizes available: 3 mm to 205 mm and 1/8" to 8"
Threads forms available: BSW, BSP, UNC, UNF, Metric, NPT, NGT, Special forms as per drawing
TiN Coating on buyer's request.
DIN352 Carbon Steel / Alloy Steel / HSS Hand Tap
1. Standard: DIN352 3 pieces set (1 Bottoming tap, 1 Plug tap and 1 taper tap)
2. Material: Carbon Steel, Alloy Steel, HSS 4241(W4Mo2Cr4V), HSS 4341(W4Mo3Cr4V),
3. Hardness: Alloy steel: HRC56-57, HSS4241: HRC59-61, HSS4341: HRC63-64
4. Surface finish: Bright finishing; Tin-coated; Or customization
5. Application: Used for tapping through blind holes. Suitable for unalloyed and low-alloyed steel with resistance 900 N/mm2, cast, NE-metals, zinc, magnesium alloys and thermoplastic metals.
6. Thread standard: Metric size/BSW
7. Size: M1*0.25 to M68*6.0 1/16-60 to 2"-7
8. Form: Straight Flute, Spiral Point, Spiral Flute
9. Packing: Plastic Box + Inner Box + Carton(normal).
10. Delivery time: 50-60 days after the order is confirmed.
| M1.0X0.25 | M1.1X0.25 | M1.2X0.25 | M1.4X0.30 | M1.6X0.35 |
| M1.7X0.35 | M1.8X0.35 | M2.0X0.40 | M2.2X0.45 | M2.3X0.40 |
| M2.5X0.45 | M2.6X0.45 | M3.0X0.50 | M3.5X0.60 | M4.0X0.70 |
| M4.5X0.75 | M5.0X0.80 | M6.0X1.00 | M7.0X1.00 | M8.0X1.25 |
| M9.0X1.25 | M10X1.50 | M11X1.50 | M12X1.75 | M14X2.00 |
| M16X2.00 | M18X2.50 | M20X2.50 | M22X2.50 | M24X3.00 |
| M27X3.00 | M30X3.50 | M33X3.50 | M36X4.00 | M39X4.00 |
| M42X4.50 | M45X4.50 | M48X5.00 | M52X5.00 | M56X5.50 |
| M60X5.50 | M64X6.00 | M68X6.00 |
We can supply size from 2mm-36mm.
Surface treatment is available: Galvanized finish, Nickel Plated, Chrome coated, Black finish, Sandblasted finish.
Material can be selected according to customers' requirements.
| Product name | HSS Hand Taps |
| Item no. | DM4-HT001 |
| Size | from 2mm-36mm |
| Surface treatment | Galvanized finish, Nickel Plated, Chrome coated, Black finish, Sandblasted finish. |
| Material | can be selected according to customers' requirements. |
| Inch size | available |
Packing Information
A. Plastic pipe packing
B. Metal display box packing
C. Plastic tube packing
D. Plastic display box packing
E. 1pc / PVC bag, then 1pc / inner paper box
F. Grey metal display box packing
G. Metal box for drill bits set packing
H. Wooden box for drill set packing
J.5/10 pieces packed in PVC bag, then in white paper box, then in carton
SHIPPING
2. By Air or by Sea for batch goods,from airport(seaport) to airport(seaport).
3. Customers specifying freight forwarders or not.
4. Production Time: 3- 7days for samples; 2-3.5 weeks for batch goods
COMPANY PROFILE
Our company
1) We're a direct manufacturer and 100% export worldwide (USA, Israel, Jordan, Iran, Thailand, Duabai, South Africa, Kenya, Egypt, Australia, UK, Spain, Brazil, etc)
2) We have around 15 years of producing experience.

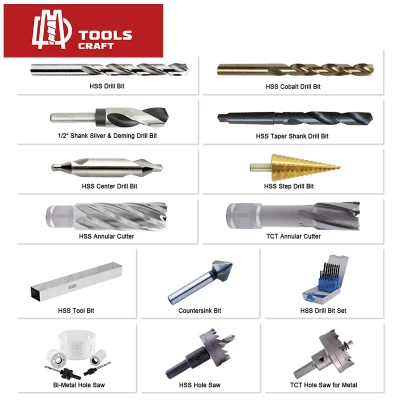

3) Our drill product: HSS drill bits, masonry drill, SDS drill, glass&tile drill, step drill, wood flat drill, wood auger bit, wood brad drill, center drill, left hand drill, drill set etc.
