Basic Info.
Model NO.
M3X0.5
Application
Motorize, Manual
Customized
Non-Customized
Tolerance
6h
Surface Finishing
Bright Finished
Transport Package
Plastic Box
Specification
M1-M68
Trademark
STARRY
Origin
Yangzhou
HS Code
82074000
Production Capacity
300000PCS Per Mouth
Product Description

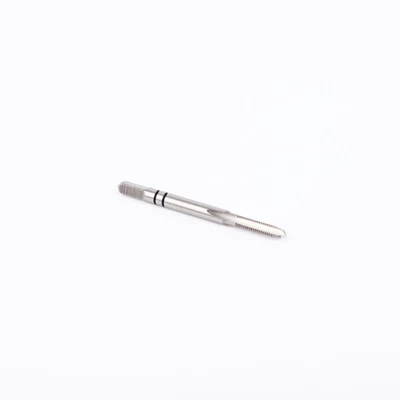

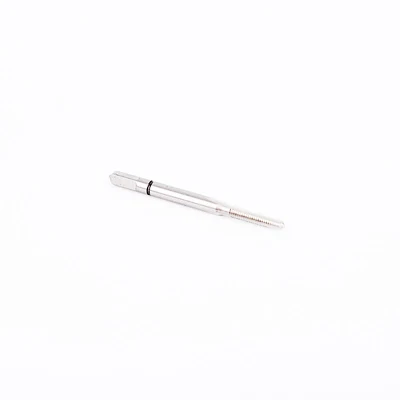

DIN352 hand taps Manufactured from high-speed steel with a necked design.straight flutes improve chip-lifting action and span wider spaces in the hole while tapping.Achieve excellent results in deep blind holes. Taper chamfer taps have 6to 7 pitches.Plug chamfer taps have 3 to 5 pitches; bottoming chamfer taps have 1 to 2 pitches.
Material: High Speed Steel -M2
Package: We could make customerised package, and normally our package is 2pcs packed into a plastic case.
Delivery date: Normally for customer brand new orders, the lead time is around 40days, it's ok to check case by case.
Package: We could make customerised package, and normally our package is 2pcs packed into a plastic case.
Delivery date: Normally for customer brand new orders, the lead time is around 40days, it's ok to check case by case.
| Procuct Name | 3pc DIN352 hand taps set(GERMANY QUALITY) |
| Flute Type | Straight Flute |
| Standard | DIN352 |
| Size | M3X0.5 |
| Total Length | 40 |
| Flute Length | 11 |
| Thread Type | MF |
| Material | HSS-M2 |
| Process | Fully Ground |
| Shank Type | Square Shank |
| Surface Finish | Bright Finish |
| Package | 3Piece (one set) in One Plastic box |
| Size | Overall Length | Thread Length |
| M1 x 0.25 | 32 | 5.5 |
| M1.1 x 0.25 | 32 | 5.5 |
| M1.2 x 0.25 | 32 | 5.5 |
| M1.4 x 0.3 | 32 | 7 |
| M1.6 x 0.35 | 32 | 8 |
| M1.7 x 0.35 | 32 | 8 |
| M1.8 x 0.35 | 32 | 8 |
| M2 x 0.4 | 36 | 8 |
| M2.2 x 0.45 | 36 | 9 |
| M2.3 x 0.45 | 36 | 9 |
| M2.5 x 0.45 | 40 | 9 |
| M2.6 x 0.45 | 40 | 9 |
| M3 x 0.5 | 40 | 11 |
| M3.5 x 0.6 | 45 | 13 |
| M4 x 0.7 | 45 | 13 |
| M4.5 x 0.75 | 50 | 16 |
| M5 x 0.8 | 50 | 16 |
| M6 x 1 | 50 | 19 |
| M7 x 1 | 50 | 19 |
| M8 x 1.25 | 56 | 22 |
| M9 x 1.25 | 63 | 22 |
| M10 x 1.5 | 70 | 24 |
| M11 x 1.5 | 70 | 24 |
| M12 x 1.75 | 75 | 29 |
| M14 x 2 | 80 | 30 |
| M16 x 2 | 80 | 32 |
| M18 x 2.5 | 95 | 40 |
| M20 x 2.5 | 95 | 40 |
| M22 X 2.5 | 100 | 40 |
| M24 x 3 | 110 | 50 |
| M27 x 3 | 110 | 50 |
| M30 x 3.5 | 125 | 56 |
| M33 x 3.5 | 125 | 56 |
| M36 x 4 | 150 | 63 |
| M39 x 4 | 150 | 63 |
| M42 x 4.5 | 150 | 63 |
| M45 x 4.5 | 160 | 70 |
| M48 x 5 | 180 | 75 |
| M52 x 5 | 180 | 75 |
| M56 x 5.5 | 200 | 85 |
| M60 x 5.5 | 200 | 85 |
| M64 x 6 | 220 | 90 |
| M68 x 6 | 220 | 90 |
1. Package:Plastic box,
2. Delivery:35 Days after your deposite
3. Shipping:By sea,By air,if small order,we can provide the Express.
Why choose us:
1. Experience : We are a supplier of many brands in Germany,usa,Russia,Brazil and so on . So we have the confidence to provide you with the best service.
2. Quality Control : Quality Control System from STARRY Germany ensure our STARRY Factory's products and service QUALITY which have strict processing quality Control for every step.
3. Service : We offer OEM&ODM service.and we accept trial order. If you find any problem. we'll find the suitable solution.
4. Product : We have confidence in the quality of our products.and the product prices are also competitive.
