Basic Info.
Model NO.
M10X1.5
Brand
Starry
Standard
Metric
Application for Machine Tool
Drilling
Pieces
1
Application
Motorize, Manual
Customized
Non-Customized
Tolerance
6h
Surface Finishing
Nutriding Finished
Teeth Angle
60°
Size Range
M3-M36 and up M/Mf/Unc/Unf/Bsw
Process
Fully Ground
Type
Internal Threading
Transport Package
Plastic Box
Specification
M2-10
Trademark
STARRY
Origin
Yangzhou
HS Code
82074000
Production Capacity
300000PCS Per Mouth
Packaging & Delivery
Package Size
10.00cm * 8.00cm * 2.00cm
Package Gross Weight
0.010kg
Product Description
Product Description
JiangSu XingRui Tools Co., Ltd. presents:
Made of high-quality high-speed steel HSS-M35 with nitride coating, our machine tap enhances abrasion performance, surface hardness, fatigue limit, and anti-erosion ability for tapping in various materials.
Features:
- Material: HSS-M35 with nitride coating
- Reinforced shank for through threads in aluminum, aluminum alloys, bronze, copper, nickel, and plastics
- Chamfer: Type C / 2 - 3 threads
- Thread: Metric, DIN ISO 13
- Flanks: Relief-ground
To cut an internal thread effectively, follow the steps of drilling a core hole, placing tapered counter bores, and screwing in the taps for precise thread creation.
Our Spiral Point machine tap, made of cobalt alloyed heavy-duty high-speed steel, is ideal for through threads and bottoming threads in various materials.
Benefits:
- Efficiently cuts threads in unalloyed and alloyed steels, stainless steel, malleable cast iron, and non-ferrous metals
- Single-operation thread cutting for convenience
| Product: | Machine Tap DIN371 DIN 376 |
| Brand: | OEM/ODM |
| Type: | Internal Threading |
| Standard: | DIN371/DIN376 |
| Size Range: | M3-M35 and up M/MF/UNC/UNF/BSW |
| Material: | HSS M2/HSS-E M35 /HSS-E PM |
| Finishing: | Nitride/TiN coating /TiCN coating/Bright Finished |
| Helix Angle: | 35° /Spiral Point 8° |
| Process: | Fully ground |
| Hardness: | 61-66HRC |
| Application: | for stainless steel ,high temperature alloy. High strength steel ,etc |
| Package: | plastic snap box /metal box/quadro box/customied package |
| Delivery time: | 1-7 days for standard item, OEM 45-60days |
Manufacturer: JiangSu XingRui Tools Co., Ltd.

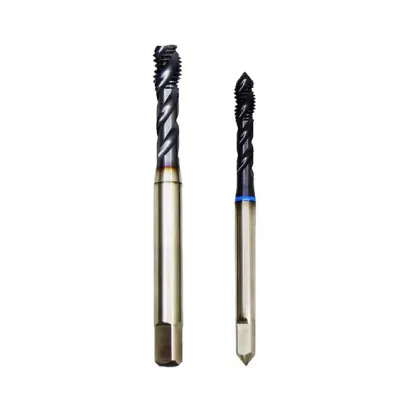

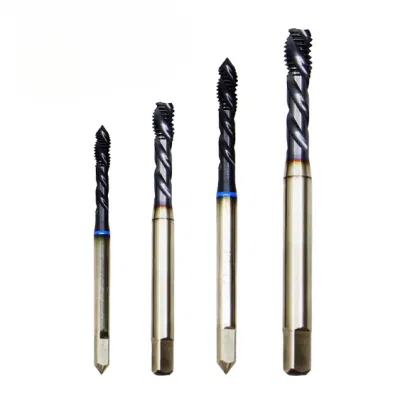

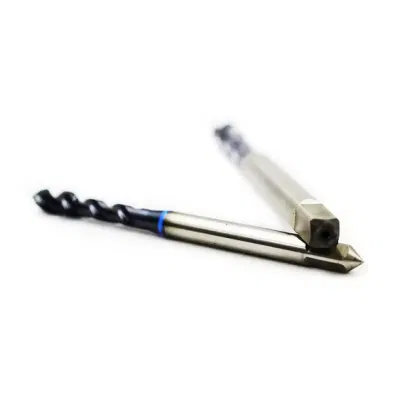

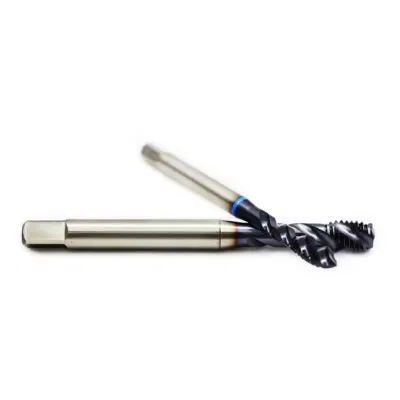

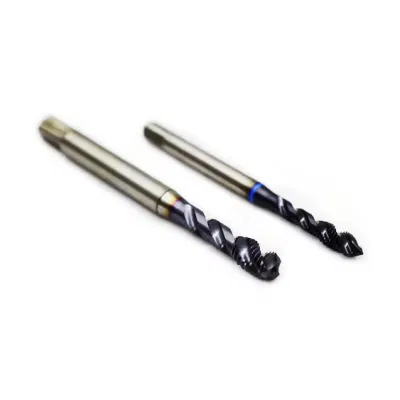

Product: DIN371 M3-M10 Spiral Flute Taps with TICN Coating
Attributes: Spiral Fluting Tap, High-speed Steel
Shipping: Sea, Air, Express for small orders
Delivery: 35 days after deposit
Packaging: Plastic box
Welcome to XingRui Tools Co., Ltd.
Why Choose Us:
- Experience: With a strong presence in Germany, USA, Russia, Brazil, and more, we are confident in providing top-notch service.
- Quality Control: Our products undergo rigorous quality control processes by STARRY Germany, ensuring superior quality at every step.
- Service: We offer OEM & ODM services, accept trial orders, and provide prompt solutions to any issues you may encounter.
- Product: Our products are of high quality and competitively priced, giving you the best value for your money.
