Basic Info.
Model NO.
X20-NRTM4
Brand
Kaikun
Standard
Metric
Application for Machine Tool
Drilling
Pieces
10
Application
Motorize, Manual
Customized
Non-Customized
Thread Gauge
6h/6hx
Coating
Ticn-Al/Yc-200
Coolant Type
N/a/Olihole Z/Olihole C
Chamfer Length
1.5p-4p
Tap Material
Cpm/Cps
Thread Type
M /Unc/Mf /Unf
Transport Package
Tapspiral Fluting
Specification
M2-M16
Trademark
KAIKUN
Origin
China
HS Code
82074000
Production Capacity
100000
Packaging & Delivery
Package Size
24.00cm * 13.00cm * 13.00cm
Package Gross Weight
2.000kg
Product Description

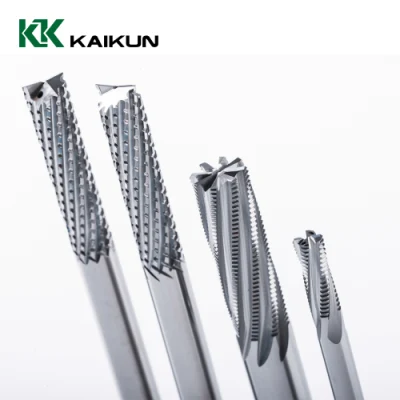

| Spiral Flute Screw Thread Taps tool | |||||||||||
| Carbon steel and alloy steel tap series | |||||||||||
| Type | X20-NRT | X20-SFT | X21-NRT | JX10-NRT | JX10-LH-NRT | JX10-L-NRT | DS-SFT | SFT45 | HHS-POT | X20-RLT | POT |
| Tap material | CPM | CPM | CPM | CPS | CPS | CPS | CPS | CPS | CPS | CPM | CPS |
| Thread type | M | M UNC | M | M UNC | M UNC | M UNC | M | M | M | M | M UNC |
| MF | MF UNF | MF | MF UNF | MF UNF | MF UNF | MF | MF | MF | MF UNF | ||
| JIS/DIN | DIN | DIN | DIN | JIS | JIS | JIS | JIS | JIS | JIS | DIN | JIS/DIN |
| Size | M4-M30 | M4-M16 | M4-M30 | M1-M16 | M1-M16 | M2-M16 | M4-M14 | M3-M16 | M1.6-M3 | M6-M16 | M1-M16 |
| N0.8-5/8 | N0.0-5/8 | N0.0-5/8 | NO.4-5/8 | N0.6-5/8 | N0.0-5/8 | ||||||
| Thread gauge | 6HX | 6HX | 6HX | 6H | 6H | 6H | 6H | 6H | 6H | 6HX | 6H/6HX |
| Chamfer length | 1.5P-4P | 2.5P | 1.5P-4P | 1.5P-4P | 1.5P-4P | 1.5P-4P | 3.5P | 1.5P-3.5P | 5P | 7.5P | 5P |
| Coating | TICN-AL | TICN-AL | TICN-AL | TICN-AL | TICN-AL | TICN-AL | TICN-AL | TICN-AL | YC-200 | TICN-AL | TICN-AL |
| Coolant type | N/A | N/A | Olihole Z | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Olihole C | |||||||||||
