Basic Info.
Model NO.
metric
Type
Cutter
Work Type
Thread Machining
Transport Package
Plastic Box
Specification
M3 to M100
Trademark
stc
Origin
Zhenjiang
HS Code
82074000
Production Capacity
10000000
Product Description

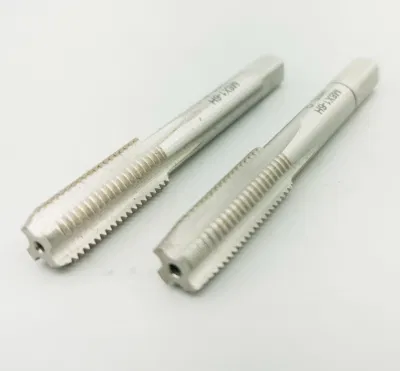

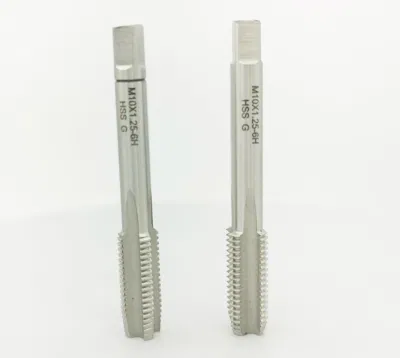

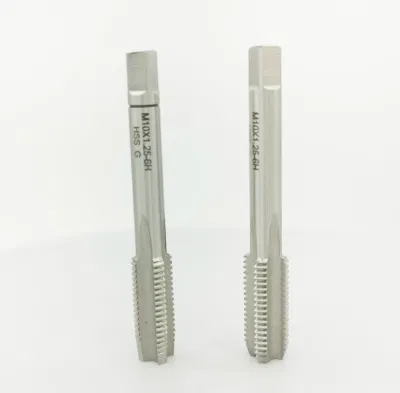

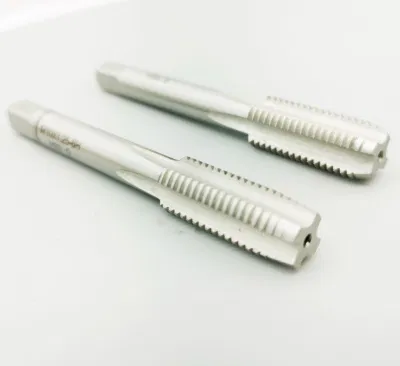

Our hand taps are made from high quality high speed steel.
Regular standard DIN 2181. Other standard available on request.
Single piece for throuhg hole, blind holes.
2 PCS sets and 3 PCS sets available on request.
Size | Pitch | Total Length | Thread Length | Size | Pitch | Total Length | Thread Length | Size | Pitch | Total Length | Thread Length | ||
| M2x0.25 | 0.25 | 36 | 8 | M12x1 | 1 | 70 | 22 | M24x2 | 2 | 90 | 22 | ||
| M2.2x0.25 | 0.25 | 36 | 9 | M12x1.25 | 1.25 | 70 | 22 | M26x1.5 | 1.5 | 90 | 22 | ||
| M2.3x0.25 | 0.25 | 36 | 9 | M12x1.5 | 1.5 | 70 | 22 | M27x1.5 | 1.5 | 90 | 22 | ||
| M2.5x0.35 | 0.35 | 40 | 9 | M14x1 | 1 | 70 | 22 | M27x2 | 2 | 90 | 22 | ||
| M2.6x0.35 | 0.35 | 40 | 9 | M14x1.25 | 1.25 | 70 | 22 | M28x1.5 | 1.5 | 90 | 22 | ||
| M3x0.35 | 0.35 | 40 | 9 | M14x1.5 | 1.5 | 70 | 22 | M30x1 | 1 | 90 | 22 | ||
| M3.5x0.35 | 0.35 | 45 | 10 | M15x1 | 1 | 70 | 22 | M30x1.5 | 1.5 | 90 | 22 | ||
| M4x0.35 | 0.35 | 45 | 10 | M15x1.5 | 1.5 | 70 | 22 | M30x2 | 2 | 90 | 22 | ||
| M4x0.5 | 0.5 | 45 | 12 | M16x1 | 1 | 70 | 22 | M32x1.5 | 1.5 | 90 | 22 | ||
| M5x0.5 | 0.5 | 50 | 14 | M16x1.5 | 1.5 | 70 | 22 | M33x1.5 | 1.5 | 100 | 25 | ||
| M6x0.6 | 0.5 | 50 | 14 | M18x1 | 1 | 80 | 22 | M34x1.5 | 1.5 | 100 | 25 | ||
| M6x0.75 | 0.75 | 50 | 14 | M18x1.5 | 1.5 | 80 | 22 | M35x1.5 | 1.5 | 100 | 25 | ||
| M7x0.75 | 0.75 | 50 | 19 | M18x2 | 2 | 80 | 22 | M36x1.5 | 1.5 | 100 | 25 | ||
| M8x0.5 | 0.5 | 50 | 19 | M20x1 | 1 | 80 | 22 | M36x3 | 3 | 125 | 40 | ||
| M8x0.75 | 0.75 | 50 | 22 | M20x1.5 | 1.5 | 80 | 22 | M38x1.5 | 1.5 | 100 | 25 | ||
| M8x1 | 1 | 63 | 22 | M20x1 | 2 | 80 | 22 | M40x1.5 | 1.5 | 110 | 25 | ||
| M9x1 | 1 | 63 | 20 | M22x1 | 1 | 80 | 22 | M42x1.5 | 1.5 | 110 | 24 | ||
| M10x0.75 | 0.75 | 63 | 20 | M22x1.5 | 1.5 | 80 | 22 | M45x1.5 | 1.5 | 110 | 25 | ||
| M10x1 | 1 | 70 | 24 | M22x1 | 2 | 80 | 22 | M48x1.5 | 1.5 | 140 | 40 | ||
| M10x1.25 | 1.25 | 63 | 22 | M24x1 | 1 | 90 | 22 | M52x1.5 | 1.5 | 140 | 40 | ||
| M11x1 | 1 | 70 | 22 | M24x1.5 | 1.5 | 90 | 22 |
