Basic Info.
Model NO.
HH-11/15/20/16C/18C/20C/22C/25C
Shaping Mode
Compression
Hole Type
Round Mould
Cavity
Single-cavity
Surface Treatment
Polish
Application
Electronic
Warranty
12 Months
Usage
Cable Drawing
Model Number
Hh-11/15/20/16c/18c/20c/22c/25c
Condition
New
Grain Size
Ultra Fine, Extra Fine
Purity
>99.5%
Standard
JIS, GB, DIN, BS, ASTM, AISI
Tolerance
+/-0.001mm
Transport Package
Small Box Inside a Carton
Specification
JIS, GB, DIN, BS, ASTM, AISI
Trademark
HOOHA
Origin
Dongguan China
HS Code
820900900
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
5.00cm * 5.00cm * 5.00cm
Package Gross Weight
0.300kg
Product Description

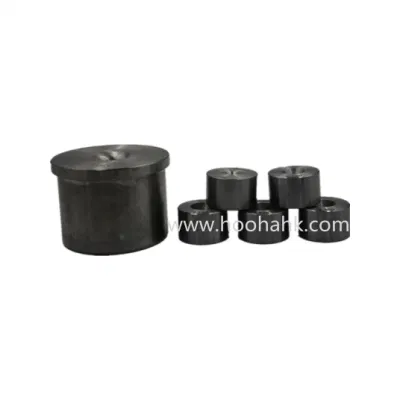

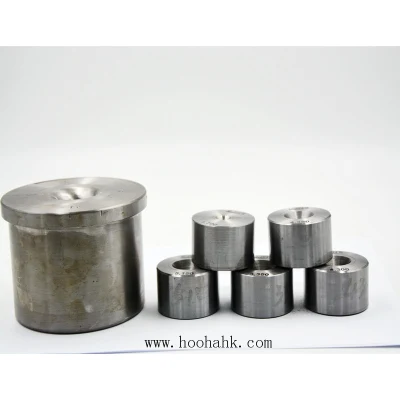

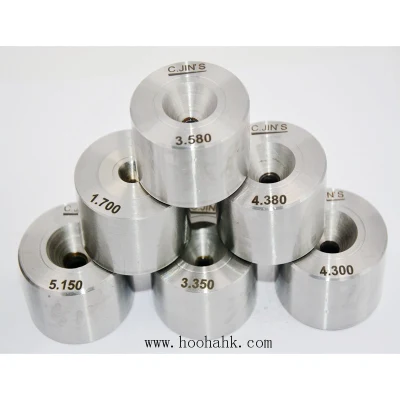

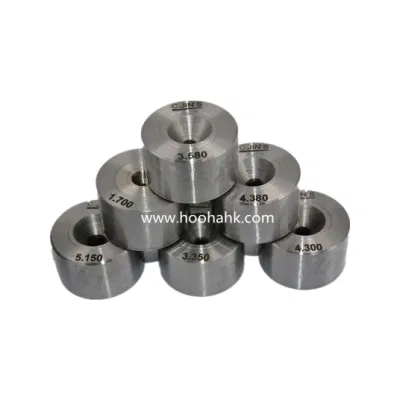

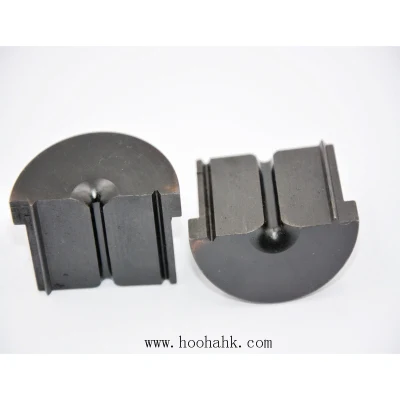

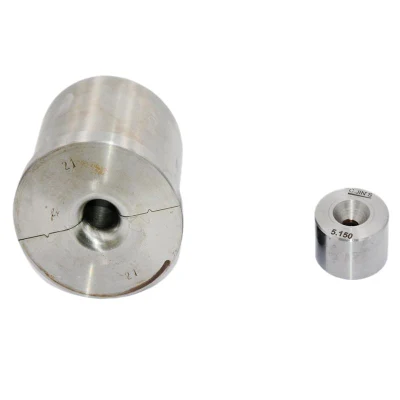

Diamond Wire Drawing Dies/Mould Carbide Split Die in Drawing Machine
Video Link on YouTube: https://hoohaco.en.made-in-china.com
Application:
Wire drawing molds are widely used, such as electronic devices, radar, television, instruments and aerospace and other high-precision wire, as well as commonly used tungsten wire, molybdenum wire, stainless steel wire. Wire cable wire and all kinds of alloy wire are drawn by diamond drawing die. The diamond drawing die has extremely strong wear resistance and long service life because of the use of natural diamond as raw material.
Adv antage :
1. Superior strength, toughness and high wear resistance with long working life .
2. 100% virgin tungsten carbide materials
3: ISO 9001 quality control system
4: Professional suggestion on products
5: Is very wide, mainly for drawing bar, wire, wire, pipes and other linear objects difficult to process for steel, copper,
tungsten, molybdenum and other metals and alloys drawing processing;
Mold Specifications:
| Grades | Density g/cm3 | T.R.S MPa | Hardness HRA | Performance & application recommended |
| HH11 | 14.4 | 2600 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| HH15 | 14.0 | 2800 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress. |
| HH20 | 13.5 | 3200 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| HH16C | 13.9 | 2900 | 85.5 | Impact resistance forging dies. |
| HH18C | 13.7 | 3100 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| HH20C | 13.5 | 3300 | 83.5 | Dies for wear resistant or impact resistant application. |
| HH22C | 13.3 | 3500 | 83.0 | Nut forming dies and high impact resistance forging dies. |
| HH25C | 13.1 | 3600 | 82.5 | Stainless bolt header dies and rollers. |
Drawing Mold R & D:
After Service:
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online
Contact Information:
Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan City, Guangdong Province,China
If the machine is not suitable for your wire spec., please contact me.
Why Choose Us?
- We are the cable equipment manufacturer
- Professional engineer,long term to research and development for to cable equipment .
- High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
- Our machine use the international qualified brand,like Siemens ,Omron,NSK,LG etc.
- Install and training service. Guarantee overseas install and cable manufacture training experience.
- Technical support and spare parts service.
- Every product with be with tailor-made sketch and drawing.
- Products can be engineered according to different configuration and plastic materials.
Professional and Strong Manufacture and Sales Team:
| HOOHA R&D TEAM | ||||
| Name | Position | working experience | Main research | successful project |
| zanyang Xie | General engineer | 10 years | Drawing and designer | power cable machine |
| xiaohua Hu | Vice general engineer | 8 years | Designer | cate5 cable machine |
| jingxin Liu | cable technology engineer | 15 years | cable making designer | fluoroplastic cable machine |
| weihua Li | electrical engineer | 7 years | electrical research | over seas machine install |
| kangyou Wu | produce manager | 6 years | product produce | car cable machine |
| Jack | sells manager | 5 years | export service | 3 times overseas after service |
