Basic Info.
Model NO.
TD-010
Surface Treatment
Polish
Application
Hardware
Certification
ISO, CE
Warranty
1 Year
Customized
Customized
Material to Be Drawn
High Speed Steel
Blank Available
CVD, PVD
Imported Blank
Compax/ Sumitomo
Local Blanks
Available
Processing Technology
Heat Treatment,Polishing,Plating Titanium,Letterin
Head Type
Hex, Roundie,Square ,Torx ,and Other Special Shape
Size
Customized
Transport Package
Cartons
Specification
Customized
Trademark
Customized logo
Origin
China
HS Code
8207300090
Production Capacity
30000 PCS/ Month
Product Description

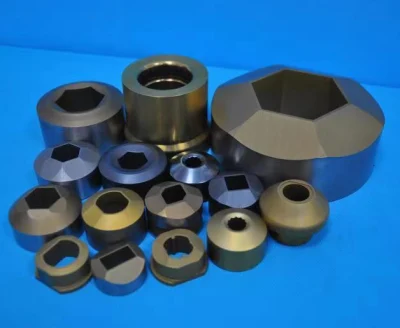

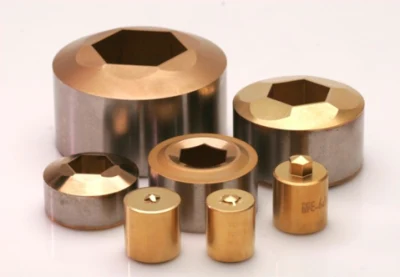

Trim die are made from High Speed Steel with many types of coating, such as CVD, PVD-TiN/TiAlN ect. for different applications. The high precision dies (tolerance of AF less than 0.02mm) can be used for Automotive field and Aerospace field, and trim the stainless steel bolt too. The shape of inner hole can be Hex, Round, Oct.,Square or special shape what the customer needed. The performance of tool life will be excellent.
OD, Φ25~Φ125mm
AF(Hex), 3-60mm
Tolerance of Key dimensions
AF+0.02mm
OD+0.01mm
OAL+0.02mm
Main Material
M2/M4/M35/M42/ASP30/ASP60
Main Coating
CVD
PVD-TiN
PVD-TiAlN
Application
General Industry
Automotive
Aerospace
