Basic Info.
Model NO.
ALL size
Alveolus Dentalis
Spiral
Handle Type
Straight Shank
Usage Mode
Machine Reamer
Material
Tungsten Steel
Type
Cylindrical Reamer
Length
Taper-Length
Standar
CQC&ISO
Quality
Top Quality in China
Cutting Form
Flat,Radius
Flut
Straight & Spiral
Chemical Compo
6%-12% Co-Wc
HRC
45-65 HRC
Transport Package
Box
Specification
D2.3.4.5.6mm
Trademark
WAHEYNAO
Origin
China
HS Code
8208101100
Production Capacity
6 Million PCS Annually
Packaging & Delivery
Package Size
20.00cm * 10.00cm * 6.00cm
Package Gross Weight
0.100kg
Product Description
| Standard | Standard |
| Raw Material | Cemented Carbide;Tungsten Steel |
| Hardness | 45/50/55/60/65 HRC |
| Flute | 2-6 Flutes |
| Flute Diameter | 4-20mm |
| Flute Length | 20-36mm |
| Total Length | 56-100mm |
| Coating Material | TiN,TiCN,TiSiN,AlTiN,AlCrN,NANO etc.(customized) |
| Suitable for | Wood, Titanium Alloy, Aluminum Alloy, Iron, Stainless Steel, Carbon Steel, Mould Steel, Tool Steel, and Heat-Treated Steel etc. |
| Item Code | Flute Diameter | Shank Diameter | Total Length | Flute Length | |
| No coating | Coating | D1(Unit: mm) | D2(Unit: mm) | L1(Unit: mm) | L2(Unit: mm) |
| WH-0400 | WHC-0400 | 4 | 3.5 | 56 | 20 |
| WH-0450 | WHC-0450 | 4.5 | 4 | 63 | 22 |
| WH-0500 | WHC-0500 | 5 | 4 | 63 | 22 |
| WH-0550 | WHC-0550 | 5.5 | 5 | 63 | 22 |
| WH-0600 | WHC-0600 | 6 | 5 | 63 | 22 |
| WH-0650 | WHC-0650 | 6.5 | 5 | 63 | 22 |
| WH-0700 | WHC-0700 | 7 | 6 | 71 | 25 |
| WH-0750 | WHC-0750 | 7.5 | 6 | 71 | 25 |
| WH-0800 | WHC-0800 | 8 | 6 | 71 | 25 |
| WH-0850 | WHC-0850 | 8.5 | 8 | 71 | 25 |
| WH-0900 | WHC-0900 | 9 | 8 | 71 | 25 |
| WH-0950 | WHC-0950 | 9.5 | 8 | 71 | 25 |
| WH-1000 | WHC-1000 | 10 | 8 | 71 | 25 |
| WH-1050 | WHC-1050 | 10.5 | 10 | 80 | 28 |
| WH-1100 | WHC-1100 | 11 | 10 | 80 | 28 |
| WH-1150 | WHC-1150 | 11.5 | 10 | 80 | 28 |
| WH-1200 | WHC-1200 | 12 | 10 | 80 | 28 |
| WH-1250 | WHC-1250 | 12.5 | 10 | 80 | 28 |
| WH-1300 | WHC-1300 | 13 | 10 | 80 | 28 |
| WH-1350 | WHC-1350 | 13.5 | 12.5 | 90 | 32 |
| WH-1400 | WHC-1400 | 14 | 12.5 | 90 | 32 |
| WH-1450 | WHC-1450 | 14.5 | 12.5 | 80 | 32 |
| WH-1500 | WHC-1500 | 15 | 12.5 | 90 | 32 |
| WH-1550 | WHC-1550 | 15.5 | 12.5 | 90 | 32 |
| WH-1600 | WHC-1600 | 16 | 12.5 | 90 | 32 |
| WH-1650 | WHC-1650 | 16.5 | 12.5 | 90 | 32 |
| WH-1700 | WHC-1700 | 17 | 16 | 90 | 32 |
| WH-1750 | WHC-1750 | 17.5 | 16 | 100 | 36 |
| WH-1800 | WHC-1800 | 18 | 16 | 100 | 36 |
| WH-1850 | WHC-1850 | 18.5 | 16 | 100 | 36 |
| WH-1900 | WHC-1900 | 19 | 16 | 100 | 36 |
| WH-1950 | WHC-1950 | 19.5 | 16 | 100 | 36 |
| WH-2000 | WHC-2000 | 20 | 16 | 100 | 36 |
Note:The above are standard parameters.We can provide non-standard customized services, please feel free to contact us.

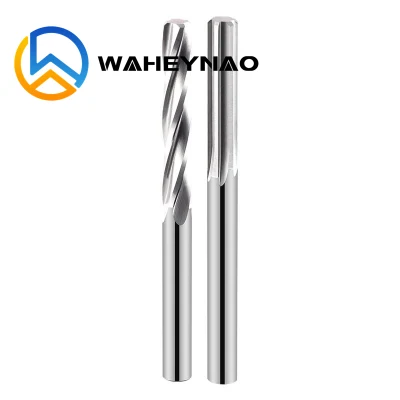

Hot sales tungsten carbide 4F Reamer for hard metal
1.Product Description

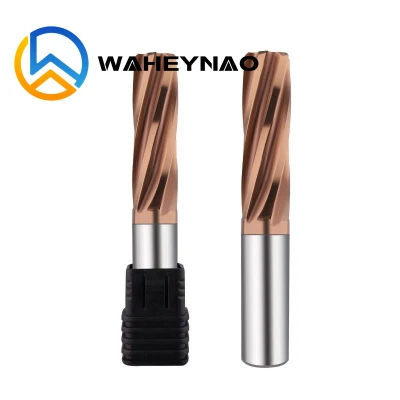

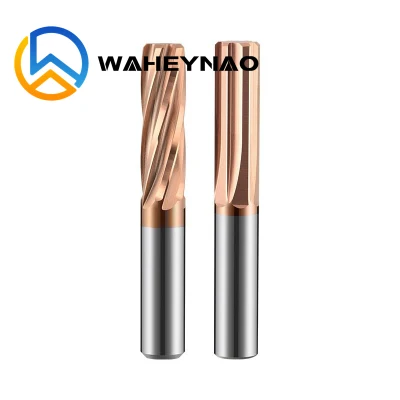

Tungsten Carbide Customized Helix Angle Reamers
2.Our advantages
Good material Grade: HRC45/55/60/65/68.
Workmanship: Made by the latest 5-Axis Grinder Machine imported from Taiwan. Compared with other end mill factories, our products are more sharp and have longer life. We will supply you with high precision standard and non-standard cutters.
Competitive price and good quality: We promise that we only quote a reasonable price, in addition, the quality must make you satisfied.
Short delivery time: We have enough CNC machine imported from abroad, so we can shipment efficiently.
Types: We have square end mill, ball nose end mill, corner radius end mill and aluminum alloy end mill.
Size: Diameter 0.2mm-20mm standard and non-standard 2-4 flutes, deep groove, round head, end angle R, oblique flute (tapered), long flute end mill.
3.Cutting speed
FAQ: - who are we?
We are based in Hunan, China, start from 2022,sell to Western Europe(15.00%),Eastern Europe(15.00%),Southern Europe(15.00%),Northern Europe(15.00%),South America(10.00%),Central America(5.00%),Southeast Asia(5.00%),North America(5.00%),Mid East(5.00%),South Asia(3.00%),Africa(3.00%),Eastern Asia(3.00%),Domestic Market(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PCD Drill,PCD end mill,solid carbide end mill,cemented carbide insert,CBN insert
4. why should you buy from us not from other suppliers?
our main products: Metal cutting tools: carbide cutting insert, carbide end mill carbide drill carbide taps carbide reamers carbide saw blade Wood working tool: wood cutting insert carbide drill bit saw blade and planer reversible cutting insert
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Russian
More information, please kindly contact us.
