Basic Info.
Product Name

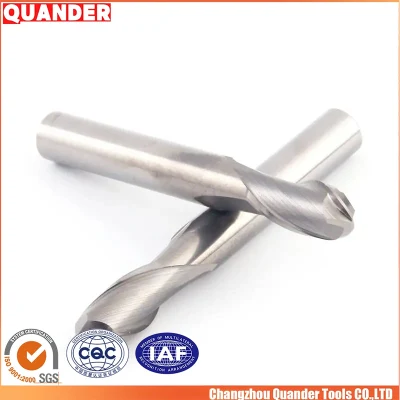

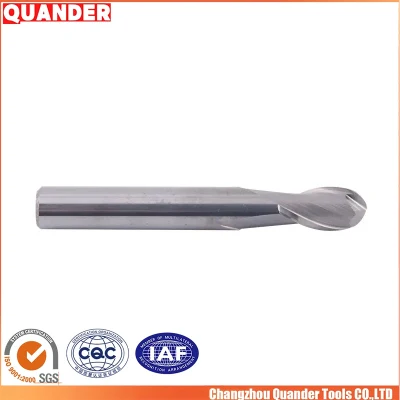

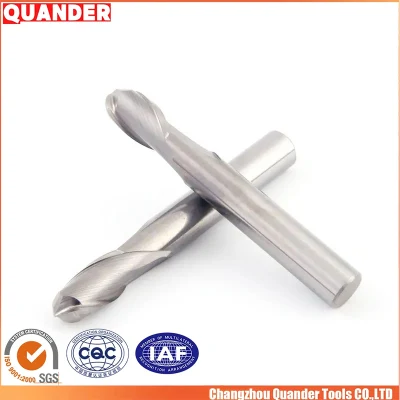

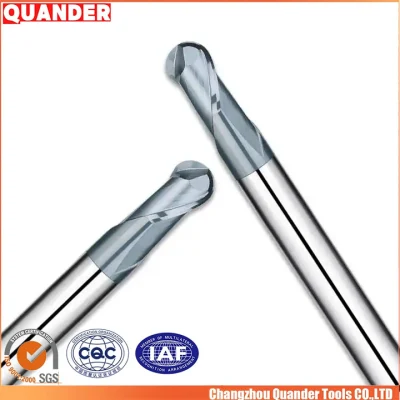

Carbide 4 Flutes Ball Nose End Mill for Aluminium
Precision
High Precision
Machine Type
CNC Milling Machine
Certification
SGS,CE
Processing Type
Metal
Controlling Mode
CNC
Model Number
HRC65
Features
High Hardness, High Speed
Flute
4
Co
9%
Suitable for
Alloy Steel, Die Steel, Mold Steel, Hardened Steel
Transport Package
Customized
Specification
Customized
Trademark
Quander Tools
Origin
Changzhou, China
Production Capacity
50000000PCS/Month
Product Description
| Specification | Diameter D1 | Blade length L1 | Shank diameter D2 | Overall length L2 |
| D3*9*50L | 3 | 9 | / | 50 |
| D3*12*75L | 3 | 12 | / | 75 |
| D3*15*100L | 3 | 15 | / | 100 |
| Dl*3*D4*50L | 1 | 3 | 4 | 50 |
| D1.5*4.5*D4*50L | 1.5 | 4.5 | 4 | 50 |
| D2*6*D4*50L | 2 | 6 | 4 | 50 |
| D2.5*7.5*D4*50L | 2.5 | 7.5 | 4 | 50 |
| D3*9*D4*50L | 3 | 9 | 4 | 50 |
| D3.5*10*D4*50L | 3.5 | 10 | 4 | 50 |
| D4*10*50L | 4 | 10 | / | 50 |
| D4*16*75L | 4 | 16 | / | 75 |
| D4*20*100L | 4 | 20 | / | 100 |
| D5*13*50L | 5 | 13 | / | 50 |
| D5*20*75L | 5 | 20 | / | 75 |
| D5*25*100L | 5 | 20 | / | 100 |
| D5*13*D6*50L | 5 | 13 | 6 | 50 |
| D6*15*50L | 6 | 15 | / | 50 |
| D6*24*75L | 6 | 24 | / | 75 |
| D6*30*100L | 6 | 30 | / | 100 |
| D8*20*60L | 8 | 20 | / | 60 |
| D8*30*75L | 8 | 30 | / | 75 |
| D8*35*100L | 8 | 35 | / | 100 |
| D10*25*75L | 10 | 35 | / | 75 |
| D10*40*100L | 10 | 10 | / | 100 |
| D12*30*75L | 12 | 30 | / | 75 |
| D12*45*100L | 12 | 45 | / | 100 |
| D14*45*100L | 14 | 45 | / | 100 |
| D16*45*100L | 16 | 45 | / | 100 |
| D18*45*100L | 18 | 45 | / | 100 |
| D20*45*100L | 20 | 45 | / | 100 |
| D6*45*150L | 6 | 45 | / | 150 |
| D8*50*150L | 8 | 50 | / | 150 |
| D10*60*150L | 10 | 60 | / | 150 |
| D10*60*151L | 10 | 60 | / | 151 |
| D14*70*150L | 14 | 70 | / | 150 |
| D16*75*150L | 16 | 75 | / | 150 |
| D18*75*150L | 18 | 75 | / | 150 |
| D20*75*150L | 20 | 75 | / | 150 |
With the care and precision of a sculptor from company founded to now, by the way of changing the weaving technics constanly, get the satisfying products finally. Consciously explore the mysteries of industrial manufacturing is all the staff always adhere to the principle.
In the first day of company was born, the only market positioning is high-end solid carbide unstandard cutting tools. With the professional, high precision, we prefer more precision, longer life, and diversity customization cutting tools for our customers.
Our main products cover drill bit, end mill, reamer, boring cutter, welding cutter, saw blade end mill, step cutting tools, screw taps these standard and unstandard cutting tools.
We got EWC, TUV multiple certifications, our company has the modernized standard Production Workshop, and passed the ISO 9001quanlity system authentication and the QS authentication.
The quality of products is the core competitiveness of the company, so we focus on the control system, from pick the tungsten blanks to design of the product, and CNC grinding programs, every cycle we will impose severe regulations.
In the production of manufacture cutting tools, we priority use the Germany Konrad blanks, Sandvik blanks, and GESAC blanks to do the first working procedure. After many years of accumulation and innovation, and now I have been Secretary of the products in the mature period of stability. By the software using side, we choose the ANCA(3D cimulator) system to help us build the model of products, and every kind of item should be stick with a engineering flow sheer, to make sure no mistake happen.
Before deliver to customer, we will use Zollor G 3 surveymeter (German Surveymeter)to detect the products first, when it passed the test will be send to package department to package and make arrangement for the delivery.
Foxcom Samsung and many Troop supplier was our clients for least 9years, we are looking for opportunity with you from each side of the earth, corporate with us and get the bright future.
