Product Description

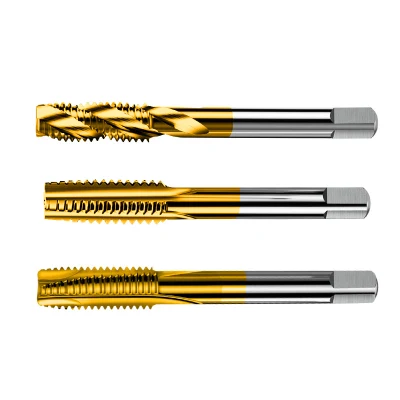

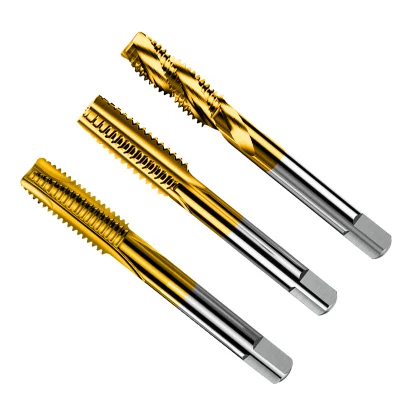

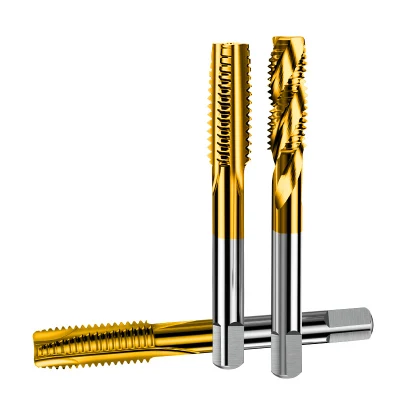

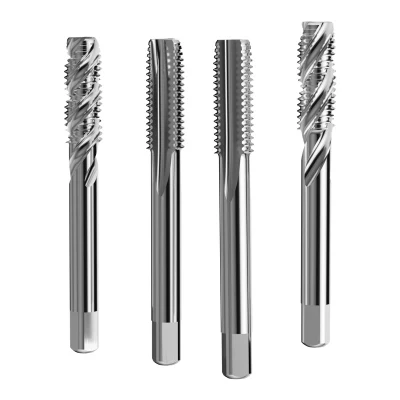

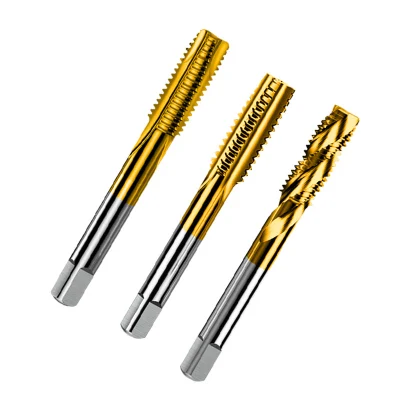

Details of HSS Machine Taps:
- High hardness, fast cutting, wear high temperature.
- Spiral groove is conducive to remove crumbs, not easily broken tap.
- Spiral Tap the crumbs into a spiral up chip evacuation, it is more suitable for the processing of blind holes and
- sticky materials processing.
Features of HSS Machine Taps:
1. High hardness, fast cutting, wear high temperature.
2. Spiral groove is conducive to remove crumbs, not easily broken tap.
3. Tap the crumbs into a spiral up chip evacuation, it is more suitable for the processing of blind holes and sticky materials processing.
Details of HSS Machine Taps:
- High hardness, fast cutting, wear high temperature.
- Spiral groove is conducive to remove crumbs, not easily broken tap.
- Spiral Tap the crumbs into a spiral up chip evacuation, it is more suitable for the processing of blind holes and
- sticky materials processing.
Features of HSS Machine Taps:
1. High hardness, fast cutting, wear high temperature.
2. Spiral groove is conducive to remove crumbs, not easily broken tap.
3. Tap the crumbs into a spiral up chip evacuation, it is more suitable for the processing of blind holes and sticky materials processing.
SIZE | OVERALL LENGTH | THREAD LENGTH |
M2*0.4 | 41 | 8.0 |
M2.2*0.45 | 44.5 | 9.5 |
M2.5*0.45 | 44.5 | 9.5 |
M3*0.5 | 48 | 11.0 |
M3.5*0.6 | 50 | 13.0 |
M4*0.7 | 53 | 13.0 |
M5*0.8 | 58 | 16.0 |
M5.5*0.9 | 62 | 17.0 |
M6*1 | 66 | 19.0 |
M7*1 | 66 | 19.0 |
M8*1.25 | 72 | 22.0 |
M9*1.25 | 72 | 22.0 |
M10*1.5 | 80 | 24.0 |
M11*1.5 | 85 | 25.0 |
M12*1.75 | 89 | 29.0 |
M14*2 | 95 | 30.0 |
M16*2 | 102 | 32.0 |
M18*2.5 | 112 | 37.0 |
M20*2.5 | 112 | 37.0 |
M22*2.5 | 118 | 38.0 |
M24*3 | 130 | 45.0 |
M27*3 | 135 | 45.0 |
M30*3.5 | 138 | 45.0 |
M33*3.5 | 151 | 51.0 |
M36*4 | 162 | 57.0 |
M39*4 | 170 | 60.0 |
M42*4.5 | 187 | 67.0 |
M45*4.5 | 187 | 67.0 |
M48*4 | 187 | 67.0 |
M52*5 | 200 | 70.0 |
M56*5.5 | 200 | 70.0 |
M60*5.5 | 221 | 76.0 |
M64*6 | 224 | 79.0 |
M68*6 | 234 | 79.0 |
![Thread Customized HSS Cutting Straight Spiral Flute Screw Machine Tap](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00ENKiPYnRAszy/Thread-Customized-HSS-Cutting-Straight-Spiral-Flute-Screw-Machine-Tap.webp)
![Thread Customized HSS Cutting Straight Spiral Flute Screw Machine Tap](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00TFjlDLnPLKry/Thread-Customized-HSS-Cutting-Straight-Spiral-Flute-Screw-Machine-Tap.webp)
![Thread Customized HSS Cutting Straight Spiral Flute Screw Machine Tap](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00EyKlDonarjzF/Thread-Customized-HSS-Cutting-Straight-Spiral-Flute-Screw-Machine-Tap.webp)
![Thread Customized HSS Cutting Straight Spiral Flute Screw Machine Tap](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00TFZlLSysGjrn/Thread-Customized-HSS-Cutting-Straight-Spiral-Flute-Screw-Machine-Tap.webp)
![Thread Customized HSS Cutting Straight Spiral Flute Screw Machine Tap](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00ayZWDwOryjzF/Thread-Customized-HSS-Cutting-Straight-Spiral-Flute-Screw-Machine-Tap.webp)
![Thread Customized HSS Cutting Straight Spiral Flute Screw Machine Tap](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00UNjlHfFhLSgy/Thread-Customized-HSS-Cutting-Straight-Spiral-Flute-Screw-Machine-Tap.webp)
![Thread Customized HSS Cutting Straight Spiral Flute Screw Machine Tap](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00UnslHDyRrKpN/Thread-Customized-HSS-Cutting-Straight-Spiral-Flute-Screw-Machine-Tap.webp)
![Thread Customized HSS Cutting Straight Spiral Flute Screw Machine Tap](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00YnSlLkOyGjpF/Thread-Customized-HSS-Cutting-Straight-Spiral-Flute-Screw-Machine-Tap.webp)
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer,have more than 15 years experience in this field.
Q: Is free shipping possible?
A: We don't offer free shipping service,but we will give you some discount if you buy large quantity products.
And we have cooperation Express Companies,can offer you the best price of shipping cost.
Q: Can you send products to our Forwarder in China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q: Can you produce Special carbide Tools ?
A: Yes We can. From 2013 year. Our factory main market change from standard end mills to special tools. Special tools according to
your drawing and sample.
