Basic Info.
Model NO.
hss tap
Pieces
20
Application
Motorize, Manual
Customized
Non-Customized
Transport Package
100PCS/Box
Specification
20x30x40
Trademark
OBT
Origin
China
HS Code
8208101900
Production Capacity
1000000
Product Description

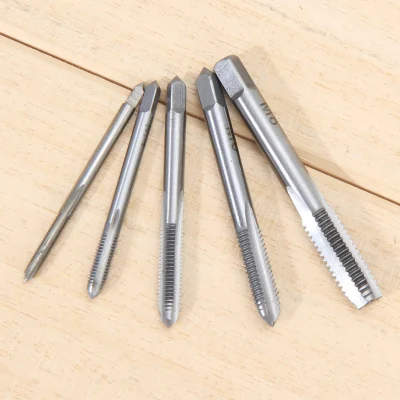

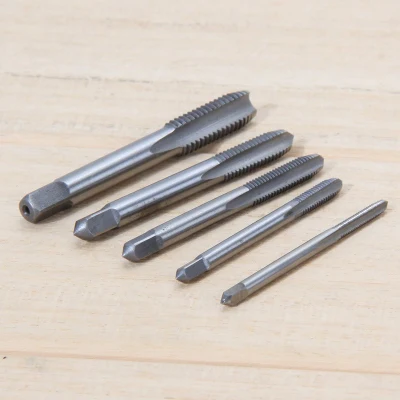

Spiral Screw Thread Tap Spiral Screw Thread Tap Sets M3-M20 Metric For Stainless Steel Machine Taps HSS-M2 Right Hand Qualited
HHS-M2
Hardness:HRC.68
M2(W6Mo5Cr4V2 High-speed steel) is the "standard" and most widely used industrial HSS. It has small and evenly distributed carbides giving high wear resistance, although its decarburization sensitivity is a little bit high. After heat treatment, its hardness is the same as T1, but its bending Strength can reach 4700 MPa, and its toughness and thermo-plasticity are higher than T1 by 50%. It is usually used to manufacture a variety of tools, such as drill bits, taps and reamers.
Features:
High hardness(up to HRC.68), fast cutting, wear high temperature.
Spiral groove is conducive to remove crumbs, not easily broken tap.
Tap the crumbs into a spiral up chip evacuation, it is more suitable for the processing of blind holes and
sticky materials processing.
For hard matel tapping,such as stainless steel, aluminum alloy, carbon steel, copper, wood, PVC, plastic and so on
Specifications:
Material: HSS-M2
Type Size:
M3: 3mm x 0.5mm
M4: 4mm x 0.7mm
M5: 5mm x 0.8mm
M6: 6mm x 1mm
M8: 8mm x 1.25mm
M10: 10mm x 1.25mm
M12: 12mm x 1.5mm
M14: 14mm x 2mm
M16: 16mm x 2mm
M18: 18mm x 2.5mm
M20: 20mm x 2.5mm
M2(W6Mo5Cr4V2 High-speed steel) is the "standard" and most widely used industrial HSS. It has small and evenly distributed carbides giving high wear resistance, although its decarburization sensitivity is a little bit high. After heat treatment, its hardness is the same as T1, but its bending Strength can reach 4700 MPa, and its toughness and thermo-plasticity are higher than T1 by 50%. It is usually used to manufacture a variety of tools, such as drill bits, taps and reamers.
Features:
1. Durable, and long service life.
2. High hardness, wear high temperature.
3. The Handle made of high quality bearing steel.
4. Suitable for bicycle repair, assemble furniture, machinery manufacturing, ect.
Type: Thread Tap
Material: High Speed Steel 6542
Coated: Titanium Coated
High hardness(up to HRC.68), fast cutting, wear high temperature.
Spiral groove is conducive to remove crumbs, not easily broken tap.
Tap the crumbs into a spiral up chip evacuation, it is more suitable for the processing of blind holes and
sticky materials processing.
For hard matel tapping,such as stainless steel, aluminum alloy, carbon steel, copper, wood, PVC, plastic and so on
Specifications:
Material: HSS-M2
Type Size:
M3: 3mm x 0.5mm
M4: 4mm x 0.7mm
M5: 5mm x 0.8mm
M6: 6mm x 1mm
M8: 8mm x 1.25mm
M10: 10mm x 1.25mm
M12: 12mm x 1.5mm
M14: 14mm x 2mm
M16: 16mm x 2mm
M18: 18mm x 2.5mm
M20: 20mm x 2.5mm
Note
Please allow 1-3mm error due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item
