Basic Info.
Product Description
The drill body of the product is 42crmo. 42CrMo steel belongs to ultra-high-strength steel, with high strength and toughness, good hardenability, no obvious temper brittleness, high fatigue limit and resistance to multiple impacts after quenching and tempering. Ability, low temperature impact toughness is good. The steel is suitable for the manufacture of large and medium-sized plastic molds that require certain strength and toughness. Alloy grade: YK05

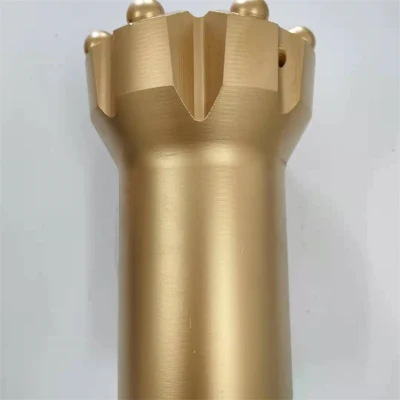

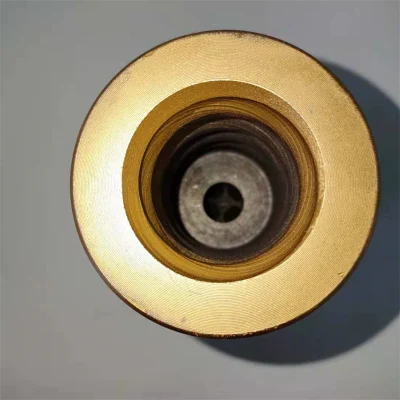

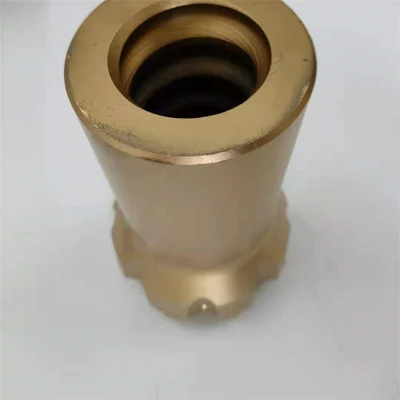

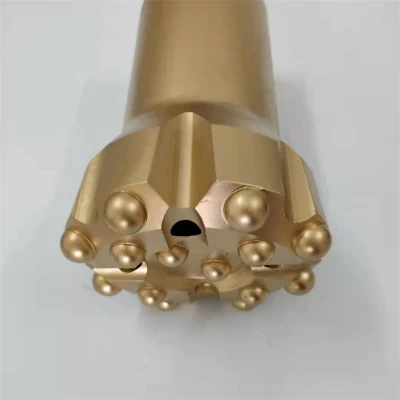

DTH Drill Bit Features
Fast drilling and retrieval!High efficiency, low labor intensity of workers!
DTH Drill Bit Usage
Widely used in earth and stone engineering mining Wells drilling construction projects drilling Wells edge pillar support.
DTH Drill Bit Model
Medium/Low wind pressure DTH Drill bit:80 90 100 110 120 130 140 150 180 185 200 220
High wind pressure DTH Drill bit:115 127 138 152 165 178 195 203 216 240 254 304
Medium/Low wind pressure DTH Drill bit,High wind pressure DTH Drill bit
DTH Hammer Model
Medium/low wind pressure DTH hammer:CIR65 CIR70 CIR90 CIR110 CIR130 CIR150 CIR170 CIR200
High wind pressure DTH hammer:DHD340 DHD350 DHD360 DHD380 N125 SD12
Main Specification:
| Type | Model | Length (mm) | Weight (kg) | External Dia.(mm) | Hole Range (mm) |
| 3.5 inch | DHD3.5 | 930 | 25 | Φ82 | Φ90-110 |
| 4 inch | DHD340 | 1030 | 39 | Φ99 | Φ110-135 |
| SD4 | 1084 | 40.5 | Φ99 | ||
| QL4 | 1097 | 41 | Φ99 | ||
| Mission40 | 1005 | 40 | Φ99 | ||
| 5 inch | DHD350 | 1214 | 76.5 | Φ125 | Φ135-155 |
| SD5 | 1175 | 72.5 | Φ125 | ||
| QL5 | 1147 | 73 | Φ125 | ||
| Mission50 | 1110 | 68.5 | Φ125 | ||
| 6 inch | DHD360 | 1248 | 100 | Φ142 | Φ155-190 |
| SD6 | 1261 | 100 | Φ142 | ||
| QL6 | 1212 | 95 | Φ146 | ||
| Mission60 | 1161 | 90 | Φ146 | ||
| 8 inch | D85 | 1492 | 188 | Φ180 | Φ195-254 |
| SD8 | 1463 | 192 | Φ180 | ||
| QL8 | 1465 | 182 | Φ180 | ||
| Mission80 | 1338 | 176 | Φ180 | ||
| 10 inch | SD10 | 1502 | 290 | Φ226 | Φ254-311 |
| NUMA100 | 1510 | 288 | Φ226 | ||
| 12 inch | DHD1120 | All can be designed according to your requests! | |||
| Numa120 | |||||
| Numa 125 | |||||
Widely used in metallurgical, coal, chemical, building materials are not busy mines and water conservancy, hydropower, highway and railway defense construction projects, etc. Suitable for dry wind water mixing and shotgun-hole water gushing wet operation, reliable performance, is the ideal drilling hole and rock drilling equipment.

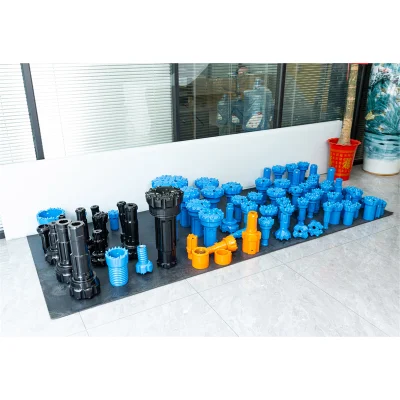

Main product
Application
Borehole drilling, Civil Infrastructure, civil engineering, and infrastructure, for rock core drilling, Soil Testing and sampling, geophysical survey companies, Pile foundation drilling, bridge drilling, wind power generation, large-mouth engineering drilling, oil field, metallurgy, mining, geological mineral exploration, water conservancy and hydropower construction, coal mine, mine tunnel drilling, grouting reinforcement engineering, highway, subway, high-speed rail, concrete core sampling, etc, Coring exploration, drilling.
Workshop
Why we achive today′s achievements is because we are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients. Guangzhou International Technology Co.,Ltd. will continue committing to provide low cost Rock Drills, Drilling tools, well drilling rigs, high efficiency drilling tools, energy saving and environmental product for domestic and international clients.
-WHY CHOOSE US-
--The first-class engineers of tricone bits and PDC bits--Advanced technology and Equipment, International standard.
--R&D center for rock drilling tools, high precision CNC machines, SGS&ISO Certified.
--10+ Years & 40+ Countries of service experience.
--Optimized solutions for the various requirements.
DIY customization: please provide your rock formation information or detailed size drawings.
Free samples: some samples can be provided free of charge.
Payment:T/T L/C,D/A,D/P,Western Union,MoneyGram.
| Packaging |
| Wood Box Fumigation Tray if necessary Other special package can be applied according to customer's need |
| Delivery |
| Prepared to deliver within 1 week, if in stock Depends on order quantity, when out of stock Transportation:By sea or air |
