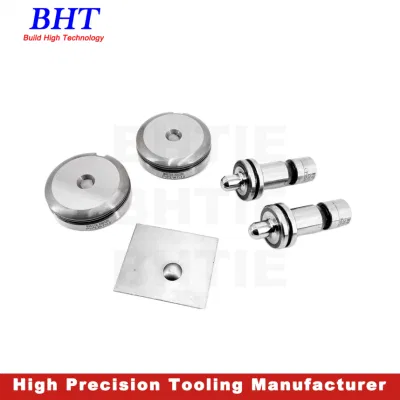

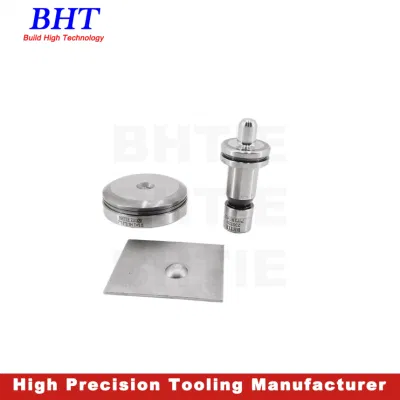

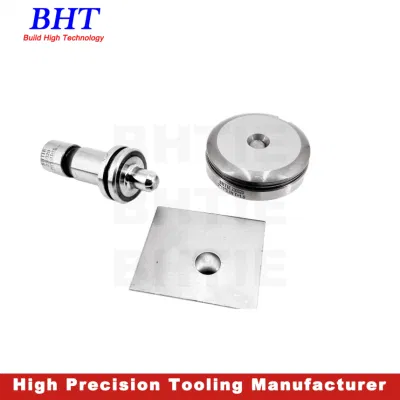

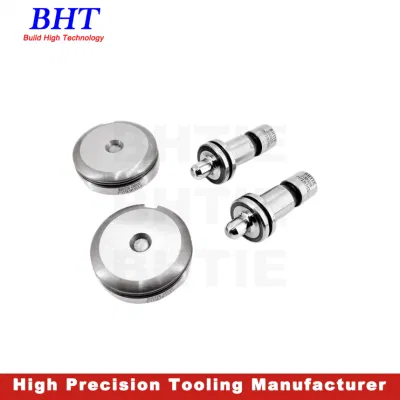

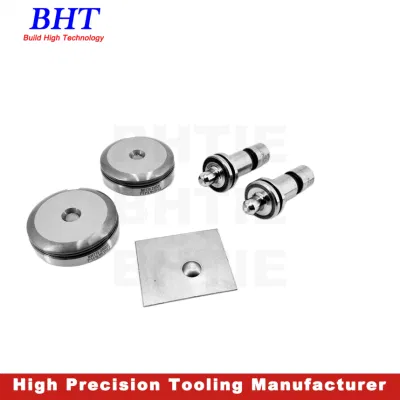

Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc

Our round emboss forming punch tool/die is designed for Germany punching machines Trupunch, Trumatic, Tc. As a factory, we provide high-quality precision tools for all your manufacturing needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Processing and Manufacturing
  • Detailed Photos
  • Packaging & Shipping
  • BHT Clients
Overview

Basic Info.

Model NO.
BHTIE-1180
Manufacturing Technology
Computer Technology
Mold Cavity Technology
CNC Milling
Milling Speed
High Speed
Parts Detection Method
Measurement of Three Axis NC
After-sales Service
Quality Problems, Free Replacement
Punch Material
M2, D2, Skh, SKD
Die Material
M2, D2, Skh, SKD
Coating
Tin / Ticn
Hardness
HRC62-63
Punch Tolerance
0, +0.01mm
Transport Package
Thick Wooden Box with Air Bubble Film Inside
Specification
SIZE 1, 2
Trademark
BHTIE
Origin
China
HS Code
8207300090
Production Capacity
168000 PCS Per Month

Product Description




Product Description



1).Available TruPunch Machines Model TruPunch 200,500R,600L,1000,2000,2010L,2020R,3000,3000L,5000R,5000L etc...
2).BHT Tooling Advantages Taking into consideration our clients wishes, every day we work to satisfy our clients' needs, to increase our product list and tools quality.
√ We produce our punch tooling from high speed steel M2(SKD), D2,(SKH).
working surfaces are preciously grounded, standard will be whole body Total Hardening, the hardness can reach HRC61-63.
√ we have  we have more than 17 years experience in punch tooling manufacturing.
√ Our punch tooling factory total have 102 people, total have around 150 sets processing machines for punch tooling.
now most machines are CNC and from China local top manufacturer,  but also we have 8 sets of processing machines from Japan and Europen,  like CNC Machine Center from MIKRON, CNC EDM from Sodick etc...
√ The tolerance for the punch is 0,+0.01mm
√ Every special punch forming tooling will be tested by our punch machines and have the test samples before sending to our clients.


3).LIFE COUNTERMEASURE FOR TOOLING
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc TIN / TICN coating PROCESSING
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc NARROW PUNCH
There is a punch type such as narrow type, open end type, super narrow type etc.
which made it difficult to break by shortening the effective punch length and
increasing the strength of the punch
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc THICK PLATE PROCESSING
A tool that provide taper relief on the punch and reduce seizure and contact with the material.
OTHER LIFE COUNTERMEASURES
-.Check for misalignment of turret station and wear of turret key etc.
-.Combined use with tools for slug pulling measures.
-.Implementation of early regrinding.
-. Put a small rounding on the corner of Square / Rectangle punch.
As life countermeasures of the tool, it is recommended to select a tool that is acceptable
for the processing conditions such as the quality and thickness of material.
4). MATERIAL FOR TOOLING
Selection of tool material (Type of material) is very important in terms of the quality of the processed product and the tool life (processing cost). This time, we summarized the typical material for tooling.
We use the following material for punch body.
D2 (SKD) , M2 (SKH)
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc
We use the following material for die.
Improved D2 , M2(SKH)

5). REFERENCE APPROPRIATE CLEARANCE
Clearance = material thickness x clearance ratio
Material Clearance ratio
Tensile Strength
(N/mm2)
  Servo-Hydraulic Machine Mechanical Machine
Mild Steel(Cold Roll) 0.2-0.25 0.15 More than 270
Mild Steel(Hot Roll)
Stainless(Hard)  0.25-0.3 0.2
More than 520
Stainless(Soft)
More than 450
Aluminum(Soft) 0.15-0.2 0.1
More than 95
Aluminum(Hard)
More than 215
Copper 0.2-0.25 0.15
More than 275
Brass 0.2-0.3 0.2
More than 410
High Tensile Steel
More than 590
-.The shear resistance should be about 80% of the tensile strength as a guide.
-. Please multiply x 1.4 to the calculation result in case of more than 3.2mm thickness.
-. Please calculate based on the number of shear resistance and Tensile strength for the material which is unspecified on the left table.
-. If there is a workpiece, please actually perform punching and purchase the appropriate clearance referring to the table below.
-. The minimum clearance is depends on machine specifications. Please also check the machine specifications.

6). PARTS NAME OF STANDARD TOOLING
EACH PART NAME AND FUNCTION OF TOOL
TRUMPFSTYLE TOOLING
1. Alignment Rings
• Precision machined and ground for accurate tool alignment.
• High impact-resistant steel to maintain superior flatness
and durability.
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc
2. Punches
•  high speed tool steel for longer tool life.
• 1/4º back taper and near polished flanks to reduce friction and
eliminate galling.
• Minute corner radii on punch point to reduce chipping.
• Single point turned radii at base of punch point to reduce stress.
• Solid surface contact with alignment ring for superior alignment.
• Superior tolerances and surface finishes.
• 0.118 (3.00) grind life in 0.250 (6.35) material.
3. Urethane Strippers
• Quiet.
• Cushions impact.
• Eliminates sheet rattle.
• Safe: will not shatter.
• Non-Marring even on polished aluminum.
• Improved flatter sheets, no puckering.
• Positive stripping keeps sheets from moving
4. Strippers
• Keyed to allow 45° angle settings.
• High strength tool steel, will not deform or break.
Dies
• High chrome air hardened tool steel.
• 0.059 (1.50) grind life.
• Double-cut die opening to improve die strength.
• Uniform clearance radii in die corners.
• Precision slot orientation-die opening orientation
and slot cut in single operation to improve accuracy.
• Improved die strength: Domed relief in size 1
and in size 2.
• Superior roundness and flatness.
5. Die Adapters
• Permits Size 1 dies to be used in machines
with Size 2 die bases.
• Precision machined in shock resistant tool steel for greater
accuracy, superior machine fit, and longer life.
TRUMPFSTYLE TOOLING SIZE
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc

7). CALCULATION FORMULAS FREQUENTLY USED IN SHEET METAL
TONNAGE CALCULATION
In the punch press machine, the allowable tonnage depending on the machine.
Use the calculation formula below to prevent from over tonnage.
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc
CALCULATING PRE-HOLE DIMENSION FOR FORMING
When forming processing, pre-holes may be processed as pre-processing. In that case,
please calculate pre-holes referring to the following calculation formula
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc
ADVICE ON ONE POINT:
Although forming shape is same, pre-hole dimension would be different depending
on material. It is recommended that you try trial machining with reference to the above
equation to obtain proper pre-hole dimension.

8). SPECIAL Applications
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc


Processing and Manufacturing

CNC Machine Center,EDM, WEDM, CNC Grinding Machines, CNC Milling Machines, more than100 sets, mostly are imported from Europe and Japan.
Not only for our own Tooling Designing, Tooling manufacturing, Tooling Maintenance , BHT also provide OEM machining service for our international customers.
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc
BHT Tooling Testing equipments:  CMM 2.5 Dimension (Precision:0.001mm),Micro scope(Precision:0.001mm),Profile projector(Precision:0.001mm),CMM 3 Dimension ( Precision:0.001mm),Hardness tester,Calipers,Micrometer, Protractor,Height gauge, Dial gauge, Coating Thickness Gauge,  etc...
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc





Detailed Photos


BHT standard tool cartridge made from fiber-reinforced plastic,
for maximum productivity and secure tool change


Advantages:
Low weight for high acceleration values and productivity
Fast and secure changeover of punching tools
Secure grip on tools due to the extra strong springs
The cartridge arms have a special heat treatment, resulting in a longer tool life
Efficient handling due to the ergonomic handle Long tool life
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc


Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc
Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc

Packaging & Shipping

Round Emboss Forming Punch Tool / Die for Germany Punching Machine Trupunch, Trumatic, Tc




BHT Clients



BHT have exported the products to 65 countries (Germany, Sweden, Hungary, Italy, Netherlands, Spain, Portugal, Czech Republic, Lithuania, Serbia, Greece, Malta, Austria, Kosovo, Turkey, Ukraine, Albania, Estonia, Belarus, Bulgaria, Bosnia, Croatia, Romania,USA, Brazil, Argentina, Mexico, Bolivia, Colombia, Canada, Peru, Chile, Australia, New Zealand, Rwanda, Egypt, South Africa, Tanzania, Nigeria, Botswana, Mauritius, Russia, Vietnam, India, Iran, Singapore, Uzbekistan, Thailand, Sri Lanka, Bangladesh, Malaysia, Kazakhstan, Philippines, Bahrain, Pakistan, United Arab Emirates, Kuwait, Saudi Arabia, Sudan, Jordan, Oman, Qatar, Syria, Israel, Yemen)
