Basic Info.
Model NO.
SG-C1400IIP
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials, Stickers Products, Heat Insulation Material
Power
150W
Transport Package
Carton/Wooden Package
Specification
2100*350*490mm
Trademark
Saga
Origin
Hefei China
HS Code
8479899990
Production Capacity
10000PCS
Product Description

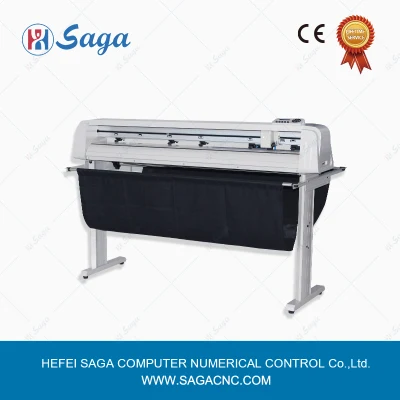

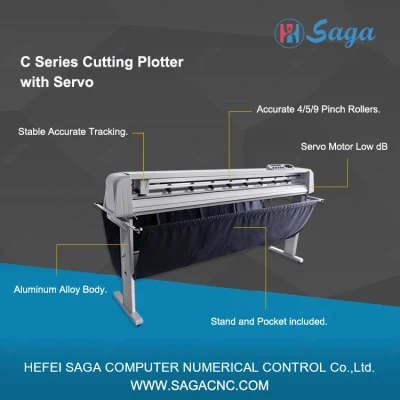

SAGA cutting plotter

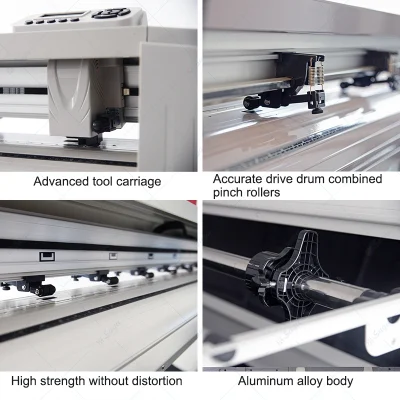

Feartures:
1,High force cutting head with 4 wheels
2,Aluminum alloy construction, ABS end caps, welded steel stand
3,Available with ARM for fully automatic contour cutting
Applications:
Self-adhesive sticker , label etc.
Maximum thick:0.5mm(depend on material)
Applications:
Self-adhesive sticker , label etc.
Maximum thick:0.5mm(depend on material)
| Model Name | SG-C1400IIP | |
| Maximum sheet size | 1400mm | |
| Maximum cutting size | 1260mm | |
| Minimum cutting character | About 5mm2 | |
| Mechanical resolution | 0.02mm | |
| Repeat precision | 0.082mm | |
| Maximum linear cutting speed | 960mm/s | |
| Maximum cutting force | 750g | |
| Cutting control system | Servo motor | |
| Motor speed | 0-3500 RPM | |
| CPU | 64-DSP | |
| Package dimensions | 1710mmx350mmx490mm | |

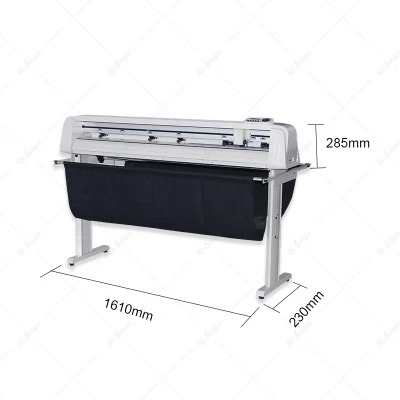

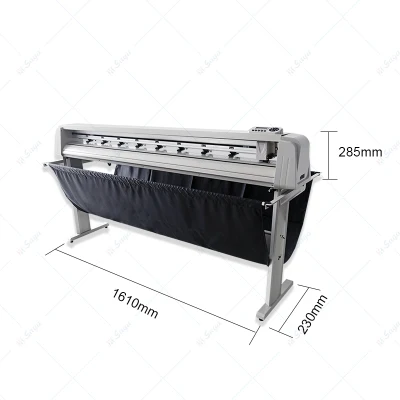

| Acutal dimensions | 1610mmx230mmx285mm | |
| GW/NW | 42KG/35KG | |
| Software and compatibility | ||
| Connectivity | USB/RS-232 | |
| Software and compatibility | Dragon Cut,for computer,compatible for Windows7,8,10(USB direct connection to the computer) | |
| Corel Draw/Illustrator Plug-in(SD direct connection to the computer) | ||
| Power and working environment requirments | ||
| Power source | 100V-240V,50/60Hz | |
| Power | 150W | |
| Operation environment | Temperature +5ºC to +35ºC(Fahrenheit 41-95),Humility 30%-75%(Non-condensing) | |
| Stand&Pocket | Included | |
This parameter is subject to change without prior notice.The company reserves the right of final interpretation.
