Basic Info.
Warranty
24 Months
Customized
Customized
Advantage
Long Service Life
Condition
New
Keywords

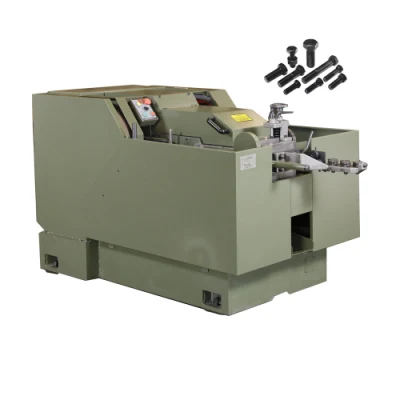

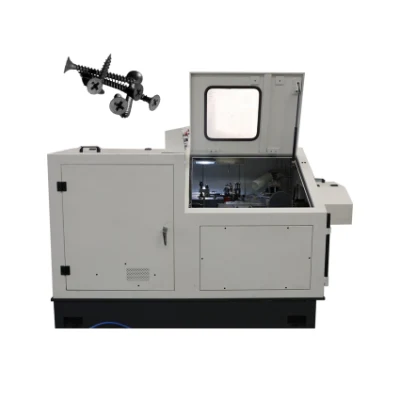

Tapping Screw Cold Heading Machine
Name
Screw Making Machine
Price
Factory Direct Supply Price
After Sales
Provide Solution Within 24 Hours
Usage
to Make Different Screw
Brand
Ronen
Video Outgoing-Inspection
Provided
Merit
Run Steadily
Raw Material
Steel Low Carbon, Stainless
Technical Merit
Taiwan Technology
Confirmation
CE, ISO9001
Warranty Period
1 Years
Package
Wooden Case or as Required
Samples Service
Free Samples
Delivery Time
in Stock, or 30-50 Working Days
Transport Package
Wood or as Required
Trademark
Ronen
Origin
Hebei
Production Capacity
30set/Month
Product Description
Functions

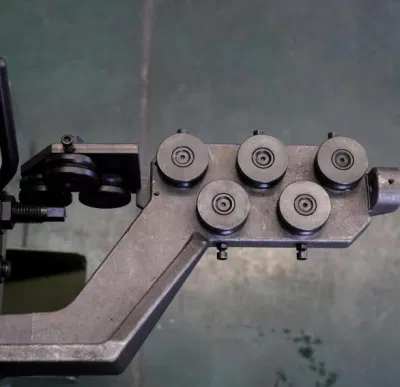

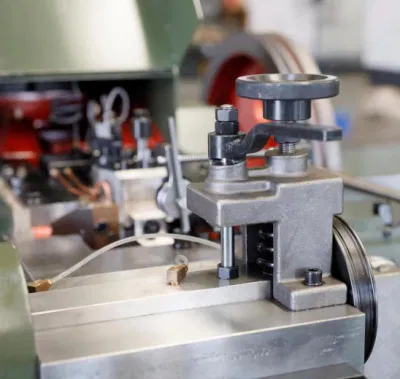

This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.
Application of equipment

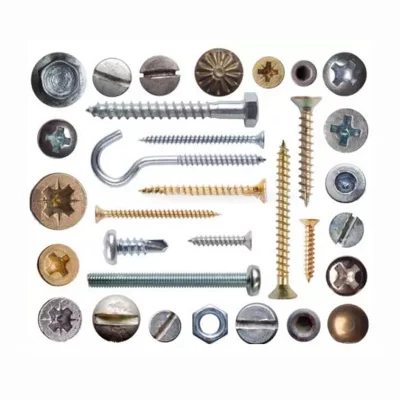

It is used for chipboard screws, drywall screws, self drilling screws, self tapping screws, wood screws, machine screws, furniture screws, electronic screws, precision screws, fasten piece used for car and motor car, nuts, spring washer, rivets, pin bolt and split pin, steel structure used rivets and fasten pieces, kinds of metal special-shaped pieces etc products' upsetting and forming.
| Modle | X15-30G | X15-37G | X15-50G | X15-63G | X15-76G | X15-100G | Z32G-51 |
| Main Motor KW(4HP) | 3 | 3 | 3 | 3 | 3 | 3 | 5.5 |
| Diameter (mm) | 2.3-5 | 2.3-5 | 2.3-5 | 2.3-5 | 2.3-5 | 2.3-5 | 2.3-5 |
| Length (mm) | 6-30 | 6-37 | 6-50 | 6-63 | 6-76 | 75-100 | Max.15 |
| Main Die (mm) | Φ34.5*50 | Φ34.5*55 | Φ34.5*67 | Φ34.5*80 | Φ34.5*100 | Φ34.5*115 | |
| 1stPunch (mm) | Φ31*73 | Φ31*73 | Φ31*73 | Φ31*73 | Φ31*73 | Φ31*73 | |
| 2rdPunch (mm) | Φ31*73 | Φ31*73 | Φ31*73 | Φ31*73 | Φ31*73 | Φ31*73 | |
| Cutting Die (mm) | Φ19*35 | Φ19*35 | Φ19*35 | Φ19*35 | Φ19*35 | Φ19*35 | |
| Cutter (mm) | 10*32*63 | 10*32*63 | 10*32*63 | 10*32*63 | 10*32*63 | 10*32*63 | |
| Speed (pcs/min.) | 260-300 | 190-215 | 180-195 | 130-150 | 120-135 | 85-100 | Max.800 adjustable |
| Weight(kg) | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | 4200 |
| Modle | X065 | X0685 | X06127 | X0860 | X08100 |
| Main Motor KW(4HP) | 4 | 4 | 5.5 | 7.5 | 7.5 |
| Diameter (mm) | Max.6 | Max.6 | Max.6 | Max.8 | Max.8 |
| Length (mm) | Max.50 | Max.85 | Max.127 | Max.60 | Max.100 |
| MainDie (mm) | Φ45*108 | Φ45*108 | Φ45*150 | Φ60*128 | Φ60*128 |
| 1stPunch (mm) | Φ36*94 | Φ36*94 | Φ36*94 | Φ38*107 | Φ38*107 |
| 2rdPunch (mm) | Φ36*60 | Φ36*60 | Φ36*60 | Φ38*107 | Φ38*107 |
| Cutter (mm) | 10*25 | 10*25 | 10*25 | 12*28 | 12*28 |
| Speed (pcs/min.) | 130 | 80 | 70 | 60-100 | 60-80 |
| Weight(kg) | 2200 | 2200 | 2500 | 4000 | 4200 |
Ronen expertise can be found in the most varied
Fastener Equipment end products.
We reliably accompany you through everyday life. Mostly unnoticed. After all, our precision-Fastener parts and Cold Forging Technology are embedded into the products of our customers and, although not always visible,they fulfil mission-critical functions there.
1. who are we?
We are based in Hebei, China, start from 2018,sell to Domestic Market(53.00%),Eastern Europe(10.00%),Eastern Asia(6.00%),Mid East(6.00%),Southeast Asia(5.00%),Western Europe(5.00%),Africa(5.00%),South America(3.00%),Southern Europe(2.00%),Northern Europe(2.00%),North America(2.00%),Central America(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
cold heading machine,cold forging machine,bolts nuts machine,screws machine,threading machine
4. why should you buy from us not from other suppliers?
Over 20 years of experiences in designing and manufacturing high level of metal forming machines
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish,Portuguese,French,Russian
