Basic Info.
Model NO.
MPL300-20211118
Warranty
1 Year
Customized
Customized
Condition
New
Color
Multi Color
Name
Wood Flat Die Pellet Machine
Colour
Customized
Design
Flat Die
Certificate
CE, ISO9001
Pellet Size
The Length and Diameter of Pellets Are Adjustable
Process Materials
Sawdust, Twigs, Stalks and Straws
Capacity
250-350 Kg Per Hour & 350-0450 Kg Per
After-Sales Service Provided
Online
Size
Customized
Brand
ABC Machinery
Trademark
ABC Machinery
Origin
China
Production Capacity
50000
Product Description
✠ Hot sale biomass wood flat die pellet machine ✠
| ▸Product Detail of flat die pellet machine |

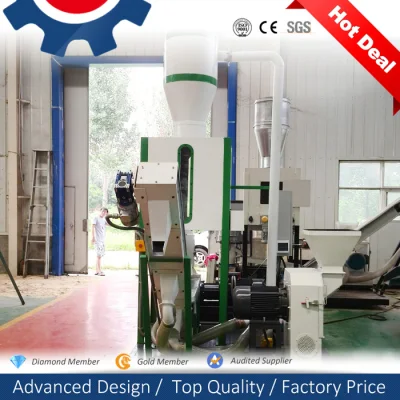

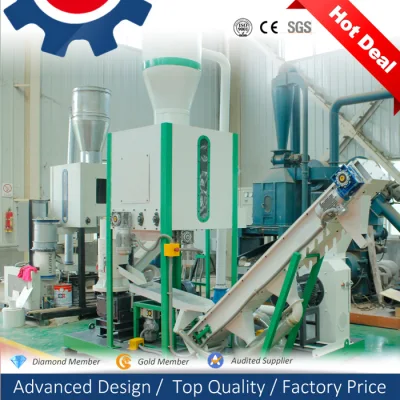

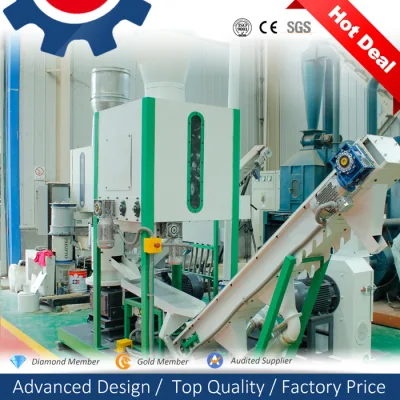

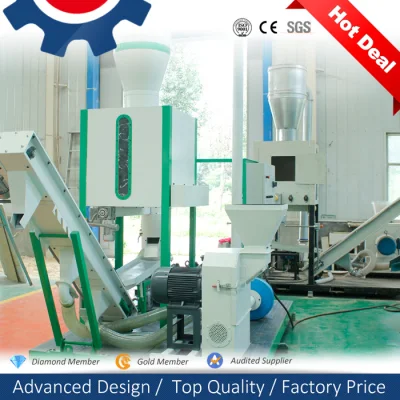

MPL300 type flat die pellet machine is a new production line for wood researched and developed by our company. The pellet plant process is designed as convenient micro - moving pelleting device. It is composed of crushing machine, scraper conveyor, vibrating screen, material bin, moveable pellet mill and wood parcels screen machine. Because of the special design about ABC Machinery, the mobile pellet plant process is more movable and easier for using than the traditional biomass pellet mill.
| Pelletizing Unit | Parameters |
| pellet diameter | 2.5 - 12mm |
| Pellet density | 0.6-1.2 t/m3 |
| Pelletizing Type | ZLSP-300B R | ZLSP-400B R | ZLSP-420B R |
| Pelletizing Capacity | 250-350 kg/h for wood, 350-600 kg/h for feed |
| Total power of the complete mobile pellet plant | 41.25 KW |
| Dimension | 3500mm*1960mm*3500mm |
There are 3 model mobile pellet mill for you. You can choose different type moveable pellet mill for output you want.
The mobile pellet plant is used for turning agricultural and forestry waste into solid fuel like biomass wood parcels, straw, rice husk and peanut shells. If you would like to purchase a automatic small mobile pellet plant instead of a single biomass moveable pellet mill, BPL300 type portable pellet plant is recommended.
The MPL300 moveable pellet mill is specially designed for medium and small scale biomass pelleting production. The main equipments are hammer mill, cyclone separator, mix bin, screw feeder, ZLSP-300B R | ZLSP-400B R | ZLSP-420B R pelletizer machine, water box, vibrating screen, bucket conveyor, basis frame, and electric control cabinet. The pellet machine unit, turning biomass, wood, branches of trees, straw, and bamboo sawdust into biomass parcels, is used for mall office heating and family heating.
Contact Now for Catalogs & Best Price!
| ▸Part of flat die pellet mach |
▮ Crushing Part
There are 15 hammers and 3 blades shaped as equilateral triangle on the machine. By changing different seats of the blades, the machine applies to breaking wood ,biomass, and feeding materials with the size of diameter less than 20mm. and the size of the broken materials can be 3-5 mm.
▮ Conveying Unit (1)
This unit is composed of a blower powered with 2.2kw,air pipe and cyclone separator. It conveys crushed material into the mixer and the inventory box. It is connected with vibrating screen with a semitransparent hosepipe and bucket conveyor to cool the pellets and collect the dust.
▮ Sipiral Conveyor
Put the mixed material into the moveable pellet mill, actuated by variable-frequency and variable-speed motor, powered of 0.18 kw, and its range of the frequency conversion is 30~60Hz.▮ Pelleting Part
Three types of portable pelleting mills were equipped. ZLSP-300B R | ZLSP-400B R | ZLSP-420B the moveable pelleting mill can make 0.4~0.6 tons of sawdust particles by using pure sawdust per hour. Connecting the water system can be used for adjusting the water content of mixing material. We can create pellets whose diameter is 6-12mm.
▮ Vibrating Sieve
It is a gridding of 3.5*3.5 mm powered by 0.37kw.The size of the gridding can be changed according to your requirement. A hose pipe should be connected for collect the powder and dust.
▮ Conveying Unit (2)
Biomass wood pellet machine is powered by chains and the size of the scraper is 145mm. Every single unit is 2436mm long, 437mm wide, 484mm thick. The length and width of the conveyor can be extended by adding or connected extensive part. There are five located joints to easily adjust the length and angle of conveyor. Two hose pipe with 100mm long are connected to cool the particles.
▮ Electric Control
It is used the electric components of Schneider, which is certificated by CE safety standard. The switch of emergency is equipped for operating more safer and simple.
| ▸Features of pellet machine wood |
The biomass wood pellet machine produced by ABC machinery is better than other manufactures, because of:
★ Pe llet machine wood small size: about 3.5 * 2 * 3.5. All the units were installed in one basis frame: hammer mill, cyclone separator, material bin, spiral conveyor, moveable pellet mill, vibrating screen, scraper conveyor and electric cabinet. So, it s easy to move, too.
★ One container of 20 inches is enough. Reducing the height of the factory making packing and transporting easier.
★ The biomass pellet machine sets crushing, pelting, cooling and delivering, reducing the production time, saving the cost of production and manual work.
★ B iomass wood pellet machine is applied for all the high-quality materials: Schneider electrical electric components, high alloy steel and heat treatment.
★ Humanized design of wood granulator is applied for protect the operator s safety, also dust control technology is used for preventing the dust during the pellet plant process.
