Basic Info.
Product Description
1. Magnetic drill is suitable for all kinds of complex environment, especially suitable for:nuclear power, shipbuilding, bridge,
construction machinery, machinery, mechanical equipment installation, steel structure engineering, railway and subway construction,
large equipment repair, power plant, electric power construction, repair, and field construction management engineering and so on.
2. Convenient and small, and can reducing work force and improve the machining accuracy and efficiency.
SPECIFICATION
| Specification | Items | |||
| 3500 | 4500 | 5000 | 8000 | |
| Rated voltage | 110V/220V | 110V/220V | 110V/220V | 110V/220V |
| Rated frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| Motor input power | 1500W | 1650W | 1650W | 1950W |
| Twist drill | 35mm | 45mm | 50mm | 80mm |
| Non-load speed | 800r/min | 670r/min | 570r/min | 510r/min |
| Max attraction | 14000N | 15000N | 15500N | 16700N |
| Depth of drilling | 30mm | 35mm | 40mm | 40mm |
| N.W. | 10.25kg | 10.25kg | 10.25kg | 18kg |
| packing size | 58x17x38cm | 58x17x38cm | 44.5x16.5x34.5cm | 44.5x16.5x34.5cm |
Details:

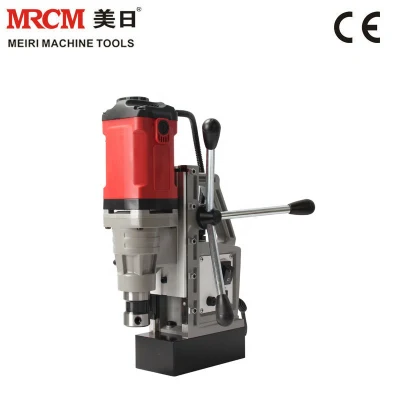

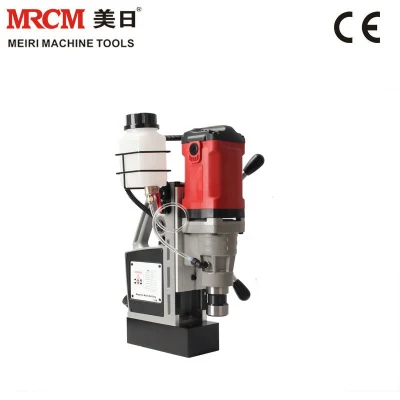

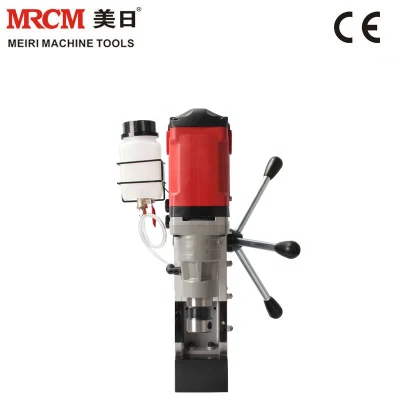

MR-3500
Portable Magnetic Drill
Magnetic drill machine is applicable to steel structure drilling, shipping building, paper making, bridge construction,
mechanical equipment installation, steel construct engineering, subway construction, large equipment maintenance
and all the pipeline engineering.
Strong adhesion and reliable safety
Magnetic bottom wear design, which delays the wear of magnet bottom and extend service life.
Magnetic base with maximum adhesion up to 10000N ensures the safety and reliability during drilling operations.

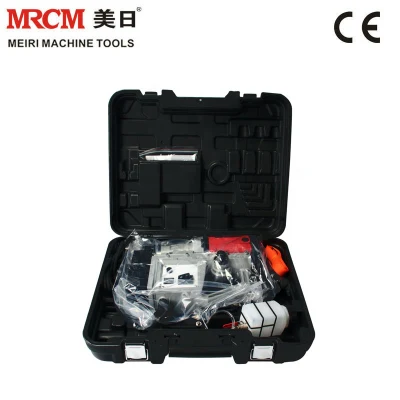

Packaging & Shipping
Company Information
MRCM is a manufacturer specialized in developing and producing small special-purpose tool grinders, precision machinery
tools. It is a high-tech enterprise which includes research and development; design; production; sale; and after-sale service. In the past many years, we've been committed to research, develop and produce the grinding tools. We've been
started from the portable drill bit sharpener and continuously developed to the current four-axis and six-axis CNC tool grinding machine. The CNC machine with different functions to meet the market requirements, effectively improve
the working life of tools and reduce production costs.
Main products include: CNC tool grinder, drill bit sharpener, end mill sharpener, screw tap sharpener, lathe tool grinder,
saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, tapping machine, vise, sucker, zero
positioning, and so on.
Engaged in international marketing, participated in international exhibitions, such as EMO Hannover, cooperated with the
domestic and foreign companies. We've passed the CE, ISO 9001 certification, have been applied for over 70 national
patents, sold product to 60 countries and regions, 80% of exporting products are sold to developed countries such as
Japan, Europe countries and so on.
