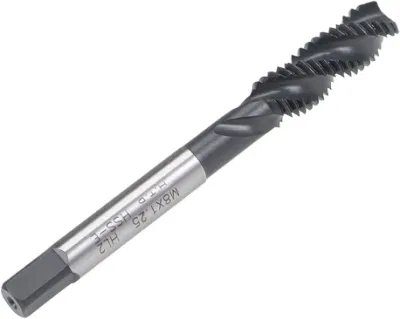

M8 x 1.25 Spiral Flute Thread Tap Metric Machine Threading Tap HSS Nitriding Coated Round Shank with Square End
Details of HSS Machine Taps:
- Tap Size: M8 x 1.25 thread, H2 tolerance. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads without burrs, fast tapping with accuracy.

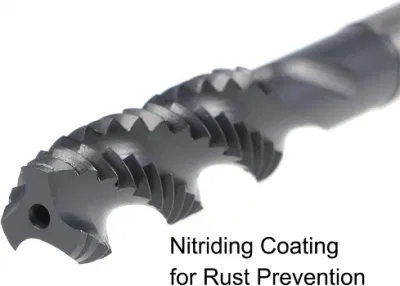

- Material and Finish: High-speed steel tool is with high hardness and toughness for wear resistance, good for general purpose applications. Features nitriding coated surface for rust prevention and long service life.

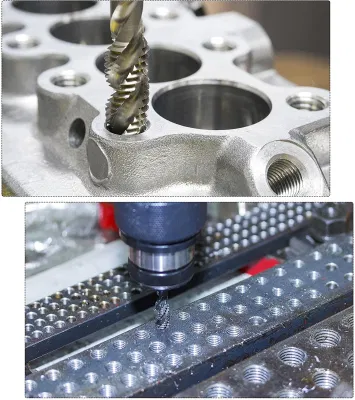

- Applications: Suitable for processing blind holes and sticky materials. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.
- Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps.
- Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause damage to the tap due to uneven force.
Specifications:

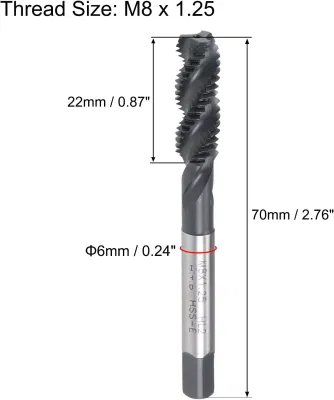

Thread Size: M8 x 1.25
Tolerance: H2
Thread Length: 22mm / 0.87"

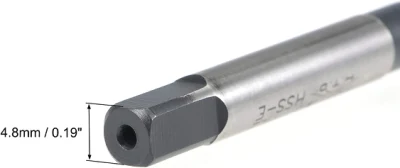

Square End Size: 4.8mm / 0.19"
Round Shank Dia.: 6mm / 0.24"
Total Length: 70mm / 2.76"
Round Shank Length: 33mm / 1.3"
Material: High Speed Steel (HSS 6542)
Finish: Nitriding Coated
Cutting Direction: Right Hand
Standard: JIS
Technology: Fully-Ground

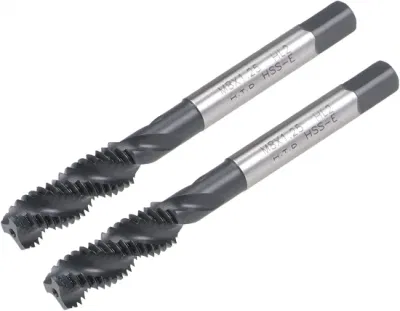

Package: 2pcs x Spiral Flute Tap
Descriptions:
1. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads with no burrs, fast tapping with accuracy.
2. High-speed steel tool is with high hardness and toughness for wear resistance, good for general purpose applications. Features nitriding coated surface for rust prevention and long service life.
3. Suitable for processing holes and sticky materials. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc..
4. Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps.
5. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause damage to the tap due to uneven force.
Features of HSS Machine Taps:
Straight flute design, used for through-hole and shallow blind hole tapping.
Applicable Workpiece:
Tensile strength 750N / mm 2 or less the low-carbon steel, copper, aluminum,
magnesium alloy; anti-bonding strength 600 ~ 900N / mm 2 the high-carbon steel, alloy steel, bronze, etc.
Tips:
- Before tapping confirm whether the diameter of the round hole is appropriate, and take protective measures when working.
- When tapping, it is necessary to add water or coolant to cool down to prevent excessive temperature and reduce tap loss. If it encounters difficulty in rotation, the tapping should be suspended.
- Be sure to select the appropriate cutting oil for the complex tapping process and apply anti-rust oil for maintenance after use.
Package and Delivery:
1. Package:Plastic box
2. Delivery:35 Days after your deposite
3. Shipping:By sea,By air,if small order,we can provide the Express.
