Basic Info.
Model NO.
M50
Standard
Metric
Application for Machine Tool
Lathe
Application
Manual
Customized
Non-Customized
Surface
Bright,Ti-Coated,Tian
Transport Package
Plastic Box
Specification
M2-M68
Trademark
OEM
Origin
Danyang, Jiangsu
HS Code
8207400000
Production Capacity
45000PCS/Month
Packaging & Delivery
Package Size
40.00cm * 25.00cm * 18.00cm
Package Gross Weight
10.000kg
Product Description

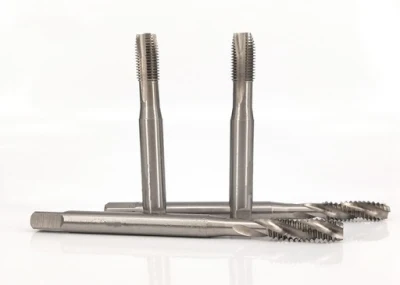

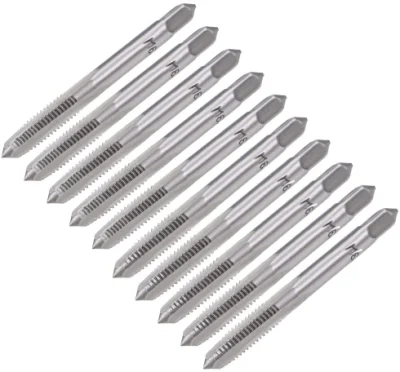

DIN352 Metric Size HSS Machine Taps with Bright Finished Screw Taps
Description of HSS Machine Taps:
1. Material:HSS 4241,4341,M2,M35
2. Size:M3-M50
3. Processing:Fully Ground
4. Flute:Straight Flute
5. Surface:Bright Finished,Ti-coated
6. Hole type:Blind hole
7. Pitch:Coarse and Fine
Feature of HSS Machine Taps:
- Used to make new threads or re-thread damaged and/or jammed threads

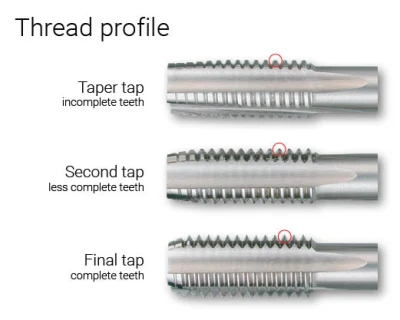

- High Speed Steel Hand Taps come in three styles: Taper Style: Starts the thread square with the workpiece. Plug Style: Generally used in thru holes. Bottom Style: Generate the thread to the bottom of the hole.
- High speed steel hand taps are the most versatile taps for hand use, or for tapping under power
- Hand taps are popular for use in general machine tapping or CNC tapping
- Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications
Application:
For hand tapping of through or blind holes in ferrous and non-ferrous Alloys.
Size:
| SIZE | OVERALL LENGTH | THREAD LENGTH |
| M2*0.4 | 36 | 8.0 |
| M2.2*0.45 | 36 | 9.0 |
| M2.5*0.45 | 40 | 9.0 |
| M3*0.5 | 40 | 11.0 |
| M3.5*0.6 | 45 | 13.0 |
| M4*0.7 | 45 | 13.0 |
| M5*0.8 | 50 | 16.0 |
| M5.5*0.9 | 50 | 19.0 |
| M6*1 | 50 | 19.0 |
| M7*1 | 50 | 19.0 |
| M8*1.25 | 56 | 22.0 |
| M9*1.25 | 63 | 22.0 |
| M10*1.5 | 70 | 24.0 |
| M11*1.5 | 70 | 24.0 |
| M12*1.75 | 75 | 29.0 |
| M14*2 | 80 | 30.0 |
| M16*2 | 80 | 32.0 |
| M18*2.5 | 95 | 40.0 |
| M20*2.5 | 95 | 40.0 |
| M22*2.5 | 100 | 40.0 |
| M24*3 | 110 | 50.0 |
| M27*3 | 110 | 50.0 |
| M30*3.5 | 125 | 56.0 |
| M33*3.5 | 125 | 56.0 |
| M36*4 | 150 | 63.0 |
| M39*4 | 150 | 63.0 |
| M42*4.5 | 150 | 63.0 |
| M45*4.5 | 160 | 70.0 |
| M48*4 | 180 | 75.0 |
| M52*5 | 180 | 75.0 |
| M56*5.5 | 200 | 85.0 |
| M60*5.5 | 200 | 85.0 |
| M64*6 | 220 | 90.0 |
| M68*6 | 220 | 90.0 |
Package and Delivery:
1. Package:Plastic box
2. Delivery:35 Days after your deposite
3. Shipping:By sea,By air,if small order,we can provide the Express.
