Ipe Structural Steel 1100 Q235B H Beam
Ipe Structural Steel 1100 Q235B H Beam - High-quality steel products from our factory. Precision engineering for all your structural steel needs. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Q235B Q345B A36 SS400 ST37
Type of Steel For Building Structure
High-Strength Steel
Carbon Structural Steel
Q235
Residential Wall Structure
Wall Support
Application
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge
Length
5.8 M , 9 M , 11.8 M
Mtc
Available for Free
Coating
Galvanized
Brand
Hbis Laiwu Steel
Transportation
by Sea Train Air
Transport Package
Standard Sea-Worthy Package
Specification
CE SGS
Origin
Tianjin China
HS Code
72161010
Production Capacity
50000 Tpm

Product Description

Hot Rolled Q235B Structural Steel H Beam

Tianjin Standard Steel Co., Ltd supply I beam H beam steel struction. Our material include Standard

Steel offers Q235, Q235B, Q235C, Q235D, Q235E, Q345, Q345B ,16mn ,SS400, ST37-2, S235JR, S355J2 A36, A529-50, A572-50 A588, A992 carbon steel Beam

GB Q235B BEAM

CHARACTERISTICS

GB Q235B beam is an intermediate tensile strength carbon steel that is easy to form, machine and weld. Its strength and low cost make it an ideal material for structural steel beams.

APPLICATIONS

Q235B  carbon steel beams are used for support beams and columns in bridges, buildings and other

Structural applications that require riveting, bolting or welding to join the beams together or to other

Components.

SIZES
Designation Dimensions Static Parameters
Moment of Inertia Elastic Section Modulus
Imperial Depth Width Web Thickness Sectional Area Weight Ix Iy Wx Wy
(in x lb/ft) h w s (in2) (lb/ft) (in4) (in4) (in3) (in3)
  (in) (in) (in)
W 27 x 178 27.8 14.09 0.725 52.3 178 6990 555 502 78.8
W 27 x 161 27.6 14.02 0.66 47.4 161 6280 497 455 70.9
W 27 x 146 27.4 14 0.605 42.9 146 5630 443 411 63.5
W 27 x 114 27.3 10.07 0.57 33.5 114 4090 159 299 31.5
W 27 x 102 27.1 10.02 0.515 30 102 3620 139 267 27.8
W 27 x 94 26.9 10 0.49 27.7 94 3270 124 243 24.8
W 27 x 84 26.7 9.96 0.46 24.8 84 2850 106 213 21.2

W 24 x 162 25 13 0.705 47.7 162 5170 443 414 68.4
W 24 x 146 24.7 12.9 0.65 43 146 4580 391 371 60.5
W 24 x 131 24.5 12.9 0.605 38.5 131 4020 340 329 53
W 24 x 117 24.3 12.8 0.55 34.4 117 3540 297 291 46.5
W 24 x 104 24.1 12.75 0.5 30.6 104 3100 259 258 40.7
W 24 x 94 24.1 9.07 0.515 27.7 94 2700 109 222 24
W 24 x 84 24.1 9.02 0.47 24.7 84 2370 94.4 196 20.9
W 24 x 76 23.9 9 0.44 22.4 76 2100 82.5 176 18.4
W 24 x 68 23.7 8.97 0.415 20.1 68 1830 70.4 154 15.7
W 24 x 62 23.7 7.04 0.43 18.2 62 1550 34.5 131 9.8
W 24 x 55 23.6 7.01 0.395 16.2 55 1350 29.1 114 8.3

W 21 x 147 22.1 12.51 0.72 43.2 147 3630 376 329 60.1
W 21 x 132 21.8 12.44 0.65 38.8 132 3220 333 295 53.5
W 21 x 122 21.7 12.39 0.6 35.9 122 2960 305 273 49.2
W 21 x 111 21.5 12.34 0.55 32.7 111 2670 274 249 44.5
W 21 x 101 21.4 12.29 0.5 29.8 101 2420 248 227 40.3
W 21 x 93 21.6 8.42 0.58 27.3 93 2070 92.9 192 22.1
W 21 x 83 21.4 8.36 0.515 24.3 83 1830 81.4 171 19.5
W 21 x 73 21.2 8.3 0.455 21.5 73 1600 70.6 151 17
W 21 x 68 21.1 8.27 0.43 20 68 1480 64.7 140 15.7
W 21 x 62 21 8.24 0.4 18.3 62 1330 57.5 127 13.9
W 21 x 57 21.1 6.56 0.405 16.7 57 1170 30.6 111 9.4
W 21 x 50 20.8 6.53 0.38 14.7 50 984 24.9 94.5 7.6
W 21 x 44 20.7 6.5 0.35 13 44 843 20.7 81.6 6.4

W 18 x 119 19 11.27 0.655 35.1 119 2190 253 231 44.9
W 18 x 106 18.7 11.2 0.59 31.1 106 1910 220 204 39.4
W 18 x 97 18.6 11.15 0.535 28.5 97 1750 201 188 36.1
W 18 x 86 18.4 11.09 0.48 25.3 86 1530 175 166 31.6
W 18 x 76 18.2 11.04 0.425 22.3 76 1330 152 146 27.6
W 18 x 71 18.5 7.64 0.495 20.8 71 1170 60.3 127 15.8
W 18 x 65 18.4 7.59 0.45 19.1 65 1070 54.8 117 14.4
W 18 x 60 18.2 7.56 0.415 17.6 60 984 50.1 108 13.3
W 18 x 55 18.1 7.53 0.39 16.2 55 890 44.9 98.3 11.9
W 18 x 50 18 7.5 0.355 14.7 50 800 40.1 88.9 10.7
W 18 x 46 18.1 6.06 0.36 13.5 46 712 22.5 78.8 7.4
W 18 x 40 17.9 6.02 0.315 11.8 40 612 19.1 68.4 6.4
W 18 x 35 17.7 6 0.3 10.3 35 510 15.3 57.6 5.1

W 16 x 100 16.97 10.425 0.585 29.4 100 1490 186 175 35.7
W 16 x 89 16.75 10.365 0.525 26.2 89 1300 163 155 31.4
W 16 x 77 16.52 10.295 0.455 22.6 77 1100 138 134 26.9
W 16 x 67 16.33 10.235 0.395 19.7 67 954 119 117 23.2
W 16 x 57 16.43 7.12 0.43 16.8 57 758 43.1 92.2 12.1
W 16 x 50 16.26 7.07 0.38 14.7 50 659 37.2 81 10.5
W 16 x 45 16.13 7.035 0.345 13.3 45 586 32.8 72.7 9.3
W 16 x 40 16.01 6.995 0.305 11.8 40 518 28.9 64.7 8.3
W 16 x 36 15.86 6.985 0.295 10.6 36 448 24.5 56.5 7
W 16 x 31 15.88 5.525 0.275 9.12 31 375 12.4 47.2 4.5
W 16 x 26 15.69 5.5 0.25 7.68 26 301 9.6 38.4 3.5

W 14 x 132 14.66 14.725 0.645 38.8 132 1530 548 209 74.5
W 14 x 120 14.48 14.67 0.59 35.3 120 1380 495 190 67.5
W 14 x 109 14.32 14.605 0.525 32 109 1240 447 173 61.2
W 14 x 99 14.16 14.565 0.485 29.1 99 1110 402 157 55.2
W 14 x 90 14.02 14.52 0.44 26.5 90 999 362 143 49.9
W 14 x 82 14.31 10.13 0.51 24.1 82 882 148 123 29.3
W 14 x 74 14.17 10.07 0.45 21.8 74 796 134 112 26.6
W 14 x 68 14.04 10.035 0.415 20 68 723 121 103 24.2
W 14 x 61 13.89 9.995 0.375 17.9 61 640 107 92.2 21.5
W 14 x 53 13.92 8.06 0.37 15.6 53 541 57.7 77.8 14.3
W 14 x 48 13.79 8.03 0.34 14.1 48 485 51.4 70.3 12.8
W 14 x 43 13.66 7.995 0.305 12.6 43 428 45.2 62.7 11.3
W 14 x 38 14.1 6.77 0.31 11.2 38 385 26.7 54.6 7.9
W 14 x 34 13.98 6.745 0.285 10 34 340 23.3 48.6 6.9
W 14 x 30 13.84 6.73 0.27 8.85 30 291 19.6 42 5.8
W 14 x 26 13.91 5.025 0.255 7.69 26 245 8.9 35.3 3.5
W 14 x 22 13.74 5 0.23 6.49 22 199 7 29 2.8

W 12 x 136 13.41 12.4 0.79 39.9 136 1240 398 186 64.2
W 12 x 120 13.12 12.32 0.71 35.3 120 1070 345 163 56
W 12 x 106 12.89 12.22 0.61 31.2 106 933 301 145 49.3
W 12 x 96 12.71 12.16 0.55 28.2 96 833 270 131 44.4
W 12 x 87 12.53 12.125 0.515 25.6 87 740 241 118 39.7
W 12 x 79 12.38 12.08 0.47 23.2 79 662 216 107 35.8
W 12 x 72 12.25 12.04 0.43 21.1 72 597 195 97.4 32.4
W 12 x 65 12.12 12 0.39 19.1 65 533 174 87.9 29.1
W 12 x 58 12.19 10.01 0.36 17 58 475 107 78 21.4
W 12 x 53 12.06 9.995 0.345 15.6 53 425 95.8 70.6 19.2
W 12 x 50 12.19 8.08 0.37 14.7 50 394 56.3 64.7 13.9
W 12 x 45 12.06 8.045 0.335 13.2 45 350 50 58.1 12.4
W 12 x 40 11.94 8.005 0.295 11.8 40 310 44.1 51.9 11
W 12 x 35 12.5 6.56 0.3 10.3 35 285 24.5 45.6 7.5
W 12 x 30 12.34 6.52 0.26 8.8 30 238 20.3 38.6 6.2
W 12 x 26 12.22 6.49 0.23 7.7 26 204 17.3 33.4 5.3
W 12 x 22 12.31 4.03 0.26 6.5 22 156 4.7 25.4 2.3
W 12 x 19 12.16 4.005 0.235 5.6 19 130 3.8 21.3 1.9
W 12 x 16 11.99 3.99 0.22 4.7 16 103 2.8 17.1 1.4
W 12 x 14 11.91 3.97 0.2 4.2 14 88.6 2.4 14.9 1.2

W 10 x 112 11.36 10.415 0.755 32.9 112 716 236 126 45.3
W 10 x 100 11.1 10.34 0.68 29.4 100 623 207 112 40
W 10 x 88 10.84 10.265 0.605 25.9 88 534 179 98.5 34.8
W 10 x 77 10.6 10.19 0.53 22.6 77 455 154 85.9 30.1
W 10 x 68 10.4 10.13 0.47 20 68 394 134 75.7 26.4
W 10 x 60 10.22 10.08 0.42 17.6 60 341 116 66.7 23
W 10 x 54 10.09 10.03 0.37 15.8 54 303 103 60 20.6
W 10 x 49 9.98 10 0.34 14.4 49 272 93.4 54.6 18.7
W 10 x 45 10.1 8.02 0.35 13.3 45 248 53.4 49.1 13.3
W 10 x 39 9.92 7.985 0.315 11.5 39 209 45 42.1 11.3
W 10 x 33 9.73 7.96 0.29 9.71 33 170 36.6 35 9.2
W 10 x 30 10.47 5.81 0.3 8.84 30 170 16.7 32.4 5.8
W 10 x 26 10.33 5.77 0.26 7.6 26 144 14.1 27.9 4.9
W 10 x 22 10.17 5.75 0.24 6.5 22 118 11.4 23.2 4
W 10 x 19 10.24 4.02 0.25 5.6 19 96.3 3 18.8 2.1
W 10 x 17 10.11 4.01 0.24 5 17 81.9 3.6 16.2 1.8
W 10 x 15 9.99 4 0.23 4.4 15 68.9 2.9 13.8 1.5
W 10 x 12 9.87 3.96 0.19 3.5 12 53.8 2.2 10.9 1.1

W 8 x 67 9 8.28 0.57 19.7 67 272 88.6 60.4 21.4
W 8 x 58 8.75 8.22 0.51 17.1 58 228 75.1 52 18.3
W 8 x 48 8.5 8.11 0.4 14.1 48 184 60.9 43.3 15
W 8 x 40 8.25 8.07 0.36 11.7 40 146 49.1 35.5 12.2
W 8 x 35 8.12 8.02 0.31 10.3 35 127 42.6 31.2 10.6
W 8 x 31 8 7.995 0.285 9.1 31 110 37.1 27.5 9.3
W 8 x 28 8.06 6.535 0.285 8.3 28 98 21.7 24.3 6.6
W 8 x 24 7.93 6.495 0.245 7.1 24 82.8 18.3 20.9 5.6
W 8 x 21 8.28 5.27 0.25 6.2 21 75.3 9.8 18.2 3.7
W 8 x 18 8.14 5.25 0.23 5.3 18 61.9 8 15.2 3
W 8 x 15 8.11 4.015 0.245 4.4 15 48 3.4 11.8 1.7
W 8 x 13 7.99 4 0.23 3.8 13 39.6 2.7 9.9 1.4
W 8 x 10 7.89 3.94 0.17 2.9 10 30.3 2.1 7.8 1.1

W 6 x 25 6.38 6.08 0.32 7.3 25 53.4 17.1 16.7 5.6
W 6 x 20 6.2 6.02 0.26 5.9 20 41.4 13.3 13.4 4.4
W 6 x 16 6.28 4.03 0.26 4.7 16 32.1 4.4 10.2 2.2
W 6 x 15 5.99 5.99 0.23 4.4 15 29.1 9.3 9.7 3.1
W 6 x 12 6.03 4 0.23 3.6 12 22.1 3 7.3 1.5
W 6 x 9 5.9 3.94 0.17 2.7 9 16.4 2.2 5.6 1.1

W 5 x 19 5.15 5.03 0.27 5.5 19 26.2 9.1 10.2 3.6
W 5 x 16 5.01 5 0.24 4.7 16 21.3 7.5 8.5 3

W 4 x 13 4.16 4.06 0.28 3.8 13 11.3 3.9 5.5 1.9

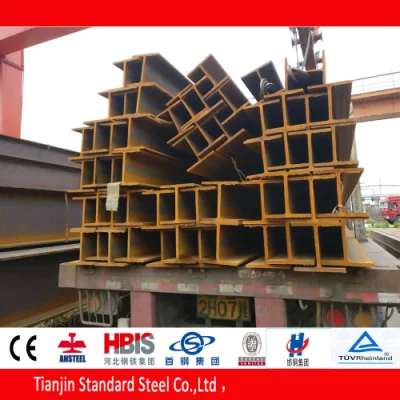

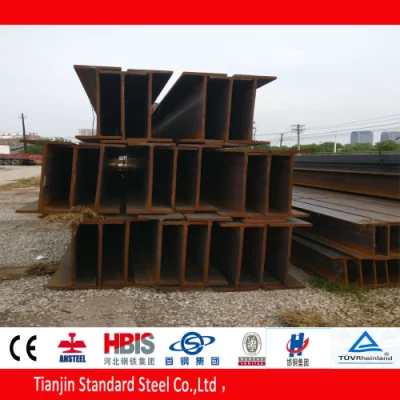

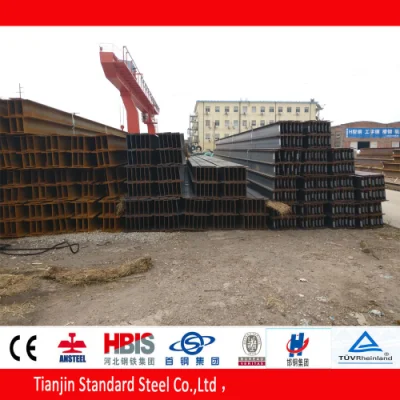

Ipe Structural Steel 1100 Q235B H Beam
Ipe Structural Steel 1100 Q235B H Beam
Ipe Structural Steel 1100 Q235B H Beam
Ipe Structural Steel 1100 Q235B H Beam
Ipe Structural Steel 1100 Q235B H Beam
Ipe Structural Steel 1100 Q235B H Beam




APPLICATIONS FOR I-BEAMS INCLUDE:

· Construction support beams for commercial and residential construction
· Support frames and columns for trolley ways, lifts and hoists
· Mezzanines and platforms
· Trailer and truck bed framing

APPLICATIONS FOR H-BEAMS INCLUDE:

· Construction support beams for commercial and residential construction
· Mezzanines and platforms
· Bridges
· Trailer and truck bed framing
· Machine bases
Tensile Strength, ksi 58-80
Yield Point, ksi 36

Carbon, Max % 0.27
Manganese, Max % 1.20
Phosphorus, Max % 0.04
Sulfur, % 0.05
Silicon, % 0.15 - 0.40
Copper, % 0.20
Incoterm :
1. Payment terms : T/T ;
2. Port of shipment : Tianjin Xingang port , Shanghai port , Qingdao port ;
3. Delivery time : 15 days ;
4. Package : Iron belt fix ,load in container or bulk ;
Our advantage:
Δ We have our professional international trade team , we can deliver the cargo on time as per the contract ; and settle the issues arising during the transportation promptly ;
Δ Good cooperation with reputation miller , the good quality can be well  guaranteed
Δ Provide good after-sale service , we can assign the worker to install the equipment at your site ; if the cargo is damage after reach to your company ,we can settle the problem at the first time ;
Δ We will guarantee the quality for our client from beginning to the end .


How to make the order ?
Δ First step , Please contact with our sales team , talked about the cargo details , if need sample , we can supply the sample for free ;
Δ If the sample can reach to requirement , the client can sign the contract with our company;
Δ Before shipment , client can inspect the cargo loading and seal the container , we also can accept inspection of the third party ( Such as SGS ,BV etc ) ;
Δ After 5 days of shipment , we will send the documents of customs clearance to you ;
Δ  After get the cargo , please give feedback to us ;
