Hsse Spiral Flute Taps for Stainless Steel
Get high-quality HSSE spiral flute taps for stainless steel at our factory. Precision-engineered for superior performance. Shop now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
metric and inch
Pieces
1
Application
Motorize, Manual
Customized
Customized
Transport Package
Plastic Box
Specification
M3 to M30
Trademark
stc
Origin
Jiangsu
HS Code
8207409000
Production Capacity
10000 PCS Per Month

Product Description

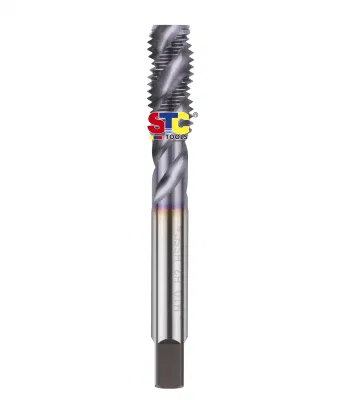

Hsse Spiral Flute Taps for Stainless Steel

Hsse Spiral Flute Taps for Stainless Steel






Pict
STC085-B, HSS MACHINE TAPS, DIN371, SPIRAL FLUTE
Size Pitch  Total Length Thread Length   Size Pitch  Total Length Thread Length   Size Pitch  Total Length Thread Length

M1.4 0.3 40 7   M2.5 0.45 50 9   M6 1 80 19
M1.6 0.35 40 8   M3 0.5 56 11   M7 1 80 19
M1.8 0.35 40 8   M3.5 0.6 56 13   M8 1.25 90 22
M2 0.4 45 8   M4 0.7 63 13   M9 1.25 90 22
M2.2 0.45 45 9   M5 0.8 70 16   M10 1.5 100 24


HSS MACHINE TAPS, DIN376
          Pict





STC086-A, STRAIGHT FLUTE   STC086-B, SPIRAL FLUTE   STC086-C, SPIRAL POINT
Size Pitch  Total Length Thread Length   Size Pitch  Total Length Thread Length   Size Pitch  Total Length Thread Length

M3 0.5 56 11   M3 0.5 56 11   M3 0.5 56 11
M4 0.7 63 13   M4 0.7 63 13   M4 0.7 63 13
M5 0.8 70 16   M5 0.8 70 16   M5 0.8 70 16
M6 1 80 19   M6 1 80 19   M6 1 80 19
M7 1 80 19   M7 1 80 19   M7 1 80 19
M8 1.25 90 22   M8 1.25 90 22   M8 1.25 90 22
M9 1.25 90 22   M9 1.25 90 22   M9 1.25 90 22
M10 1.5 100 24   M10 1.5 100 24   M10 1.5 100 24
M11 1.5 100 24   M11 1.5 100 24   M11 1.5 100 24
M12 1.75 110 29   M12 1.75 110 29   M12 1.75 110 29
M14 2 110 30   M14 2 110 30   M14 2 110 30
M16 2 110 32   M16 2 110 32   M16 2 110 32
M18 2.5 125 34   M18 2.5 125 34   M18 2.5 125 34
M20 2.5 140 34   M20 2.5 140 34   M20 2.5 140 34
M22 2.5 140 34   M22 2.5 140 34   M22 2.5 140 34
M24 3 160 38   M24 3 160 38   M24 3 160 38
M27 3 160 38   M27 3 160 38   M27 3 160 38
M30 3.5 180 45   M30 3.5 180 45   M30 3.5 180 45
M33 3.5 180 60   M33 3.5 180 60   M33 3.5 180 60
M36 4 200 56   M36 4 200 56   M36 4 200 56
M39 4 200 60   M39 4 200 60   M39 4 200 60
M42 4.5 200 60   M42 4.5 200 60   M42 4.5 200 60
M45 4.5 220 65   M45 4.5 220 65   M45 4.5 220 65
M48 5 250 70   M48 5 250 70   M48 5 250 70
M52 5 250 70   M52 5 250 70   M52 5 250 70

Hsse Spiral Flute Taps for Stainless Steel Hsse Spiral Flute Taps for Stainless Steel Hsse Spiral Flute Taps for Stainless Steel Hsse Spiral Flute Taps for Stainless Steel Hsse Spiral Flute Taps for Stainless Steel
