Basic Info.
Brand
Voket / OEM
Standard
Metric, British, American
Application for Machine Tool
Milling
Application
Motorize
Customized
Customized
Product Name
Left Thread Spiral Fluted Tap
Surface Finishing
Whithout Coating
Usage
Machine Cutting
Suitable for
Low Medium High Carbon Steel, Alloy Steel, Stainl
Transport Package
1PC/5PC/10PC Is Loaded Into 1 Plastic Boxes, Wrapp
Specification
4-40L 5-40L 6-32L 8-32L 10-24L 1/4 5/16 3/8 1/2
Origin
China
HS Code
8205100000
Production Capacity
1200000pieces/Year
Packaging & Delivery
Package Size
20.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.260kg
Product Description

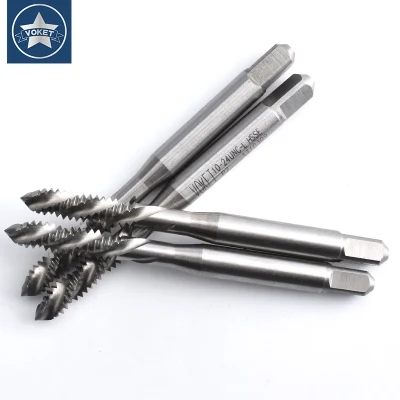

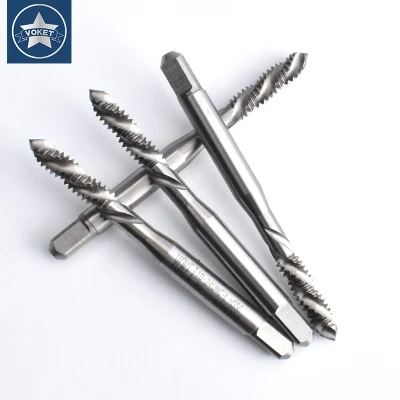

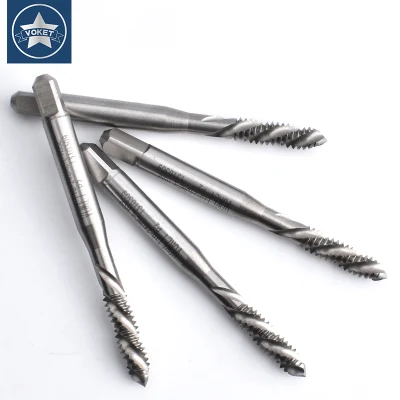

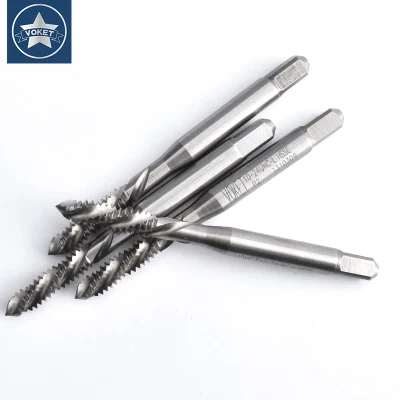

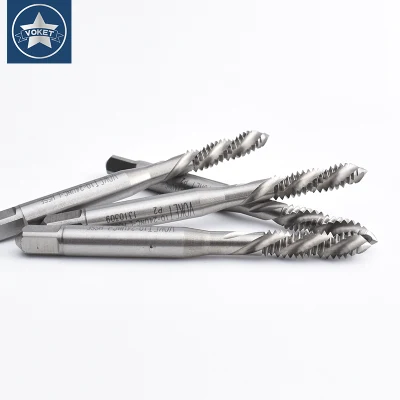

Spiral Fluted Taps
The difference between the spiral wire tap and the general hand tapping is that the ordinary hand taps the groove into a straight line, and the spiral tap is a spiral type. When the spiral wire tapping is tapping, with the spiral rotation of the spiral groove, the iron scrap can be easily discharged outside the hole, so as to prevent the iron filings from remaining or clogging in the groove, causing the wire to break and break the blade portion, so that it can grow. The life of the wire tapping and the cutting of the highest precision thread. Spiral tapping is suitable for cutting high toughness materials, and is not suitable for scraping materials such as cast iron.
| Left Thread Spiral Fluted Tap | Left Thread Spiral Fluted Tap | |
| Material | HSSE-M35 | |
| Standard | JIS | |
| Surface Finishing | Whithout Coating | |
| HRC | 20/30/45/55/60/65 Degrees | |
| Usage | General High Speed Cutting Used On CNC Lathe Used in industrial milling applications such as profile milling, tracer milling, face milling, and plunging | |
| Processing material | Alloy steel, titanium alloy, nickel base alloy, steel, stainless steel, quenched and tempered hardened steel, non-ferrous metals, etc. | |
| Application |
|
