Basic Info.
Model NO.
metric and inch
Application
Motorize, Manual
Customized
Customized
Size
Unc 3/8-16
Transport Package
Plastic Box
Specification
din, ansi, gost iso
Trademark
stc
Origin
Jiangsu
HS Code
82074000
Production Capacity
100000PCS/Month
Product Description

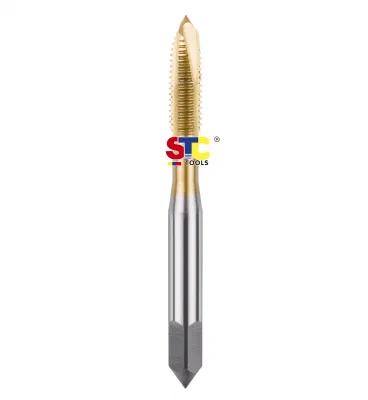

Spiral point taps are ideal for machine tapping through holes or blind holes with adequate bottom clearance. They are called "Gun Taps" because they shoot the chips ahead of the tap. This also reduces loading and clogging in the flutes.
We choose high grade high speed steel to make this taps.
| Size | Overall Length | Thread Length |
| 0-80NF-H1 | 1-5/8 | 5/16 |
| 0-80NF-H2 | 1-5/8 | 5/16 |
| 1-64NC-H1 | 1-11/16 | 3/8 |
| 1-72NC-H1 | 1-11/16 | 3/8 |
| 2-56NC-H2 | 1-3/4 | 7/16 |
| 2-64NF-H2 | 1-3/4 | 7/16 |
| 3-48NC-H2 | 1-13/16 | 1/2 |
| 3-56NF-H2 | 1-13/16 | 1/2 |
| 4-36NS-H2 | 1-7/8 | 9/16 |
| 4-40NC-H2 | 1-7/8 | 9/16 |
| 4-48NF-H2 | 1-7/8 | 9/16 |
| 5-40NC-H2 | 1-15/16 | 5/8 |
| 5-44NF-H2 | 1-15/16 | 5/8 |
| 6-32NC-H3 | 2 | 11/16 |
| 6-40NF-H2 | 2 | 11/16 |
| 6-48NS-H2 | 2 | 11/16 |
| 8-32NC-H3 | 2-1/8 | 3/4 |
| 8-36NF-H2 | 2-1/8 | 3/4 |
| 8-40VN-H2 | 2-1/8 | 3/4 |
| 10-24NC-H3 | 2-3/8 | 7/8 |
| 10-32NF-H3 | 2-3/8 | 7/8 |
| 10-40NS-H2 | 2-3/8 | 7/8 |
| 125-24NC-H3 | 2-3/8 | 15/16 |
| 12-28NF-H3 | 2-3/8 | 15/16 |
| 12-32NEF-H3 | 2-3/8 | 15/16 |
| 1/4-20NC-H3 | 2-1/2 | 1 |
| 1/4-24NS-H3 | 2-1/2 | 1 |
| 1/4-28NF-H3 | 2-1/2 | 1 |
| 1/4-40NS-H2 | 2-1/2 | 1 |
| 5/16-18NC-H3 | 2-23/32 | 1-1/8 |
| 5/16-24NF-H3 | 2-23/32 | 1-1/8 |
| 5/16-32NEF-H3 | 2-23/32 | 1-1/8 |
| 3/8-16NC-H3 | 2-15/16 | 1-1/4 |
| 3/8-24NF-H3 | 2-15/16 | 1-1/4 |
| 3/8-32NEF-H3 | 2-15/16 | 1-1/4 |
| 7/16-14NC-H3 | 3-5/32 | 1-7/16 |
| 7/16-20NF-H3 | 3-5/32 | 1-7/16 |
| 1/2-13NC-H3 | 3-3/8 | 1-21/32 |
| 1/2-20NF-H3 | 3-3/8 | 1-21/32 |
| 1/2-24NS-H3 | 3-3/8 | 1-21/32 |
| 1/2-28NEF-H3 | 3-3/8 | 1-21/32 |
| 9/16-12NC-H3 | 3-19/32 | 1-21/32 |
| 9/16-18NF-H3 | 3-19/32 | 1-21/32 |
| 5/8-11NC-H3 | 3-13/16 | 1-13/16 |
| 5/8-18NF-H3 | 3-13/16 | 1-13/16 |
| 11/16-11VN-H3 | 4-1/32 | 1-13/16 |
| 11/16-16VN-H3 | 4-1/32 | 1-13/16 |
| 3/4-10NC-H3 | 4-1/4 | 2 |
| 3/4-16NF-H3 | 4-1/4 | 2 |
| 3/4-18NS-H3 | 4-1/4 | 2 |
| 7/8-9NC-H4 | 4-11/16 | 2-7/32 |
| 7/8-14NF-H4 | 4-11/16 | 2-7/32 |
| 1-8NC-H4 | 5-1/8 | 2-1/2 |
| 1-12NF-H4 | 5-1/8 | 2-1/2 |
| 1-14NS-H4 | 5-1/8 | 2-1/2 |
| 1-1/8-7NC-H4 | 5-7/16 | 2-9/16 |
| 1-1/8-12NF-H4 | 5-7/16 | 2-9/16 |
| 1-1/4-7NC-H4 | 5-3/4 | 2-9/16 |
| 1-1/4-12NF-H4 | 5-3/4 | 2-9/16 |
| 1-3/8-6NC-H4 | 6-1/16 | 3 |
| 1-3/8-12NF-H4 | 6-1/16 | 3 |
| 1-1/2-6NC-H4 | 6-3/8 | 3 |
| 1-1/2-12NF-H4 | 6-3/8 | 3 |
