Basic Info.
Model NO.
din 371 machine taps
Application
Motorize, Manual
Customized
Non-Customized
Size
M2 to M10
Transport Package
on request
Specification
m2 to m10
Trademark
stc
Origin
Jiangsu
HS Code
82074000
Production Capacity
5000pcs/month

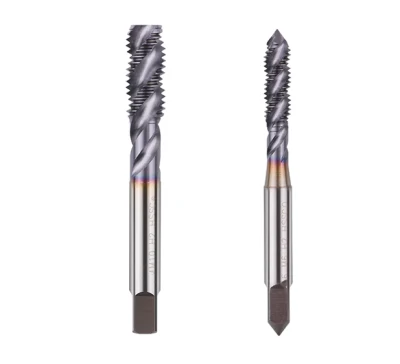

Product Description
Straight flutes, Chamfer form A (5-6threads lead) Ground profile and relief ground flanks.
For through holes. Chips are forced ahead in tapping direction

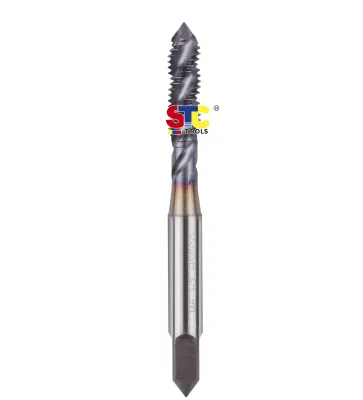

Straight flutes with spiral point, Chamfer form B (4-5 threads lead)
(2-3 threads lead).
Ground profile and relief ground flanks.
For through holes with 2 x d.

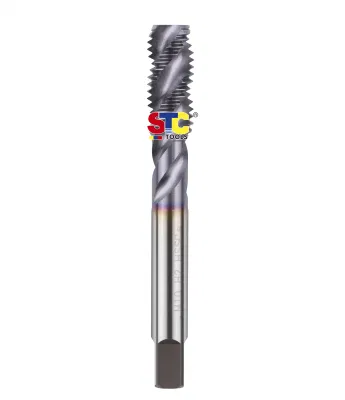

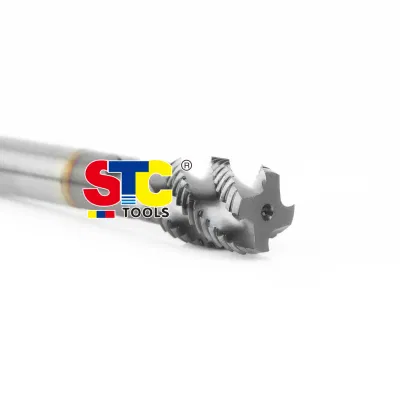

35 degree Spiral flutes, Chamfer form C
(2-3 threads lead).
Ground profile and relief ground flanks.
For blind holes with 2 x d.
Chips are forced out of the hole against
Tapping direction.
15 degree low spiral flute available on request.
| Nominal | Pitch | Thread | Total | Thread |
| thread | mm | core hole | length | length |
| size | mm | mm | mm | |
| M 2 | 0,40 | 1,60 | 45,0 | 8,0 |
| M 2,5 | 0,45 | 2,05 | 50,0 | 9,0 |
| M 3 | 0,50 | 2,50 | 56,0 | 10,0 |
| M 4 | 0,70 | 3,30 | 63,0 | 12,0 |
| M 5 | 0,80 | 4,20 | 70,0 | 13,0 |
| M 6 | 1,00 | 5,00 | 80,0 | 13,0 |
| M 8 | 1,25 | 6,80 | 90,0 | 18,0 |
| M 10 | 1,50 | 8,50 | 100,0 | 20,0 |
