Basic Info.
Model NO.
M5*0.8
Pieces
3PCS
Application
Motorize, Manual
Customized
Non-Customized
Tolerance
6h
Surface Finishing
Tin Finished
Type
Tap
Sample
Available
Transport Package
Plastic Box
Specification
M5X0.8
Trademark
STARRY
Origin
Yangzhou
HS Code
82074000
Production Capacity
300000PCS Per Mouth
Product Description

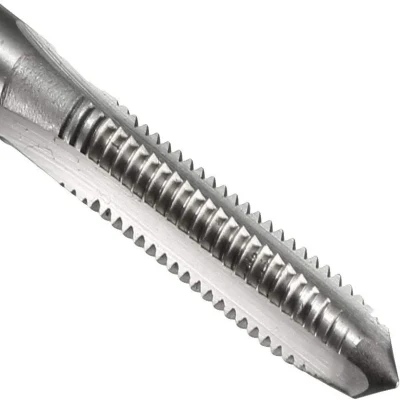

- Thread Size: M5x 0.8mm. High-speed steel metric taps are with high hardness and toughness for wear resistance, well suited for general purpose applications.
- The thread tap can make new threads or re-thread damaged or jammed threads. Uncoated taps feature just the base substrate without any additional coatings, and fit a wide range of applications.
- Suitable for processing through holes or shallow holes on most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add appropriate tapping oil for higher quality internal threads and more durable taps.

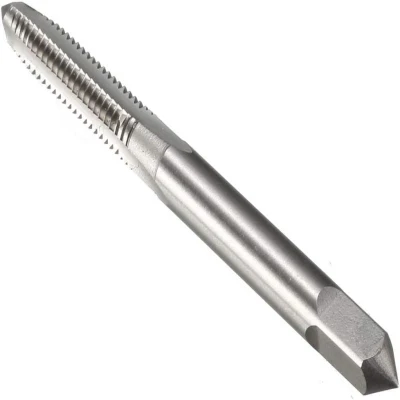

- Straight flute design, rapid downward chip removal for efficient threading, clear threads without burrs, right hand tapping direction. Good for processing through holes or shallow holes

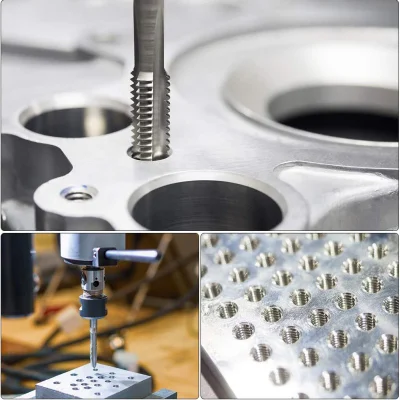

- Machine taps used with drilling machines, tapping machines, automatic machines, machining centers, CNC, milling machines, not recommended for hand and electric drill tapping. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.

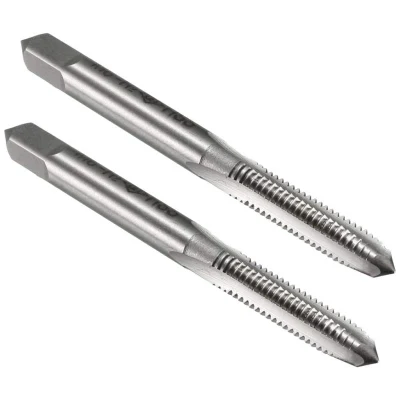

| Product name | JIS HSS-M2 Straight Flute Smoothly Cut Hand Tap |
| Flute Type | Straight Flute ( Spiral Point is Available) |
| Standard | JIS |
| Process | Fully ground |
| Size | M1-M50 |
| Surface | Bright Finish (Tin-coated, other High Performance Coating are Available) |
| Shank Type | Square Shank |
| Package | 1Pieces in One Plastic Box |
| Thread Type | M/MF, UNC/UNF are Available |
| Features | 1.Ideal for rethreading fasteners and fastener holes for auto and machinery repair. 2.Precision milled sae tap and die set for cutting raw material or repair existing threads, remove screws and more function. 3.It can improve the efficiency of processing thread, a necessary tool for hand tapping operation 4.The straight flute is the standard style of tap, designed for a range of different tapping applications. 5.A straight flute tap can be used in through or blind holes. |

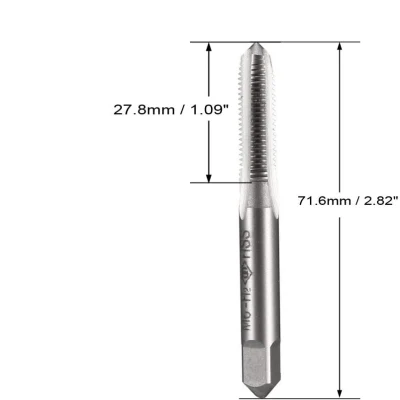

| Size | Overall Len | Thread Len | |||
| M1x0.2 | 30 | 6 | |||
| M1x0.25 | 30 | 8 | |||
| M1.1x0.2 | 32 | 6 | |||
| M1.1x0.25 | 32 | 9 | |||
| M1.2x0.2 | 32 | 6 | |||
| M1.2x0.25 | 32 | 9 | |||
| M1.4x0.2 | 34 | 6 | |||
| M1.4x0.3 | 34 | 11 | |||
| M1.6x0.2 | 36 | 6 | |||
| M1.6x0.35 | 36 | 13 | |||
| M1.7x0.2 | 36 | 6 | |||
| M1.7x0.35 | 36 | 13 | |||
| M1.8x0.2 | 36 | 6 | |||
| M1.8x0.35 | 36 | 13 | |||
| M2x0.25 | 40 | 8 | |||
| M2x0.4 | 40 | 15 | |||
| M2.2x0.25 | 42 | 8 | |||
| M2.2x0.45 | 42 | 15 | |||
| M2.3x0.4 | 42 | 15 | |||
| M2.5x0.35 | 44 | 10 | |||
| M2.5x0.45 | 44 | 16 | |||
| M2.6x0.45 | 44 | 16 | |||
| M3x0.35 | 46 | 10 | |||
| M3x0.5 | 46 | 18 | |||
| M3.5x0.35 | 48 | 10 | |||
| M3.5x0.6 | 48 | 18 | |||
| M4x0.5 | 52 | 15 | |||
| M4x0.7 | 52 | 20 | |||
| M4x0.75 | 52 | 20 | |||
| M4.5x0.5 | 52 | 15 | |||
| M4.5x0.75 | 55 | 20 | |||
| M5x0.5 | 52 | 15 | |||
| M5x0.8 | 60 | 22 | |||
| M5.5x0.5 | 52 | 15 | |||
| M6x0.75 | 62 | 20 | |||
| M6x1 | 62 | 24 | |||
| M7x0.75 | 62 | 20 | |||
| M7x1 | 65 | 26 | |||
| M8x0.75 | 62 | 20 | |||
| M8x1 | 70 | 30 | |||
| M8x1.25 | 70 | 30 | |||
| M9x0.75 | 62 | 20 | |||
| M9x1 | 70 | 30 | |||
| M9x1.25 | 72 | 30 | |||
| M10x0.75 | 62 | 20 | |||
| M10x1 | 70 | 30 | |||
| M10x1.25 | 75 | 32 | |||
| M10x1.5 | 75 | 32 | |||
| M11x0.75 | 62 | 20 | |||
| M11x1 | 70 | 30 | |||
| M11x1.5 | 80 | 38 | |||
| M12x1 | 70 | 30 | |||
| M12x1.25 | 80 | 38 | |||
| M12x1.5 | 82 | 38 | |||
| M12x1.75 | 82 | 38 | |||
| M14x1 | 70 | 30 | |||
| M14x1.25 | 88 | 42 | |||
| M14x1.5 | 88 | 42 | |||
| M14x2 | 88 | 42 | |||
| M15x1 | 70 | 30 | |||
| M15x1.5 | 90 | 42 | |||
| M16x1 | 75 | 30 | |||
| M16x1.5 | 95 | 45 | |||
| M16x2 | 95 | 45 | |||
| M17x1 | 80 | 30 | |||
| M17x1.5 | 95 | 45 | |||
| M18x1 | 80 | 30 | |||
| M18x1.25 | 95 | 45 | |||
| M18x1.5 | 95 | 45 | |||
| M18x2 | 95 | 45 | |||
| M18x2.5 | 100 | 48 | |||
| M20x1 | 80 | 30 | |||
| M20x1.5 | 95 | 45 | |||
| M20x2 | 95 | 45 | |||
| M20x2.5 | 105 | 50 | |||
| M22x1 | 85 | 30 | |||
| M22x1.5 | 95 | 45 | |||
| M22x2 | 95 | 45 | |||
| M22x2.5 | 115 | 55 | |||
| M24x1 | 90 | 30 | |||
| M24x1.5 | 95 | 45 | |||
| M24x2 | 95 | 45 | |||
| M24x3 | 120 | 58 | |||
| M25x1 | 95 | 30 | |||
| M25x1.5 | 95 | 45 | |||
| M25x2 | 95 | 45 | |||
| M26x1.5 | 95 | 45 | |||
| M26x3.5 | 130 | 62 | |||
| M27X1 | 95 | 30 | |||
| M27x1.5 | 95 | 45 | |||
| M27x2 | 95 | 45 | |||
| M27x3 | 130 | 62 | |||
| M28x1 | 105 | 30 | |||
| M28x1.5 | 105 | 45 | |||
| M28x2 | 105 | 45 | |||
| M30x1 | 105 | 30 | |||
| M30x1.5 | 105 | 45 | |||
| M30x2 | 105 | 45 | |||
| M30x3 | 135 | 65 | |||
| M30x3.5 | 135 | 65 | |||
| M32x1.5 | 105 | 45 | |||
| M32x2 | 105 | 45 | |||
| M32x3.5 | 145 | 70 | |||
| M33x1.5 | 110 | 45 | |||
| M33x2 | 110 | 45 | |||
| M33x3 | 145 | 70 | |||
| M33x3.5 | 145 | 70 | |||
| M34x3.5 | 145 | 70 | |||
| M35x1.5 | 110 | 45 | |||
| M36x1.5 | 110 | 45 | |||
| M36x2 | 110 | 45 | |||
| M36x3 | 155 | 75 | |||
| M36x4 | 155 | 75 | |||
| M38x1.5 | 115 | 45 | |||
| M39x1.5 | 115 | 45 | |||
| M39x2 | 115 | 45 | |||
| M39x3 | 165 | 80 | |||
| M39x4 | 165 | 80 | |||
| M40x1.5 | 115 | 45 | |||
| M40x2 | 115 | 45 | |||
| M40x3 | 165 | 80 | |||
| M42x1.5 | 120 | 45 | |||
| M42x2 | 120 | 45 | |||
| M42X3 | 175 | 80 | |||
| M42x4 | 175 | 80 | |||
| M42x4.5 | 175 | 85 | |||
| M45x1.5 | 120 | 45 | |||
| M45x2 | 120 | 45 | |||
| M45x3 | 180 | 80 | |||
| M45x4 | 180 | 80 | |||
| M45x4.5 | 180 | 85 | |||
| M48x1.5 | 125 | 45 | |||
| M48x2 | 125 | 45 | |||
| M48x3 | 180 | 80 | |||
| M48x4 | 180 | 80 | |||
| M48x5 | 185 | 90 | |||
| M50x1.5 | 130 | 45 | |||
| M50x2 | 130 | 45 | |||
| M50x3 | 180 | 80 | |||
1. Package:Plastic box,
2. Delivery:35 Days after your deposite
3. Shipping:By sea,By air,if small order,we can provide the Express.
