Basic Info.
Product Description

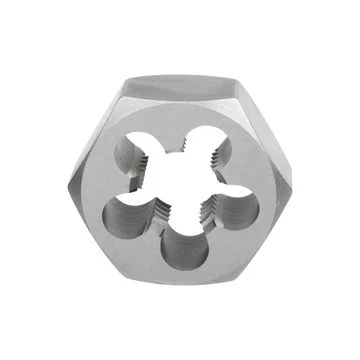

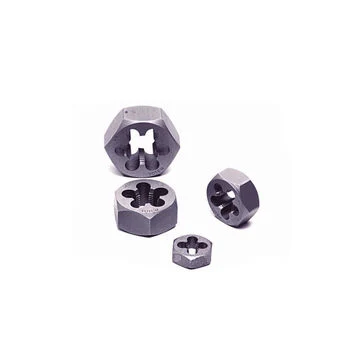

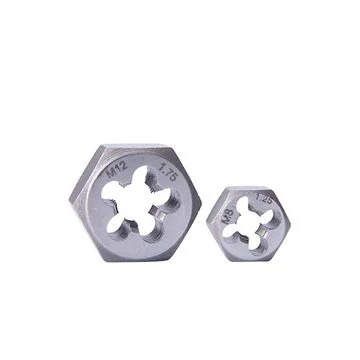

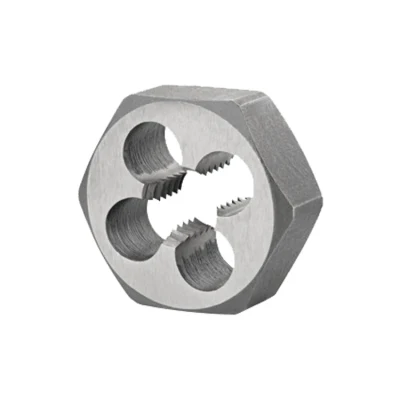

Product Name:DIN382 Hexagon Die Nuts
Material:HSS (Alloy Steel is Available)
Process:Fully Ground
Standard:ANSI (DIN382 is Available)
Size:M3x0.5 to M80x6.0
Thread Type:M (MF, UNC, UNF, BSW, BSP, PG are Available)
Shape:Hexagon Nut Shape (Round Shape is Available)
Surface Finish:Bright Finish

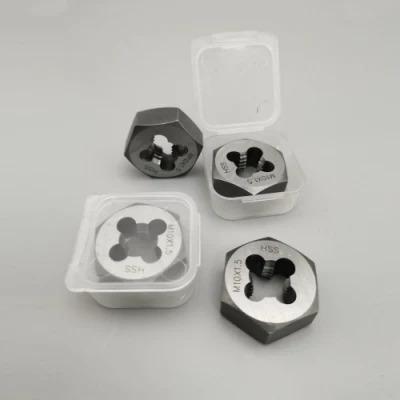

Package:One Piece in One Plastic Box
Features:
1. Dies are used to cut or clean an external thread.
2. Dies are best used with a three screw die stock which aids in the alignment when repairing threads.
3. Round Adjustable Dies are made with a slot in the circumference and a special screw to allow for cutting a slightly smaller size.
4. Hex rethreading dies are used in repair of rusty and/or damaged threads.
5. The chips are discharged through the plane holes in round dies.
6. They are either used for manual use of die holders or clamped into the quill to use in a turning lathe.
