Hot Sale Automatic 3 Die 6 Blow for Screw Production Line

Get the best deal on our Hot Sale Automatic 3 Die 6 Blow for Screw Production Line. As a factory, we ensure top quality and competitive prices.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
3610
Size
2.0/3.5/1.8mm
Voltage
380V
Machine Color
Green
Transport Package
Wooden Box
Specification
2b4b/3d6b/4D8B
Trademark
HYJ
Origin
Guangdong, China
HS Code
8462991000
Production Capacity
100PCE/Min

Product Description

High-speed automatic Multi-stage /station cold Heading Machine

Product Specification:
Model description Die quantity blow quantity Max cut-off diameter Max cut-off length Main die punch Cut-off die Main
motor
Pump motor stress size Out put NET WEIGHT
2415L 2 4 7 55 46*100 31*85 19 5HP 1/4HP 15TON 195*110*115 60-100 2300
3615L 3 6 7 55 46*100 31*85 19 5HP 1HP 15TON 230*126*140 50-80 3100
3625L 3 6 12 100 58*100 38*105 32 10HP 1HP 40TON 315*175*162 40-65 8000
3610 3 6 5 35 34.5*80 24*60 19 2HP 1/4HP 10Ton 165*100*100 60-100 2000
3615L 3 6 7 55 46*100 31*85 19 5HP 1HP 15Ton 230*126*140 50-80 3100
3625L 3 6 12 100 58*150 38*105 32 10HP 1HP 40Ton 315*175*162 40-65 8000
3630 3 6 16 150 80*200 50*120 40 20HP 1HP 65Ton 430*200*185 40-50 13000
3640 3 6 20 200 80*250 58*150 45 30HP 1HP 90Ton 451*265*200 30-50 18000
2410 2 4 5 35 34.5*70 24*60 19 2HP 1/4HP 10Ton 165*100*100 80-120 1200
2415S 2 4 5 35 46*85 37*70 19 3HP 1/4HP 15Ton 195*110*115 60-100 2200
2415L 2 4 7 55 46*100 31*85 19 5HP 1/4HP 15Ton 195*110*115 60-100 2300
2420 2 4 7 45 50*97 31*80 28 5HP 1/4HP 20Ton 260*137*140 50-70 3900
2425 2 4 10 75 58*127 38*100 32 7.5HP 1/4HP 25Ton 305*154*162 40-65 5250
2425L 2 4 12 100 58*150 38*105 32 10HP 1HP 25Ton 305*154*162 40-65 6500
2430 2 4 13 100 80*150 50*120 40 15HP 1HP 65Ton 400*185*185 40-50 10000
2440 2 4 15 150 80*220 58*150 45 25HP 1HP 80Ton 451*210*200 35-50 14200
5B4S 4 4 3 35 30*50 25*55 19*30 5HP   10Ton   150-250 2600
7B4S 4 4 5 40 46*100 31*80 19*35 10HP   20Ton   150-250 4500
10B4S 4 4 8 60 50*100 40*80 28*46 15HP   40Ton   150-200 8000

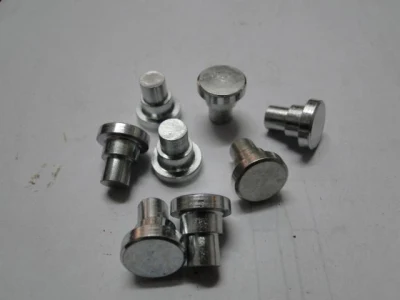

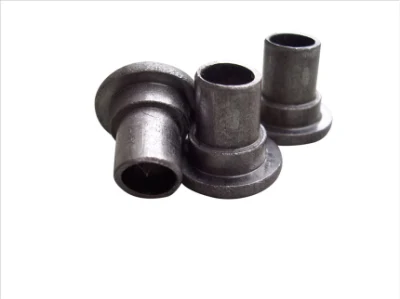

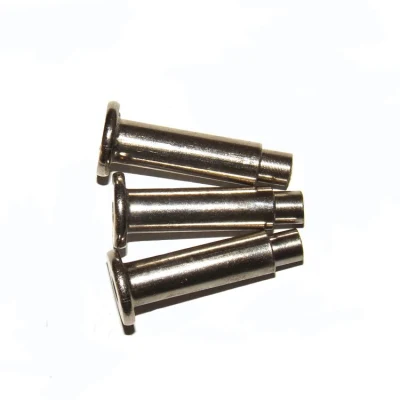

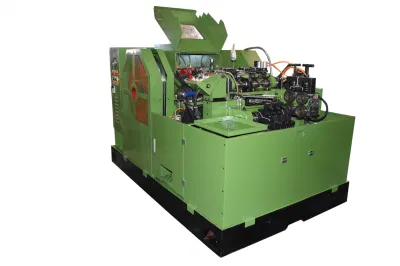

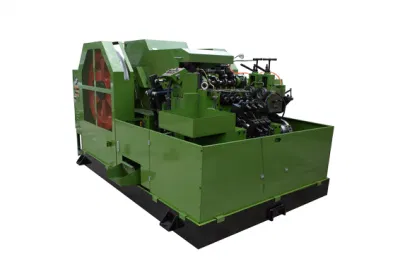

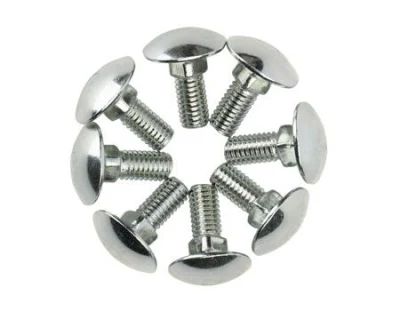

Product Picture:
Hot Sale Automatic 3 Die 6 Blow for Screw Production Line
Hot Sale Automatic 3 Die 6 Blow for Screw Production Line

Hot Sale Automatic 3 Die 6 Blow for Screw Production Line

Hot Sale Automatic 3 Die 6 Blow for Screw Production Line
Hot Sale Automatic 3 Die 6 Blow for Screw Production Line

Hot Sale Automatic 3 Die 6 Blow for Screw Production Line
Dongguan Haoyijia machine is a professional company, focusing on manufacturing automatic combination machines, such as full automatic washers and Screws Assembly Machine (spring washer machine and meson machine ),Cold Header Machine, Thread Rolling machine and Sorting Machine ect.
Over years' R&D, our products are achieving to the top level in China, so we could meet all customers' requirement,any interesting,pls don't hesitation to contact us now.
Hot Sale Automatic 3 Die 6 Blow for Screw Production Line Hot Sale Automatic 3 Die 6 Blow for Screw Production Line
Hot Sale Automatic 3 Die 6 Blow for Screw Production Line

Hot Sale Automatic 3 Die 6 Blow for Screw Production Line
Why choose us

1. Create value for our valuable customers
    we always provide good quality and nice design products to meet the needs of the customers, we are the leader in this field and we always provide good products and service to our valuable customers.

2. Better quality and service with lower price
    we always supply the better price on the same quality level, and try our best to save the client's every cent.

3. Dare to innovation.
  Every year, our company will develop the new products to meet the market need.

FAQ

Q: what's the packing of the machine?
A.In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.

Q: What's the payment term?
A.Usually by T/T ( 30% in advance, the balance shoud be paid shipping before)

Q: Can I change the motor as my local voltage?
A.We can change the voltage as your requirement, and there's no extra charge.

Q: How do your control quality?
A.W have an inspection team to check the products at all stages of the production process.

Q:What parameter is necessary?
A.The nail diameter, nail length ect are mainly needed, detailed information would be appreciated, Special requirement can be discussed.

Q:How long will it take to deliver goods?
A:We will deliver the goods within 10 days for spare parts, other goods maybe take a little more times to test and prepare, we will deliver the goods within the deadline which both parties agreehainiud.
Delivery& Packing
Hot Sale Automatic 3 Die 6 Blow for Screw Production Line

Dongguan Haoyijia Machine will do the best to provide the best quality products and first-class service to the customers,looking forward to cooperating with you~
