Horizontal Centrifugal Double Suction Flood Control Stainless Steel Split Case Water Pump

Get high-quality horizontal centrifugal double suction flood control stainless steel split case water pump from our factory. Durable and efficient design." Manufacturer of horizontal centrifugal double suction flood control stainless steel split case water pump. High quality and reliable performance. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
QS Split Casing Pump
Influent Type of Impeller
Double-Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump
Condition
New Centrifugal Large Flow Hospital Feed Water Pum
Driver
Diesel Engine or Electrical Motor
Stages
1
After Sales Service
Engineers Available to Service Machinery Overseas
Certificate
TUV/SGS/ISO/CE/BV
Transport Package
Fumigated Wooden Case
Specification
Class One
Trademark
An Pump
Origin
China
HS Code
8413709990
Production Capacity
100 Sets/Month

Product Description

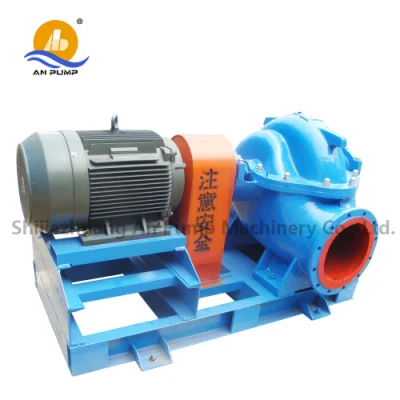

Horizontal Centrifugal Double Suction Flood Control Stainless Steel Split Case Water Pump

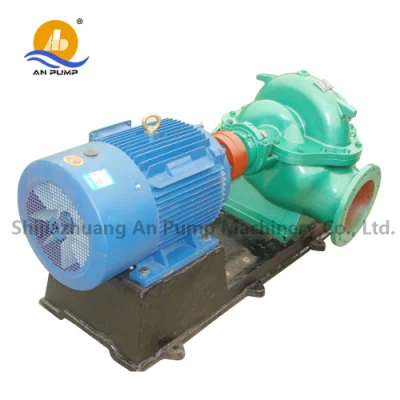

Horizontal Centrifugal Double Suction Flood Control Stainless Steel Split Case Water Pump

Overview of Centrifugal Large Flow Hospital Feed Water Pump
Model QS Horizontal split case Fire pump is a single-stage double-suction horizontal split centrifugal pump and used to transport pure water and the liquid of both physical and chemical nature similar to those of water, the maximum temperature of which must not be over 80ºC , suitable for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage and irrigation of farming land and carious hydraulic projects.


Application for Centrifugal Large Flow Hospital Feed Water Pump
Aerospace                      Oil & Gas
Building industry                Power Station
Chemical                       Petro-Chemical
General Industry                Pharmaceutical
Marine                         Pulp & Paper
Mining & Aggregate            Water & Waste water

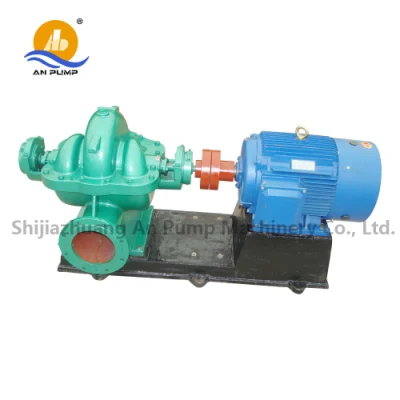

Horizontal Centrifugal Double Suction Flood Control Stainless Steel Split Case Water Pump

Industry  Plumbing Applications
General water supply Circulation of HVAC building systems, water booster service, boiler feed, general circulation service and more.
Agriculture / Food / Beverage Irrigation, water supply, food processing beverage processing, fertilizers.
Manufacturing Pulp and paper fans, plastic & rubber, metal & steel, pharmaceutical, paper mills, air wash, marine ballast service.
Fire / Disaster Relief Fire pumps, fire protection, flood control, disaster relief, federal.
Utilities : Water / Wastewater Power Generation stations, dewatering, desalination, energy recovery turbines
Chemical / Mining Chemical plants, refineries, petroleum distribution, coal sites, ethylene glycol pumping.



Advantages about Centrifugal Large Flow Hospital Feed Water Pump
20 years in producing
Independent Design
advanced technology from Australia, Canada, America
Specialized Test Equipment
Anti-rust treatment casting
Supply reasonable suggestion for choosing pumps
OEM available



Pump Structure about Centrifugal Large Flow Hospital Feed Water Pump

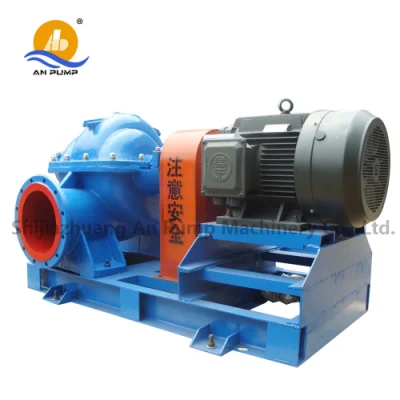

Horizontal Centrifugal Double Suction Flood Control Stainless Steel Split Case Water Pump
1.Casing for Centrifugal horizontal Large flow pump farming irrigation equipment
The volute casing is split on the horizontal centerline with the suction and discharge nozzle cast integral with the pump casing. The upper casing is accurately located on the lower half by the use of dowel pins. The upper casing can be removed to inspect the interior of the pump without disturbing the pipe connections or pump alignment. The suction and discharge flanges contain tapped holes for vacuum and pressure gauge. At the bottom of the flanges, there are tapped plugs for water drainage.
2. Impeller
The impeller is static-balance calibrated, fixed with the muff and the muff nuts in both sides and its axial position can be adjusted via the nuts and axial force gets balanced by means of the symmetrical arrangement of its blades, there may be residual axial force which is borne by the bearing at the axle end.
3. Shaft
The pump shaft is supported by two single-column centripetal ball bearings, which are mounted inside of the bearing body on both ends of the pump and lubricated with grease. The dual-suction seal ring is used to reduce the leak at the impeller
4. Seal Type
There is gland seal type and mechanical seal type.

Direction of Rotation about Centrifugal Large Flow Hospital Feed Water Pump

The Horizontal large volume double suction axially spilt casing centrifugal pump moves CW viewing from the clutch to it. The pump moving CCW can also be produced.



Materials about Centrifugal Large Flow Hospital Feed Water Pump
Irrigation pump general material is cast iron, main include pump casing, pump cover, impeller, seal ring and shaft sleeve, shaft is carbon steel. We could also produce as your requirements, such as nodular cast iron, cast steel, bronze and stainless steel etc.





Centrifugal Large Flow Hospital Feed Water Pump performance:
Model
QS
Flow rate
(m3/h)
Head
(m)
Speed
(rpm)
Power
(KW)
QS150 110~220 35~84 2900 30~55
QS200 160~351 31~100 2900 37~110
QS250 324~612 8.6~71 1450 22~132
QS300 504~972 8~98 1450 30~300
QS350 745~1663 10~140 1450 55~680
QS400 900~1620 32~98 980~1480 155~500
QS500 1150~2450 10.6~108 740~970 110~800
QS600 2304~4000 13~80 730~970 185~900
QS700 2111~4896 39.5~99.5 740~980 560~1250
QS800 3960~7200 23.5~84 600~740 450~1600
QS1000 6000~9900 32~52 600~990 1250
QS1200 5832~14400 6~95.7 500~745 710~3450




Packaging and shipping about Centrifugal Large Flow Hospital Feed Water Pump

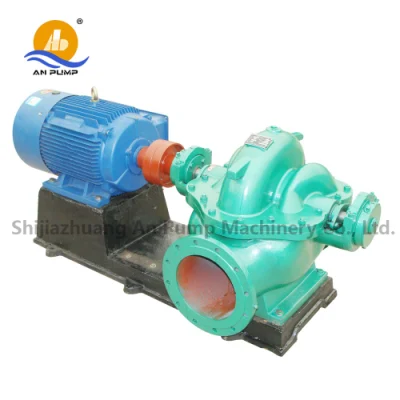

Horizontal Centrifugal Double Suction Flood Control Stainless Steel Split Case Water Pump


RFQ:
Centrifugal Large Flow Hospital Feed Water Pump types
Fire pumps are usually used for supply water as the fire fighting systems booster, and then ensure the continuously water supply. If on fire, can extinguishment in a quick way.
The fire pumps can have below types:
As projects:
It have fire fighting truck pump, marine fire fighting pump, construction fire fighting pump, and some other fire pumps. Different projects, will have different names, but the function is same. However the pump construction will have little different. We can choose the better solutions for different projects.
As application:
It will have water supply fire fighting pump, and booster fire pump.


Centrifugal Large Flow Hospital Feed Water Pump power loss
There only a part of the mechanical power of the centrifugal pump getting from the driver equipment, convert to the centrifugal power and then delivered to the liquid power. The another part was loss. The reasons are below:
1. Hydraulic loss: Created for the liquid impact, vortex and friction in the pump. The impact and vortex hydraulic loss is because of the the liquid change the flow direction. Besides, when the liquid flow, it will have friction when meet the pump passageway.This kind of loss depend on the length, volume, shape, and surface roughness of the passageway and the liquid flow speed and other character.
2. Volume loss: It resulted for the powered liquid will channeling are leakage. The general pump volume efficiency is 0.93~0.98%. Improve the seal ring and shaft seal construction, can reduce the volume loss and increase the volume efficiency.
3. Mechanical loss: It is caused by the friction of liquid and impeller plate surface, also named dick friction loss of impeller, and the pump shaft friction when rotated in the packing, bearing, balancing parts and other mechanical parts.

Horizontal Centrifugal Double Suction Flood Control Stainless Steel Split Case Water Pump
