High Speed Steel Straight Flute Taps

Get durable and precise High Speed Steel Straight Flute Taps at our factory. We offer high-quality tapping solutions for your industrial needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
metric
Customized
Customized
Size
M3 to M52
Transport Package
Industrial
Specification
ansi, bs, iso, din, gost
Trademark
stc
Origin
Jiangsu
HS Code
82074000
Production Capacity
100000PCS/Month

Product Description

High Speed Steel Hand Taps with straight flutes are designed for general purpose hand tapping or in production machines where ground thread accuracy and performance are required. They are suitable for tapping most materials in through or blind holes. Hand taps retain chips in the flutes during use and work best on materials that produce chips and the swarf breaks easily.

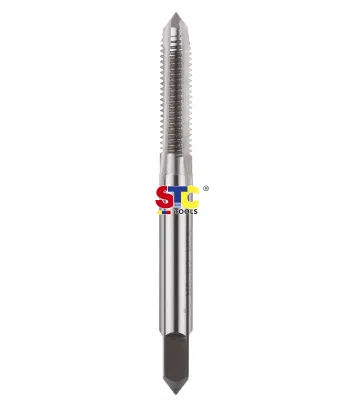

High Speed Steel Straight Flute Taps

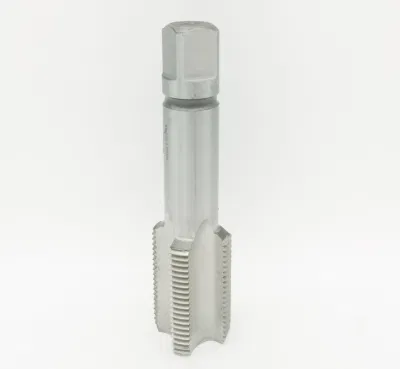

High Speed Steel Straight Flute Taps

High Speed Steel Straight Flute Taps High Speed Steel Straight Flute Taps High Speed Steel Straight Flute Taps High Speed Steel Straight Flute Taps High Speed Steel Straight Flute Taps High Speed Steel Straight Flute Taps

STC084, HSS HAND TAPS, DIN352, 3PCS/SET
Straight Flute, Tolerance 6H. Right Hand Cutting. ISO fine Thread to DIN13. In set of three for each size.
Pict

        Pict



  Pict





TAPER   PLUG   BOTTOMING
Size Pitch  Total Length Thread Length   Size Pitch  Total Length Thread Length   Size Pitch  Total Length Thread Length

M1 0.25 32 5.5   M4.5 0.75 50 14   M24 3 110 50
M1.1 0.25 32 5.5   M5 0.8 50 14   M27 3 110 50
M1.2 0.25 32 5.5   M5.5 0.9 50 16   M30 3.5 125 56
M1.4 0.3 32 7   M6 1 50 16   M33 3.5 125 56
M1.6 0.35 32 8   M7 1 50 18   M36 4 150 63
M1.7 0.35 32 8   M8 1.25 56 22   M39 4 150 63
M1.8 0.35 32 8   M9 1.25 63 22   M42 4.5 150 63
M2 0.4 36 8   M10 1.5 70 24   M45 4.5 160 70
M2.2 0.45 36 9   M11 1.5 70 24   M48 5 180 75
M2.3 0.4 36 9   M12 1.75 75 29   M52 5 180 75
M2.5 0.45 40 9   M14 2 80 30   M56 5.5 200 85
M2.6 0.45 40 9   M16 2 80 32   M60 5.5 200 85
M3 0.5 40 10   M18 2.5 95 40   M64 6 220 90
M3.5 0.6 45 12   M20 2.5 95 40   M68 6 220 90
M4 0.7 45 12   M22 2.5 100 40   M72 6 220 90

STC230, HSS HAND TAPS, DIN2181, 2PCS/SET
Straight Flute. Tolerance 6H. Right Hand Cutting. ISO Fine Thread to DIN13. In set of 2pcs for each size.
    Pict



Pict






Size Pitch  Total Length Thread Length   Size Pitch  Total Length Thread Length   Size Pitch  Total Length Thread Length

M2x0.25 0.25 36 8   M12x1 1 70 22   M24x2 2 90 22
M2.2x0.25 0.25 36 9   M12x1.25 1.25 70 22   M26x1.5 1.5 90 22
M2.3x0.25 0.25 36 9   M12x1.5 1.5 70 22   M27x1.5 1.5 90 22
M2.5x0.35 0.35 40 9   M14x1 1 70 22   M27x2 2 90 22
M2.6x0.35 0.35 40 9   M14x1.25 1.25 70 22   M28x1.5 1.5 90 22
M3x0.35 0.35 40 9   M14x1.5 1.5 70 22   M30x1 1 90 22
M3.5x0.35 0.35 45 10   M15x1 1 70 22   M30x1.5 1.5 90 22
M4x0.35 0.35 45 10   M15x1.5 1.5 70 22   M30x2 2 90 22
M4x0.5 0.5 45 12   M16x1 1 70 22   M32x1.5 1.5 90 22
M5x0.5 0.5 50 14   M16x1.5 1.5 70 22   M33x1.5 1.5 100 25
M6x0.6 0.5 50 14   M18x1 1 80 22   M34x1.5 1.5 100 25
M6x0.75 0.75 50 14   M18x1.5 1.5 80 22   M35x1.5 1.5 100 25
M7x0.75 0.75 50 19   M18x2 2 80 22   M36x1.5 1.5 100 25
M8x0.5 0.5 50 19   M20x1 1 80 22   M36x3 3 125 40
M8x0.75 0.75 50 22   M20x1.5 1.5 80 22   M38x1.5 1.5 100 25
M8x1 1 63 22   M20x1 2 80 22   M40x1.5 1.5 110 25
M9x1 1 63 20   M22x1 1 80 22   M42x1.5 1.5 110 24
M10x0.75 0.75 63 20   M22x1.5 1.5 80 22   M45x1.5 1.5 110 25
M10x1 1 70 24   M22x1 2 80 22   M48x1.5 1.5 140 40
M10x1.25 1.25 63 22   M24x1 1 90 22   M52x1.5 1.5 140 40
M11x1 1 70 22   M24x1.5 1.5 90 22
