High Speed Steel Round Adjustable Pipe Threading Die

Looking for a high-quality High Speed Steel Round Adjustable Pipe Threading Die? Look no further! We are a factory with a wide selection of durable and reliable tools.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • SIZE
  • Application
  • WORKSHOP
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
3/4-10 Nc
Pieces
1
Application
Motorize, Manual
Customized
Non-Customized
Surface Finishing
Bright
Usage
Machine Tools
Flute Type
Roll
Product Name
Round Die
Transport Package
Cartons
Specification
3/4-10 Nc
Trademark
STARRY
Origin
Yangzhou
HS Code
82074000
Production Capacity
5000000 Per Mouth

Product Description

Product Description

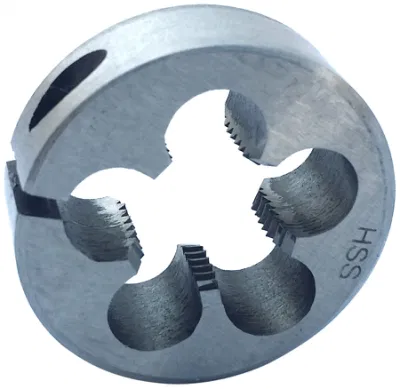

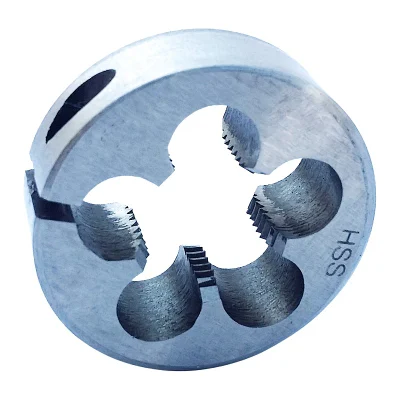

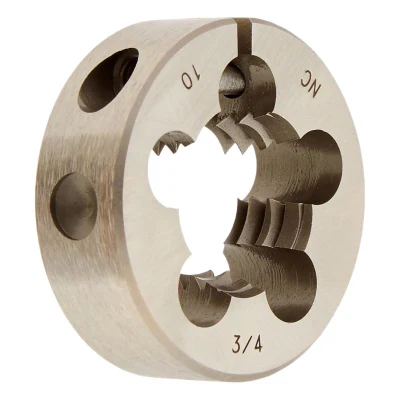

  • Adjust Round Die: Thread size: 3/4-10; outside diameter (OD): 2" ;  accuracy class: 6g. Made of high speed steel, hardness, high torque, good toughness and wear-resistance.
  • Applications: Can process, correct or clean the external threads. Suitable for general purpose threading in stainless steel, aluminum alloy, cast iron, copper, iron, aluminum, plastic, etc.. Great for maintenance and repair work on pipes, boards and machinery.

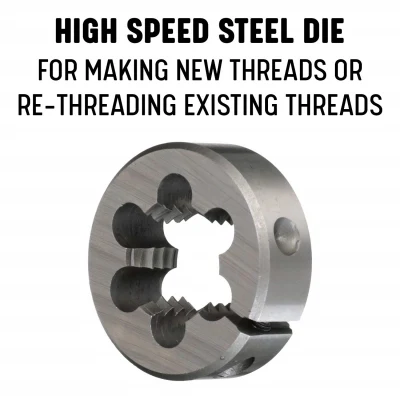

  • Features: Conical locking hole, strong locking and not loose. Perfect for re-threading existing threads in hard materials like metal and making new threads in soft material such as plastic. The surface is lubricated with grease to prevent rust, the thread is clear and easy to repair.
  • Easy to Use: The positioning groove of the die should be aligned with the fastening screw in the middle of the die wrench, and the screw should be inserted into the slot of the die and tightened. The end of the bar should be chamfered 1*45 degree, and the chamfer is too large to cut in.
  • Tips: It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the chip hole. Suitable lubricating oil should be added to the cutting edge of the die when tapping the thread. The bar diameter should be smaller ( about 0.05mm-0.15mm) than the nominal diameter of the required thread. Excessive diameter can easily cause difficult cutting and lead to damage to the die teeth.
  • Product Name Adjust Round Die
    Model 3/4-10
    Brand OEM
    Material 9SiCr Alloy Steel/HSS-M2,4341,4241
    Standard DIN223
    Shape Round
    Surface Finish Bright,TiN,Oxide Steam
    Marking Laser Marking, Engrave
    Application External thread processing and return teeth
    Thread Coarse thread,fine thread
    Suitable material copper plate, aluminum alloy, medium/bottom carbon steel, cast iron, 304 stainless steel
High Speed Steel Round Adjustable Pipe Threading Die
High Speed Steel Round Adjustable Pipe Threading Die

SIZE
Size Limit Outside Thinkness
M4x0.5 6g 20 5
M4x0.7 6g 20 5
M4.5x0.35 6g 20 5
M4.5x0.5 6g 20 5
M4.5x0.75 6g 20 7
M5x0.35 6g 20 5
M5x0.5 6g 20 5
M5x0.75 6g 20 7
M5x0.8 6g 20 7
M5.5x0.35 6g 20 5
M5.5x0.5 6g 20 5
M5.5x0.75 6g 20 7
M6x0.35 6g 20 5
M6x0.5 6g 20 5
M6x0.75 6g 20 7
M6x1 6g 20 7
M7x0.5 6g 25 9
M7x0.75 6g 25 9
M7x1 6g 25 9
M8x0.5 6g 25 9
M8x0.75 6g 25 9
M8x1 6g 25 9
M8x1.25 6g 25 9
M9x0.5 6g 25 9
M9x0.75 6g 25 9
M9x1 6g 25 9
M9x1.25 6g 25 9
M10x0.5 6g 30 11
M10x0.75 6g 30 11
M10x1 6g 30 11
M10x1.25 6g 30 11
M10x1.5 6g 30 11
M11x0.5 6g 30 11
M11x0.75 6g 30 11
M11x1 6g 30 11
M11x1.5 6g 30 11
M12x0.5 6g 38 10
M12x0.75 6g 38 10
M12x1 6g 38 10
M12x1.25 6g 38 10
M12x1.5 6g 38 10
M12x1.75 6g 38 14
M13x0.5 6g 38 10
M13x0.75 6g 38 10
M13x1 6g 38 10
M13x1.5 6g 38 10
M14x0.5 6g 38 10
M14x0.75 6g 38 10
M14x1 6g 38 10
M14x1.25 6g 38 10
M14x1.5 6g 38 10
M14x2 6g 38 14
M15x0.5 6g 38 14
M15x0.75 6g 38 14
M15x1 6g 38 14
M15x1.5 6g 38 14
M16x0.5 6g 45 14
M16x0.75 6g 45 14
M16x1 6g 45 14
M16x1.25 6g 45 14
M16x1.5 6g 45 14
M16x2 6g 45 18
M17x0.5 6g 45 14
M17x0.75 6g 45 14
M17x1 6g 45 14
M17x1.5 6g 45 14
M18x0.5 6g 45 14
M18x0.75 6g 45 14
M18x1 6g 45 14
M18x1.25 6g 45 14
M18x1.5 6g 45 14
M18x2 6g 45 14
M18x2.5 6g 45 18
M19x0.5 6g 45 14
M19x0.75 6g 45 14
M19x1 6g 45 14
M19x1.5 6g 45 14
M19x2 6g 45 14
M20x0.5 6g 45 14
M20x0.75 6g 45 14
M20x1 6g 45 14
M20x1.25 6g 45 14
M20x1.5 6g 45 14
M20x2 6g 45 14
M20x2.5 6g 45 18
M21x0.5 6g 45 14
M21x0.75 6g 45 14
M21x1 6g 45 14
M21x1.5 6g 45 14
M21x2 6g 45 14
M22x0.5 6g 55 16
M22x0.75 6g 55 16
M22x1 6g 55 16
M22x1.5 6g 55 16
M22x2 6g 55 16
M22x2.5 6g 55 22
M23x0.5 6g 55 16
M23x0.75 6g 55 16
M23x1 6g 55 16
M23x1.5 6g 55 16
M23x2 6g 55 16
M24x0.5 6g 55 16
M24x0.75 6g 55 16
M24x1 6g 55 16
M24x1.5 6g 55 16
M24x2 6g 55 16
M24x3 6g 55 22
M25x0.5 6g 55 16
M25x0.75 6g 55 16
M25x1 6g 55 16
M25x1.5 6g 55 16
M25x2 6g 55 16
M26x0.5 6g 55 16
M26x0.75 6g 55 16
M26x1 6g 55 16
M26x1.5 6g 55 16
M26x2 6g 55 16
M27x0.5 6g 65 18
M27x0.75 6g 65 18
M27x1 6g 65 18
M27x1.5 6g 65 18
M27x2 6g 65 18
M27x3 6g 65 25
M28x0.5 6g 65 18
M28x0.75 6g 65 18
M28x1 6g 65 18
M28x1.5 6g 65 18
M28x2 6g 65 18
M30x0.5 6g 65 18
M30x0.75 6g 65 18
M30x1 6g 65 18
M30x1.5 6g 65 18
M30x2 6g 65 18
M30x3 6g 65 25
M30x3.5 6g 65 25



Application
  1. Dies for processing external threads consist of a cutting part, a positioning part and a chip hole.
  2. Dies can be divided into round dies, square dies, hex dies according to the shape. They are also called as ordinary thread dies, pipe thread dies and tapered pipe thread dies according to the purpose.
  3. Use chip fluid (oil) to obtain quality threads, and it is also suitable for thread maintenance. Suitable lubricating oil is conducive to cutting or cooling, making cutting more brisk, improving smoothness and dimensional accuracy.
