High Quality Solid PCD Drawing Die Deep Drawing Mould/Die/Tooling Polycrystalline Drawing Dies

Looking for high quality solid PCD drawing dies? Our factory offers deep drawing mould/die/tooling polycrystalline drawing dies for precision and durability. Order now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Packaging & Shipping
  • Company Profile
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
PCD230204
Surface Treatment
Polish
Application
Hardware, Commodity, Electronic, Car
Certification
ISO
Warranty
1 Year
Customized
Customized
Delivery Time
5-7 Days
Color
Silver Grey
Transport Package
Standard Export Packing
Specification
1kg
Trademark
Red star
Origin
Anhui, China
HS Code
82072090
Production Capacity
1000000 Pieces/Year

Product Description

Product Description
PCD dies can be used in all wet and dry drawing processes and are ideal for long cycle production and drawing of abrasive wire as they outlast TC, SSCD and ND dies. Whilst natural diamond and tungsten carbide can be useful in some applications, PCD is an engineered material that helps to diversify products and reduce total tooling costs.
There are three main types of polycrystalline diamond blanks: non-reinforced ring, reinforced ring and thermally stabilised.

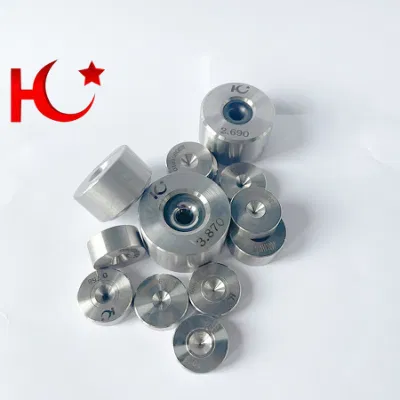

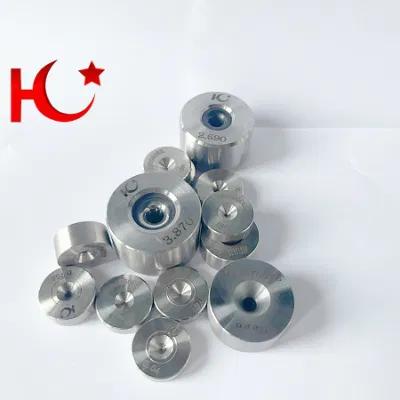

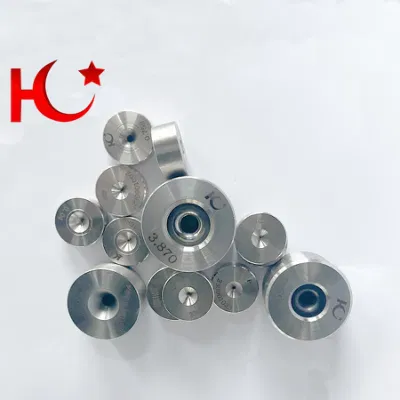

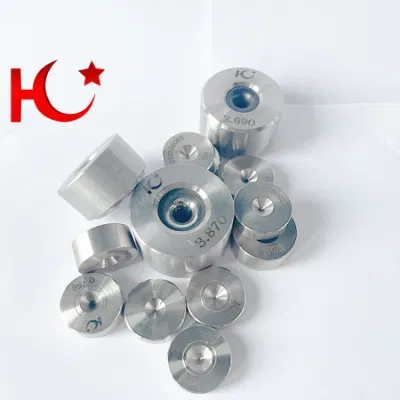

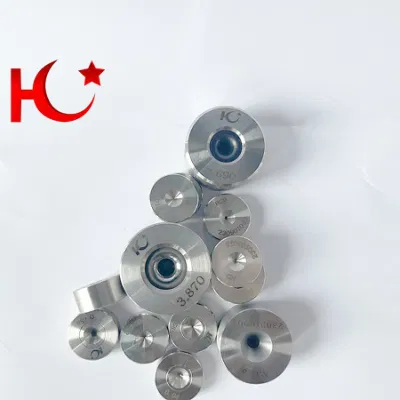

Detailed Photos

High Quality Solid PCD Drawing Die Deep Drawing Mould/Die/Tooling Polycrystalline Drawing DiesHigh Quality Solid PCD Drawing Die Deep Drawing Mould/Die/Tooling Polycrystalline Drawing DiesHigh Quality Solid PCD Drawing Die Deep Drawing Mould/Die/Tooling Polycrystalline Drawing DiesHigh Quality Solid PCD Drawing Die Deep Drawing Mould/Die/Tooling Polycrystalline Drawing Dies

Product Parameters

High Quality Solid PCD Drawing Die Deep Drawing Mould/Die/Tooling Polycrystalline Drawing Dies

Application scenario and standard control
For diamond wire  busbar,steel cord,rubber tube wire,etc
Project Standard
D<0.1mm D+0.3um
0.1mm≤D<0.2mm D±0.5um
Reduction Angle 8°±1°
Bearing Length 20%-40%D
Ovality ≤0.2um
Entrance /exit angle 60°±10°
Back relief 10°±2°
Concentricity ≤15um
Remark:
It is recommended to use imported polycrystalline drawing die,Sumitomo 805f blanks.
The above criteria are for reference



Application scenario and standard control
For stainless steel wire,spring wire,welding wire,etc.
Project Standard
Entrance angle 30°±5°
Reduction Angle 14°±2°
Bearing Length 40%-80%D
Ovality ≤lum
Exit angle 50°±20°
Back relief 15°±5°
Remark
It is recommended to use CD die and import PCD die.
The above criteria are for reference





Application scenario and standard control
For enameled wire,copper wire,aluminum wire,copper clad aluminum wire,gold wire,silver wire and other non-ferrous metal wire
Project Standard
Entrance angle 30°±5°
Reduction Angle 16°±2°
Bearing Length 20%-50%D
Ovality ≤lum
Exit angle 50°±20°
Back relief 15°±5°
Remark:
It is recommended to use ND die,imported PCD die and CD drawing die.It is suitable for multi head wire drawing machine
The above cnteria are for reference





STANDARD SPECIFICATIONS
Reduction angle and Bearing length Soft wire products...
copper wire,aluminum wire,
  brass wire,gold wire,etc



 Hard wire products...
     Stainless steel wire,
   copper lated steel wire,
    galvanizde steel wire.
   brass plated steel wire
     tungsten wire,etc
Reduction angle
and Bearing length
Soft wire
products
Hard   wire
products
5%-8% 12°±2° 8°±1°
8%-12% 14±2° 10°±1°
12%-16% 16°±2° 14°±1°
16%-25% 20°±2° 15°±1°
25%-35% 23°±1° 17°±1°
Bearings length 0.2-0.5d 0.3-0.8d
Standard configurations for other wire types also available.
Packaging & Shipping

High Quality Solid PCD Drawing Die Deep Drawing Mould/Die/Tooling Polycrystalline Drawing Dies



Company Profile

High Quality Solid PCD Drawing Die Deep Drawing Mould/Die/Tooling Polycrystalline Drawing DiesHigh Quality Solid PCD Drawing Die Deep Drawing Mould/Die/Tooling Polycrystalline Drawing Dies



Our Advantages
  1. Suitable for all applications from large drawing to ultramicrodrawing.
  2. The size of the embryo is guaranteed, and the maximum reaming size can be expected.
  3. Decobalt polycrystalline material can be widely used in high temperature hard wire drawing.
  4. The longest life material on the market today provides the highest productivity and reduces downtime.
  5. The unique physical characteristics of artificial polycrystalline enable the wire to ensure better roundness even in the case of mold wear.
FAQ

In order to send you accurate product quotations and help you save order communication
time, please provide the following products related information when sending inquiries:
1. Type; ( PCD, TC, ND, SSCD, CVD)
2. Shape; (Round, or shaped)
3. Size; ( Hole size, case size)
4. Usage; ( Copper wire, steel wire, aluminum wire, etc;)
5. Tolerance;
6. Quantity; (Sample order and normal order)
