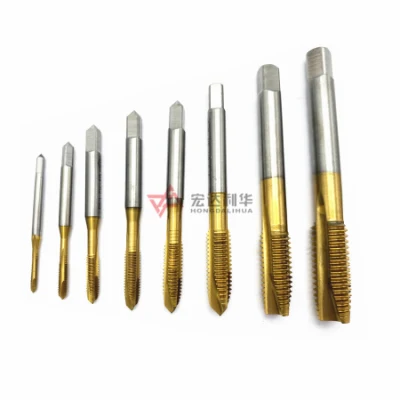

High Quality Hot Sale HSS Taps Machine Tap Tin Coated Spiral Point Taps

Get high-quality hot sale HSS taps from our factory. Our tin-coated spiral point taps are perfect for precision machining. Buy now and save!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Numerical Control
CNC/MNC
Processing Precision
+-0.02mm
Performance Classification
High-End CNC Machine Tools
Certification
ISO 9001
Condition
New
Name
Carbide End Mill
Machine Type
Milling Maching
Performance
Excellent Wear Resistance
Usage
General High Speed Cutting
Business Type
Manufacturer
Advantage
Over 20 Years Experience in This Line
Transport Package
Standard or Customized
Specification
ISO9001 SGS
Trademark
LIHUA
Origin
Zhuzhou, China (Mainland)
Production Capacity
5000kg/Mon

Product Description

31/64" Solid Carbide Drill Bits with 2 Flutes  for USA market

High Quality Hot Sale HSS Taps Machine Tap Tin Coated Spiral Point Taps


Specifications:

1.Hardness:HRC45/50/55/60/65
2.Flutes:2 flutes or 4 flutes
3.Helix Angle: 35 degree
4.Centered Cutting: Yes
5.Type: Square End Mill / Flat end mill / Metal cutting tool
6.Workpiece material: Steel, mould steel, low alloy, hardened  steel, staninless steel, alloy steel
7.Coating:TiAlN
8.Tool body material:Tungsten solid carbide
9.Color: Black, yellow

High Quality Hot Sale HSS Taps Machine Tap Tin Coated Spiral Point Taps

Standard size or make to order for special specifications

High Quality Hot Sale HSS Taps Machine Tap Tin Coated Spiral Point TapsHigh Quality Hot Sale HSS Taps Machine Tap Tin Coated Spiral Point Taps

 HRC Grade 55 High Quality Hot Sale HSS Taps Machine Tap Tin Coated Spiral Point Taps
Sharpe of head Flat
Flutes 4
Over Length 50 mm
 D (Dia. of edge)  8.0 mm
d (dia. of shank)  8.0 mm

Unit:mm

specification cutting shank diamete flute length overall
D2.0*6*D4*75L    2.0 4 6 75
D4.0*11*D4*75L    4.0 4 11 75
D6.0*15*D6*75L    6.0 6 15 75
D8.0*20*D8*75L    8.0 8 20 75
D4.0*8*D6*100L    4.0 6 8 100
D6.0*15*D6*100L   6.0 6 15 100
D8.0*20*D8*100L   8.0 8 20 100
D10.0*25*D10*100L  10.0 10 25 100
D12.0*30*D12*100L  12.0 12 30 100
D16.0*40*D16*100L  16.0 16 40 150


Description of solid carbide end mills ,CNC end mill ,hardness end mill



Flutes No. 2/3/4 Flutes
Material HSS,Carbide etc.
Coating AlTiN,NACO BLUE/NACO BLACK/TiN etc.
Helix Angle 35°,45°
Hardness HRC45/55/58/65
Size Overal Length:50-150mm
Customized Accept
Smooth Finish Highly Polished
Feature Excellent chip evacuation
Measurement Metric



WEIX45HRC Aluminum Square series - 2F/4F
Material:© WC=0.8(UM)Co=10 HRA=92.2 HV=1620 Rupture=4000(kg.N/mm²)
Mode FD
Flute Dia
SD
Shank Dia
FL
Flute Length
TL
Total Length
WEIX601  3 3 8 50L
WEIX602 1 4 3 50L
WEIX603 1.5 4 4 50L
WEIX604 3 4 5 50L
WEIX605 2.5 4 6 50L
WEIX606  3.5 4 10 50L
WEIX607 4 4 11 50L
WEIX608 5 5 13 50L
WEIX609 1 6 3 50L
WEIX610 1.5 6 4 50L
WEIX611 2 6 5 50L
WEIX612 2.5 6 6 50L
WEIX613 3 6 8 50L
WEIX614 3.5 6 10 50L
WEIX615 4 6 11 50L
WEIX616 5 6 13 50L
WEIX617 6 6 15 50L
WEIX618 7 8 17 60L
WEIX619 8 8 20 60L
WEIX620 10 10 25 75L
WEIX621 12 12 30 75L
WEIX622 14 14 35 100L
WEIX623 16 16 40 100L
WEIX624 18 18 40 100L
WEIX625 20 20 40 100L
Lengthening
WEIX626  3 3 15 75L
WEIX627  4 4 20 75L
WEIX628  5 5 25 75L
WEIX629 6 6 25 75L
WEIX630 7 8 25 75L
WEIX631 8 8 30 75L
WEIX632 3 3 15 100L
WEIX633 4 4 25 100L
WEIX634  5 5 30 100L
WEIX635  6 6 30 100L
WEIX636 8 8 35 100L
WEIX637 10 10 40 100L
WEIX638 12 12 45 100L
WEIX639 8 8 40 150L
WEIX640 10 10 50 150L
WEIX641 12 12 50 150L
WEIX642 14 14 70 150L
WEIX643 16 16 70 150L
WEIX644 20 20 80 150L





Super raw material


HRC45 HRC55 HRC60 HRC65
YG10X YG10.2 &WF25(Taiwan) K44 & K40 (German) H10F (Sweden)
Grain Size:0.7um
Co:10 %
Flexural strength:3320N/mm2
Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2
Grain Size:0.5um
Co:12 %
Flexural strength:4300N/mm2
Grain Size:0.5um
Co:10 %
Flexural strength:4300N/mm2




Super coating



Item AlTiN TiAIN TiSiN NACO
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coeffient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue



Company Informations
About Lihua Cemented Carbide
Established in 1990, specialized in production carbide products more than 20 years and located in zhuzhou city  which is the hometown of tungsten carbide in China .
Our products sold well to worldwide, has been build a long term relationship with our customers from Italy, Portugal, German, Turkey, USA, Mexico, India, Australia, South Africa etc .
High Quality Hot Sale HSS Taps Machine Tap Tin Coated Spiral Point Taps



Main Products
Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Cusomized cutter:woodworking tool, V-cutter, textile cutter, shoes cutter ects. Any kinds of customized carbide products .High Quality Hot Sale HSS Taps Machine Tap Tin Coated Spiral Point TapsHigh Quality Hot Sale HSS Taps Machine Tap Tin Coated Spiral Point Taps

Monthly Capacity of 15Ton
We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity up to 15 Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
High Quality Hot Sale HSS Taps Machine Tap Tin Coated Spiral Point Taps
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
