Basic Info.
Model NO.
customized
Warranty
12 Months
Metal Color
Black Metal
Customized
Customized
Condition
New
Steel Material
DC53
Delivery Time
7-15 Days
Transport Package
Carton or Wooden Case
Specification
customized
Trademark
Henghui
Origin
China
HS Code
8207209000
Production Capacity
10000 Sets/Month
Product Description
Information Display:

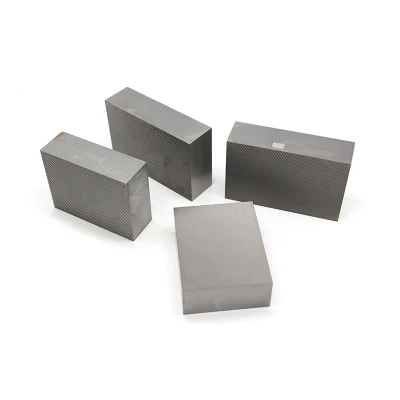

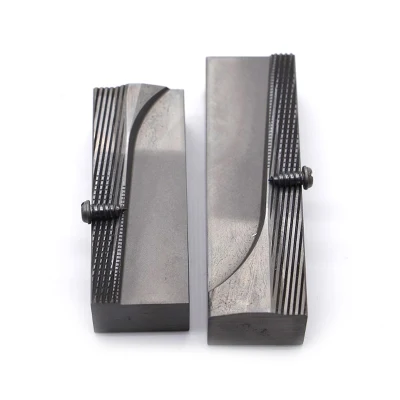

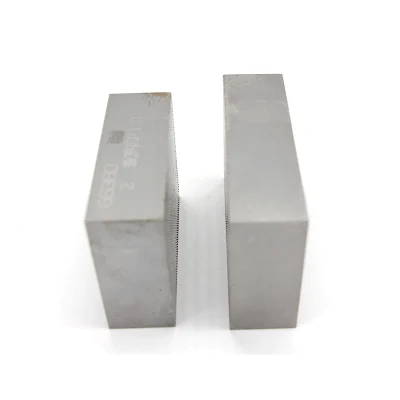

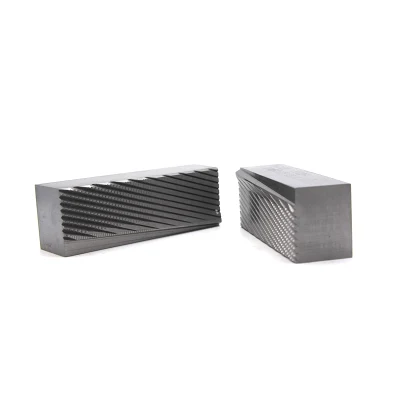

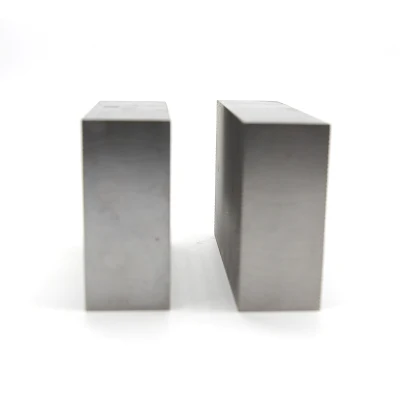

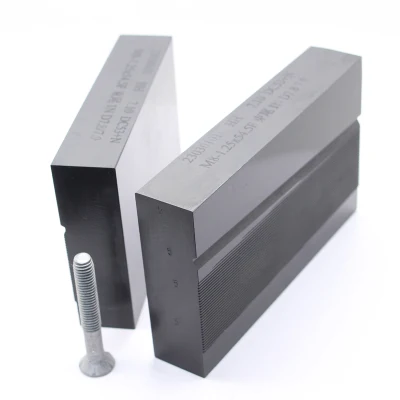

Thread Rolling dies are available for tapping screws,Machine Screws,Wood Screws,Hi-Lo Screws,Concrete Screws,Drywall Screws and many more.For more information,please contanct us directly.
Features:
Thread Rolling dies are available for tapping screws,Machine Screws,Wood Screws,Hi-Lo Screws,Concrete Screws,Drywall Screws and many more.For more information,please contanct us directly.
Size:
Length*Height*thickness(for example, 90/105x25x25mm)
DC53:
| Chemical Composition | C | Si | Mn | P | S | Cr | Mo | V | W |
| Content (%) | 0.95 | 0.89 | 0.3 | 0.018 | 0.006 | 7.7 | 1.92 | 0.75 | 0.91 |
| MACHINE TYPE | s | H | L1(FIXED) | L2(MOVING) |
| 0 | 19 | 25 | 51 | 64 |
| 3/16 | 25 | 25,38, 55 | 75 | 90 |
| 1/4 | 25 | 25,40, 55, 65,80 | 100 | 115 |
| 5/16 | 25 | 25,40, 55, 65,80, 105 | 127 | 140 |
| 3/8 | 25 | 25,40, 55, 65,80, 105 | 150 | 165 |
| 1/2 | 35 | 55, 80, 105, 125,150 | 190 | 215 |
| 3/4 | 38 | 55, 80, 105,125,150 | 230 | 265 |
| 003 | 15 | 20 | 45 | 55 |
| 004 | 20 | 25 | 65 | 80 |
| 4R | 20 | 25 | 60 | 70 |
| 6R | 25 | 25, 30, 40, 55 | 90 | 105 |
| 8R | 25 | 25, 30, 40, 55, 65 | 108 | 127 |
| 250 | 25 | 25, 40, 55 | 110 | 125 |
| DR125 | 20.8 | 25, 40 | 73.3 | 86.2 (5.) |
| DR200 | 20.8 | 25, 40, 53 | 92.3 | 105.2 (53) |
| DR250 | 23.8 | 25, 40, 54 | 112 | 131.2 (Í) |
Features:
Please specify the details of thread rolling dies as follows when you inquire or order;
(1) the material of thread rolling die you need;
(2) the type of thread rolling die; machine screw, self tapping screw, wood screw, drywall screw, chipboard screw , duck screw and so on;
(3) the fact thread length of screw that you use our thread rolling die to produce;
(4) the blank diameter;
(5) the section size or plates size: Length*Height*thickness(for example, 90/105x25x25mm;
(6) the special specification out of standard is also available, but necessarily with a drawing for reference.
