Basic Info.
Model NO.
metric
Size
up to 1-1/2
Transport Package
Plastic Box
Specification
up to 1-1/2 inch
Trademark
stc
Origin
Jiangsu
HS Code
8207400000
Production Capacity
10000PCS Per Month

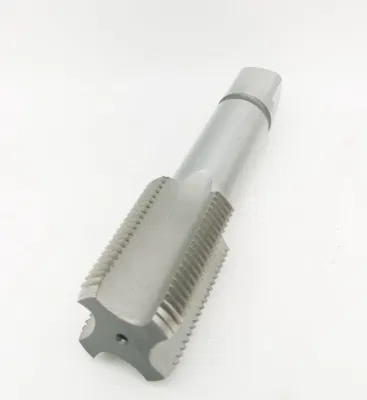

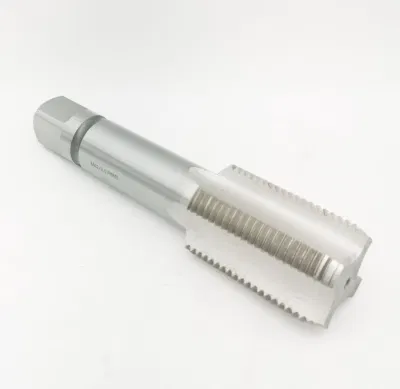

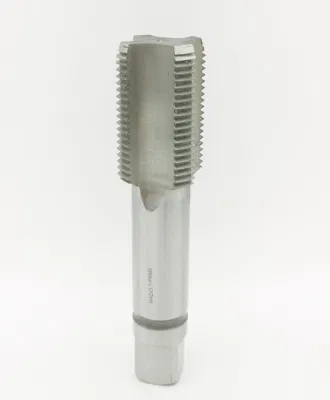

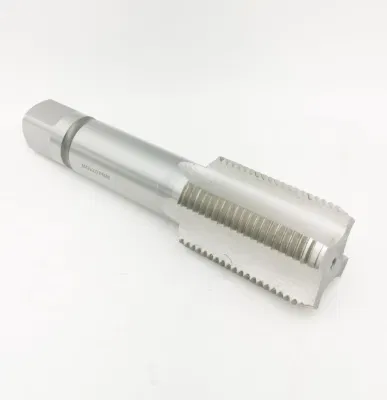

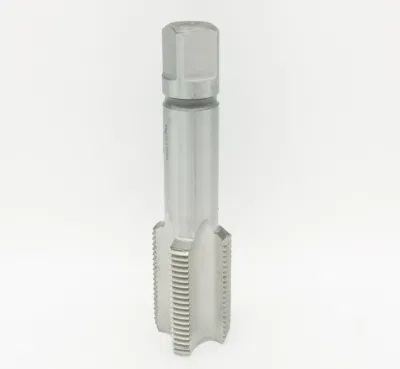

Product Description
made from high speed steel M2.
black/oxide finish, white bright finish available.
basiclly design for tapping through holes.
mfg. to standard iso529
![Hand and Machine Taps](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00PIlWNLoKbUqz/Hand-and-Machine-Taps.webp)
![Hand and Machine Taps](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00LPiVNkcJARor/Hand-and-Machine-Taps.webp)
![Hand and Machine Taps](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00DPWVOsqBnYbp/Hand-and-Machine-Taps.webp)
![Hand and Machine Taps](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00DLlVFdbPZRcr/Hand-and-Machine-Taps.webp)
![Hand and Machine Taps](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00iLhVNGqACfcz/Hand-and-Machine-Taps.webp)
![Hand and Machine Taps](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00lLiVyPkRafqz/Hand-and-Machine-Taps.webp)
STC190, HAND & MACHINE TAPS, ISO529 | |||||||||||||
Size | Overall Length | Flute length | Shank Diameter | Size | Overall Length | Flute length | Shank Diameter | Size | Overall Length | Flute length | Shank Diameter | ||
M1X0.2 | 38.5 | 5.5 | 2.5 | M10X1.5 | 80 | 24 | 8 | M33X1.5 | 137 | 37 | 22.4 | ||
M1X0.25 | 38.5 | 5.5 | 2.5 | M11X1.5 | 85 | 25 | 8 | M33X2 | 137 | 37 | 22.4 | ||
M1.1X0.2 | 38.5 | 5.5 | 2.5 | M12X1.25 | 84 | 24 | 9 | M33X3 | 151 | 51 | 22.4 | ||
1.1X0.25 | 38.5 | 5.5 | 2.5 | M12X1.5 | 89 | 29 | 9 | M33X3.5 | 151 | 51 | 22.4 | ||
M1.2X0.2 | 38.5 | 5.5 | 2.5 | M12X1.75 | 89 | 29 | 9 | M35X1.5 | 144 | 39 | 25 | ||
M1.2X0.25 | 38.5 | 5.5 | 2.5 | M14X1.25 | 90 | 25 | 11.2 | M36X1.5 | 144 | 39 | 25 | ||
M1.4X0.2 | 40 | 7 | 2.5 | M14X1.5 | 95 | 30 | 11.2 | M36X2 | 144 | 39 | 25 | ||
M1.4X0.3 | 40 | 7 | 2.5 | M14X2 | 95 | 30 | 11.2 | M36X3 | 162 | 57 | 25 | ||
M1.6X0.2 | 41 | 8 | 2.5 | M15X1.5 | 95 | 30 | 11.2 | M36X4 | 162 | 57 | 25 | ||
M1.6X0.35 | 41 | 8 | 2.5 | M16X1.5 | 102 | 32 | 12.5 | M39X0.5 | 149 | 39 | 28 | ||
M1.8X0.2 | 41 | 8 | 2.5 | M16X2 | 102 | 32 | 12.5 | M39X2 | 149 | 39 | 28 | ||
M1.8X0.35 | 41 | 8 | 2.5 | M17X1.5 | 102 | 32 | 12.5 | M39X3 | 170 | 60 | 28 | ||
M2X0.25 | 41 | 8 | 2.5 | M18X1.5 | 108 | 33 | 14 | M39X4 | 170 | 60 | 28 | ||
M2X0.4 | 41 | 8 | 2.5 | M18X2 | 108 | 33 | 14 | M40X1.5 | 149 | 39 | 28 | ||
M2.2X0.25 | 44.5 | 9.5 | 2.8 | M18X2.5 | 112 | 37 | 14 | M40X2 | 149 | 39 | 28 | ||
M2.2X0.45 | 44.5 | 9.5 | 2.8 | M20X1.5 | 108 | 33 | 14 | M40X3 | 170 | 60 | 28 | ||
M2.5X0.35 | 44.5 | 9.5 | 2.8 | M20X2 | 108 | 33 | 14 | M42X1.5 | 149 | 39 | 28 | ||
M2.5X0.45 | 44.5 | 9.5 | 2.8 | M20X2.5 | 112 | 37 | 14 | M42X2 | 149 | 39 | 28 | ||
M3X0.35 | 48 | 11 | 3.15 | M22X1.5 | 115 | 35 | 16 | M42X3 | 170 | 60 | 28 | ||
M3X0.5 | 48 | 11 | 3.15 | M22X2 | 115 | 35 | 16 | M42X4 | 170 | 60 | 28 | ||
M3.5X0.35 | 50 | 13 | 3.55 | M22X2.5 | 118 | 38 | 16 | M42X4.5 | 170 | 60 | 28 | ||
M3.5X0.6 | 50 | 13 | 3.55 | M24X1.5 | 120 | 35 | 18 | M45X1.5 | 165 | 45 | 31.5 | ||
M4X0.5 | 53 | 13 | 4 | M24X2 | 120 | 35 | 18 | M45X2 | 165 | 45 | 31.5 | ||
M4X0.7 | 53 | 13 | 4 | M24X3 | 130 | 45 | 18 | M45X3 | 187 | 67 | 31.5 | ||
M4.5X0.5 | 53 | 13 | 4.5 | M25X1.5 | 120 | 35 | 18 | M45X4 | 187 | 67 | 31.5 | ||
M4.5X0.75 | 53 | 13 | 4.5 | M25X2.0 | 120 | 35 | 18 | M45X4.5 | 187 | 67 | 31.5 | ||
M5X0.5 | 58 | 16 | 5 | M27X1.5 | 127 | 37 | 20 | M48X1.5 | 165 | 45 | 31.5 | ||
M5X0.8 | 58 | 16 | 5 | M27X2 | 127 | 37 | 20 | M48X2 | 165 | 45 | 31.5 | ||
M5.5X0.5 | 62 | 17 | 5.6 | M27X3 | 135 | 45 | 20 | M48X3 | 187 | 67 | 31.5 | ||
M6X0.75 | 66 | 19 | 6.3 | M28X1.5 | 127 | 37 | 20 | M48X4 | 187 | 67 | 31.5 | ||
M6X1 | 66 | 19 | 6.3 | M28X2 | 127 | 37 | 20 | M48X5 | 187 | 67 | 31.5 | ||
M7X0.75 | 66 | 19 | 7.1 | M27X3 | 135 | 45 | 20 | M50X1.5 | 165 | 45 | 31.5 | ||
M7X1 | 66 | 19 | 7.1 | M28X1.5 | 127 | 37 | 20 | M50X2 | 165 | 45 | 31.5 | ||
M8x0.75 | 66 | 19 | 7.1 | M28X2 | 127 | 37 | 20 | M50X3 | 187 | 67 | 31.5 | ||
M8X1 | 69 | 19 | 6.3 | M30X1.5 | 127 | 37 | 20 | M52X1.5 | 175 | 45 | 35.5 | ||
M8X1.25 | 72 | 22 | 6.3 | M30X2 | 127 | 37 | 20 | M52X2 | 175 | 45 | 35.5 | ||
M9X1 | 69 | 19 | 7.1 | M30X3 | 138 | 48 | 20 | M52X3 | 200 | 70 | 35.5 | ||
M9X1.25 | 72 | 22 | 7.1 | M30X3.5 | 138 | 48 | 20 | M52X4 | 200 | 70 | 35.5 | ||
M10X1 | 76 | 20 | 8 | M32X1.5 | 137 | 37 | 22.4 | M52X5 | 200 | 70 | 35.5 | ||
M10X1.25 | 76 | 20 | 8 | M32X2 | 137 | 37 | 22.4 |
