Product Description
Hand taps with Thread M and MF, BSW and BSF, G, UNC and UNF, UN, Rc, UNEF, PG, NPT
6H, 6HX and 2B tolerances
For blind and through holes
Suitable for these materials: soft magnetic steels, construction and cement steels, and non-alloy and alloy carbon steels up to a resistance of 1,400N / mm2, stainless steels, copper and brass

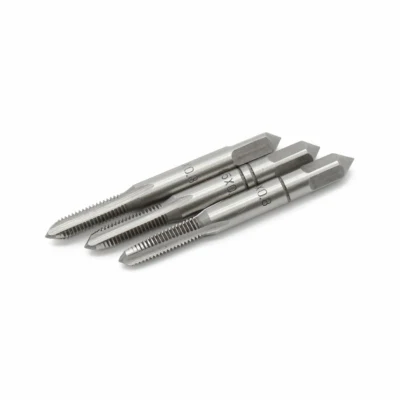

Product: | DIN352 ALLOY STELL HAND TAPS SETS |
Brand: | OEM/ODM |
Standard: | DIN 352 |
Shank Type: | Parallel shank/Straight shank |
Size: | M3-M30 |
Material: | GCR15/9SICR |
Direction: | Left/Right |
Color: | BRIGHT |
Process: | Rolled |
Hardness: | 60-62HRC |
Application: | For Stainless steel, high temperature alloy, titanium alloy, high strength steel and carbon fiber composite materials, etc. |
Package: | 3pcs /plastic box |
Delivery Time: | withing 3-30days according to your order quantity |
![DIN352 Standard Alloy Steel Rolled Screw Thread Taps Set](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00uMliVjaRVTzW/DIN352-Standard-Alloy-Steel-Rolled-Screw-Thread-Taps-Set.webp)
![DIN352 Standard Alloy Steel Rolled Screw Thread Taps Set](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00uBlhVJEPOtpi/DIN352-Standard-Alloy-Steel-Rolled-Screw-Thread-Taps-Set.webp)
Size | Limit | Overall Len | Thread Len | ||
M1x0.25 | 6H | 32 | 5.5 | ||
M1.1x0.25 | 6H | 32 | 5.5 | ||
M1.2x0.25 | 6H | 32 | 5.5 | ||
M1.4x0.3 | 6H | 32 | 7 | ||
M1.6x0.35 | 6H | 32 | 8 | ||
M1.7x0.35 | 6H | 32 | 8 | ||
M1.8x0.35 | 6H | 32 | 8 | ||
M2x0.4 | 6H | 36 | 8 | ||
M2.2x0.45 | 6H | 36 | 9 | ||
M2.3x0.4 | 6H | 36 | 9 | ||
M2.5x0.45 | 6H | 40 | 9 | ||
M2.6x0.45 | 6H | 40 | 9 | ||
M3x0.5 | 6H | 40 | 11 | ||
M3.5x0.6 | 6H | 45 | 13 | ||
M4x0.7 | 6H | 45 | 13 | ||
M4.5x0.75 | 6H | 50 | 16 | ||
M5x0.8 | 6H | 50 | 16 | ||
M6x1 | 6H | 50 | 19 | ||
M7x1 | 6H | 50 | 19 | ||
M8x1.25 | 6H | 56 | 22 | ||
M9x1.25 | 6H | 63 | 22 | ||
M10x1.5 | 6H | 70 | 24 | ||
M11x1.5 | 6H | 70 | 24 | ||
M12x1.75 | 6H | 75 | 29 | ||
M14x2 | 6H | 80 | 30 | ||
M16x2 | 6H | 80 | 32 | ||
M18x2.5 | 6H | 95 | 40 | ||
M20x2.5 | 6H | 95 | 40 | ||
M22x2.5 | 6H | 100 | 40 | ||
M24x3 | 6H | 110 | 50 | ||
M27x3 | 6H | 110 | 50 | ||
M30x3.5 | 6H | 125 | 56 | ||
M33x3.5 | 6H | 125 | 56 | ||
M36x4 | 6H | 150 | 63 | ||
M39x4 | 6H | 150 | 63 | ||
M42x4.5 | 6H | 150 | 63 | ||
M45x4.5 | 6H | 160 | 70 | ||
M48x5 | 6H | 180 | 75 | ||
M52x5 | 6H | 180 | 75 | ||
M56x5.5 | 6H | 200 | 85 | ||
M60x5.5 | 6H | 200 | 85 | ||
M64x6 | 6H | 220 | 90 |
1. Package:Plastic box,
2. Delivery:35 Days after your deposite
3. Shipping:By sea,By air,if small order,we can provide the Express.
![DIN352 Standard Alloy Steel Rolled Screw Thread Taps Set](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00DeWihmEPJTgl/DIN352-Standard-Alloy-Steel-Rolled-Screw-Thread-Taps-Set.webp)
![DIN352 Standard Alloy Steel Rolled Screw Thread Taps Set](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00WvlhiRTmOtpV/DIN352-Standard-Alloy-Steel-Rolled-Screw-Thread-Taps-Set.webp)
![DIN352 Standard Alloy Steel Rolled Screw Thread Taps Set](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00ieWVhDtaRTzl/DIN352-Standard-Alloy-Steel-Rolled-Screw-Thread-Taps-Set.webp)
![DIN352 Standard Alloy Steel Rolled Screw Thread Taps Set](http://img6.grofrom.com/www.yuxitoolsupply.com/226f3j00WvlVhcTKaEri/DIN352-Standard-Alloy-Steel-Rolled-Screw-Thread-Taps-Set.webp)
Q:What is your MOQ?
A:It depends on specific products.please contact us for more information
Q:What if the products arrived damaged?
A:Send us the photo of damaged products to confirm,we will replace them in your next order
Q:What is your delivery terms?
A:We accept EXW,FOB,etc. We will choose the most convenient one foe you with less cost
Q:How many markets do you have?
A:Germany Dubai Russia etc
A:You can send us inquiry directly through alibaba.or you can contact through any method listed below
