Product Description

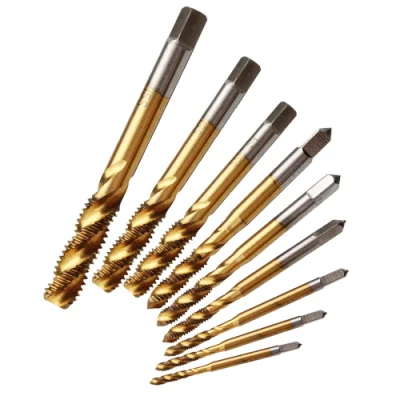

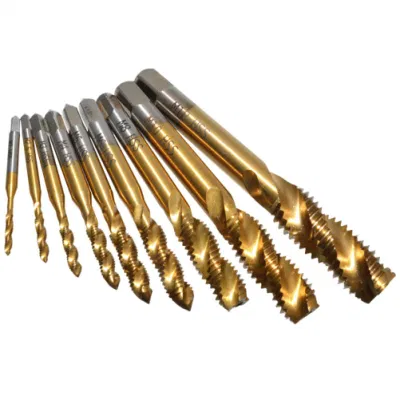

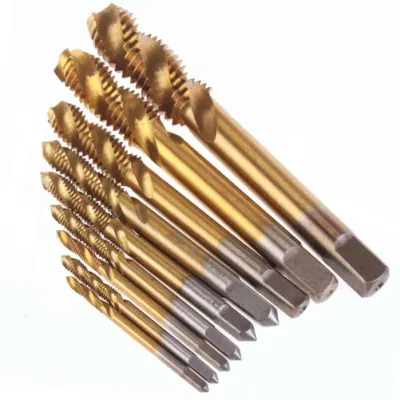

DIN371/376 Machine Screw Tap Set Titanium Spiral Flute Drill Taps Thread Tapping Tool HSS Machine Taps Hand Taps Metric Size
Details of HSS Machine Taps

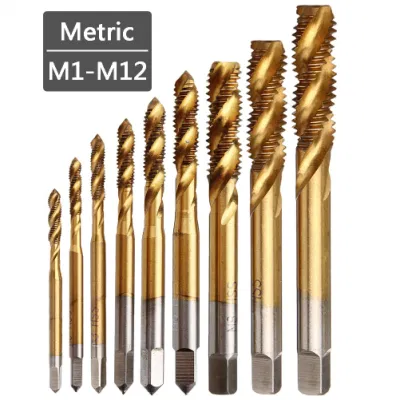

- Perfect for cutting and renewing external and internal threads to exact standards. 9 Different Sizes: M2 M2.5 M3 M4 M5 M6 M8 M10 M12
- Designed to cut threads for standard-sized screws, clear and tidy, no burr, provide rapid chip removal for efficient threading.

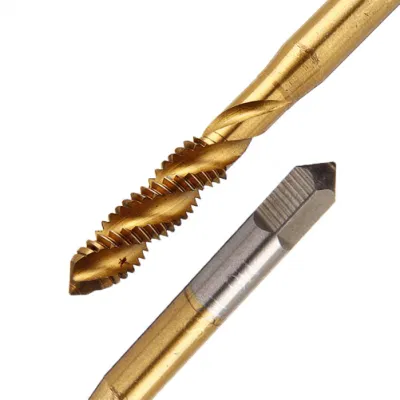

- Spiral Tap the crumbs into a spiral up chip evacuation, it is more suitable for the processing of blind holes and not easily broken tap.
- Made from high speed steel 6542 with titanium coating for high wear and heat resistant, durable and has long service life.
- High speed steel 6542 material suitable for drilling tapping cutting on light metal aluminum board, iron plate, ordinary stainless steel and other hard materials.
Features of HSS Machine Taps:
- These taps are made from high speed steel 6542 and surface is coated with titanium for high hardness and rust resistance.
- There are total 9 pieces of taps in different sizes from M2 to M12 that you can use for tapping various threads.
- Taps are designed with spiral flutes is conducive to remove crumbs, not easily broken tap.
- They are used to cut new threads or repair damaged threads, you will have a smooth tapping experience with them.
- These HSS taps are great tools used to create screw threads, to cut or form the female portion of the mating pair.
Applicable Workpiece:
Size:
SIZE | OVERALL LENGTH | THREAD LENGTH |
M2*0.4 | 41 | 8.0 |
M2.2*0.45 | 44.5 | 9.5 |
M2.5*0.45 | 44.5 | 9.5 |
M3*0.5 | 48 | 11.0 |
M3.5*0.6 | 50 | 13.0 |
M4*0.7 | 53 | 13.0 |
M5*0.8 | 58 | 16.0 |
M5.5*0.9 | 62 | 17.0 |
M6*1 | 66 | 19.0 |
M7*1 | 66 | 19.0 |
M8*1.25 | 72 | 22.0 |
M9*1.25 | 72 | 22.0 |
M10*1.5 | 80 | 24.0 |
M11*1.5 | 85 | 25.0 |
M12*1.75 | 89 | 29.0 |
M14*2 | 95 | 30.0 |
M16*2 | 102 | 32.0 |
M18*2.5 | 112 | 37.0 |
M20*2.5 | 112 | 37.0 |
M22*2.5 | 118 | 38.0 |
M24*3 | 130 | 45.0 |
M27*3 | 135 | 45.0 |
M30*3.5 | 138 | 45.0 |
M33*3.5 | 151 | 51.0 |
M36*4 | 162 | 57.0 |
M39*4 | 170 | 60.0 |
M42*4.5 | 187 | 67.0 |
M45*4.5 | 187 | 67.0 |
M48*4 | 187 | 67.0 |
M52*5 | 200 | 70.0 |
M56*5.5 | 200 | 70.0 |
M60*5.5 | 221 | 76.0 |
M64*6 | 224 | 79.0 |
M68*6 | 234 | 79.0 |
How to Choose a HSS Machine Taps:
How to Use HSS Machine Taps:
Package and Delivery:
1. Package:Plastic box
2. Delivery:35 Days after your deposite
3. Shipping:By sea,By air,if small order,we can provide the Express.
