CE Certificate M8 M9 M10 M12 DIN 981 Nut 12 Point Metric Hex Nut 17b 6s Nut Former

Shop for quality CE Certificate M8 M9 M10 M12 DIN 981 Nut 12 Point Metric Hex Nut 17b 6s Nut Former at our factory. Get reliable products at competitive prices.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Factory Introduction
  • Product Introduction
  • Related products
  • Packaging
  • Certificate
  • FAQ
Overview

Basic Info.

Model NO.
8B 11B 14B 17B 19B 24B 27B 33B 41B
Surface Treatment
Polishing
Forging Tolerance
+/-0.1mm
Standard
DIN
Certification
CE, ISO 9001:2008
Machine Name
Nut Bolt Manufacturing Machine
Delivery Time
in Stock, or 30~50 Business Days, Without Delay
Price
Factory Direct Supply Price
After Sales
Provide Solutions Within 24 Hours
Operation Training
Both at Seller and Buyer Work Site, Not Less Than
Brand
Ronen Wuhe
Advantage
Run Steadily
Power Souce
380V-440V±10% 50-60Hz 3phase
Technical Merit
Taiwan Technology
Parts Can Do 1
Hexgaon Nut
Parts Can Do 2
Flange Nut
Parts Can Do 3
Square Nut
Parts Can Do 4
Welding Nut
Parts Can Do 5
Rivet Nut
Speed
190-200PCS/Min
Transport Package
Film Packaging
Specification
M3-M27
Trademark
Ronen Wuhe
Origin
China
HS Code
8462109000
Production Capacity
30set/Month

Product Description

CE Certificate M8 M9 M10 M12 DIN 981 Nut 12 Point Metric Hex Nut 17b 6s Nut Former

Technical specification
Model
Unit
WH-NF
11B-6S
WH-NF
14B-6S
WH-NF
19B-6S
WH-NF
24B-6S
WH-NF
33B-6S
WH-NF
41B-6S
Forging Station
NO
6
6
6
6
6
6
Across Flats of Nut
mm
5.5-12.7
10-17
14-22
17-26
24-33
30-41
Suitable Hex Nut
DIN
M3-M6
M6-M10
M8-M14
M10-M18
M16-M22
M20-M27
Cut-Off Dia
mm
11
16
19
24
31
40
Dies Pitch
mm
50
60
80
100
140
165
Forging Power
Ton
60
90
135
230
360
450
Main Motor
HP
15
20
50
75
150
200
Lubrication Motor
HP
1.5
1.5
1.5 3
1.5 3
3
3
Installed Quantity
SET
1
2
1 1
1 1
2
2
Lubricant
L
700
1000
1200
1700
1900
2200
Approx Weight
Ton
4.5
8
14
25
45
72

Factory Introduction

Ronen Wuhe is one special manufacture for producing Cold Forging Machines (Fastener Nut) in China. Have Taiwan Technology level engineers team, and with strict technical monitoring and production process, the plant area is 15000 square meter

Cold Forging Machines / Nut Former produced by Ronen Wuhe is suitable for auto parts, construction hardware, construction fasteners, bearing producing, machinery, electronics, etc. industrial fields . We have big share in domestic market, and In recent years.We have exported to Europe, USA, Korea, Russia, India, Indonesia, Vietnam etc. counties. At present, the largest model can reach WH-41B6S, sizes from M3~M27, model from 11B~41B, 6 stations to 9 stations. PKO type and standard type.
In addition, in the future, Ronen Wuhe also plans to gradually move in the direction of mold design, Tapping Machine design and technical consulting. "Manufacturing is like a service industry. After all, who can provide diversified services will have orders and market leadership.
Product Introduction

CE Certificate M8 M9 M10 M12 DIN 981 Nut 12 Point Metric Hex Nut 17b 6s Nut Former11B-41B 6 station nut making machine can produce the nut M3-M27

CE Certificate M8 M9 M10 M12 DIN 981 Nut 12 Point Metric Hex Nut 17b 6s Nut Former

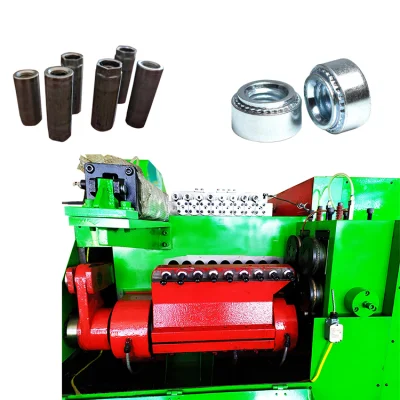

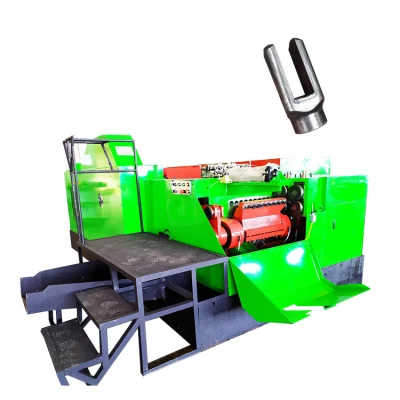

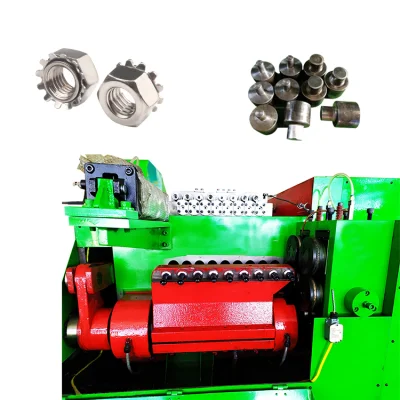

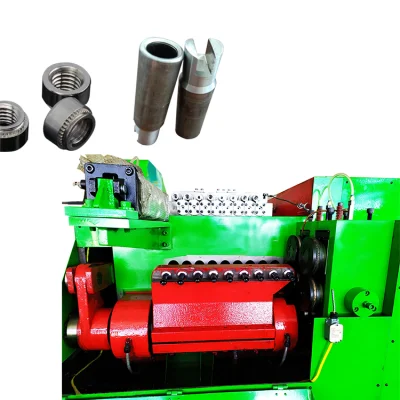

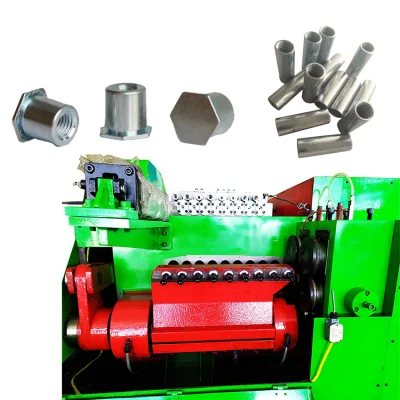

Nut Making Machine
Nut cold heading machine production of products
The nut making machine can do the nuts include standard parts and non-standard parts, such as: hexagon nuts, flange nuts, welding nuts, square nuts, T-nuts, rivets (hollow, semi-hollow) nuts, bushings, sleeves, four Claws nuts, nylon nuts, cap nuts, lock nuts, furniture nuts, automotive fasteners nuts, etc.


Related products
CE Certificate M8 M9 M10 M12 DIN 981 Nut 12 Point Metric Hex Nut 17b 6s Nut Former
CE Certificate M8 M9 M10 M12 DIN 981 Nut 12 Point Metric Hex Nut 17b 6s Nut Former

                Nut Tapping Machine                                                   Hot Forging Machine
CE Certificate M8 M9 M10 M12 DIN 981 Nut 12 Point Metric Hex Nut 17b 6s Nut Former
CE Certificate M8 M9 M10 M12 DIN 981 Nut 12 Point Metric Hex Nut 17b 6s Nut Former
Packaging
CE Certificate M8 M9 M10 M12 DIN 981 Nut 12 Point Metric Hex Nut 17b 6s Nut Former
Certificate

CE Certificate M8 M9 M10 M12 DIN 981 Nut 12 Point Metric Hex Nut 17b 6s Nut Former





FAQ

1. -Can your machinery produce non-standard parts?

-Yes, we can. Our machinery can produce non-standard parts, at the same time,we can also customize according to your parts drawings.
2. -Does your factory have customers in our country?
-We have rich experience in export. Europe, Asia, Africa, North America, South America, Oceania, all have our customers.
3. -Can you provide debugging video and samples?
-Sure. We will update the information (photos, videos, etc.) with you during and after debugging, and send samples. The shipment will be arranged only after you confirm it is correct.
4. -Can you arrange the delivery time according to the contract?
-Of course. We will deliver the goods to you as soon as possible on the basis of the contract. It will not affect your use.
5. -If it is beyond the warranty period, can we check the technical problems with you?
-Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.
