Basic Info.
Model NO.
Brass Ball Valve
Driving Mode
Manual
Nominal Pressure
ANSI CLASS 150-900
Channel
Straight Through Type
Structure
Floating Ball Valve
Type
Floating Ball Valve
Function
Blow-Down Valve
Temperature
Normal Temperature
Standard
ANSI
Application
Industrial Usage, Water Industrial Usage, Household Usage
Keyword
Threaded Stainless Steel Ball Valve
Payment
T/T or L/C
Handle Colour
Blue, Yellow, Red, Green
Quality Control
100% Test as Per Standard
Seal
PTFE, Rptfe, Ppl
Handle
Lock Handle, Without Lock Handle
OEM
Available
Sample
Available
Package
Plastic Bag + Carton + Plywood Case
Certificate
ISO, CE
Designation
Brass Hpb 57-3 304, 316, 304L, 316L, etc.
Body Type
1 PC, 2 PC, 3 PC, etc.
Thread Type
BSPT, BSPP, NPT, etc.
Company
Qingdao Fluido Industrial Co.,Ltd
Transport Package
Pallets or Plywood Cases
Specification
1/4"-4"
Trademark
Fluido
Origin
China
HS Code
8481804090
Production Capacity
50000pieces/Year
Packaging & Delivery
Package Size
35.00cm * 35.00cm * 35.00cm
Package Gross Weight
10.000kg
Product Description
Product Description

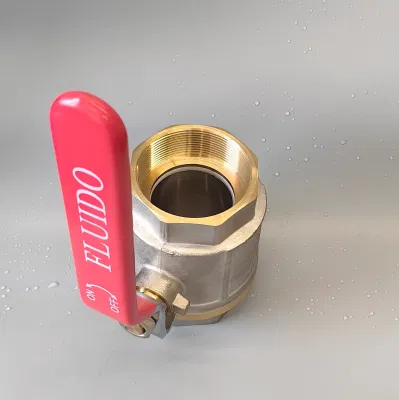

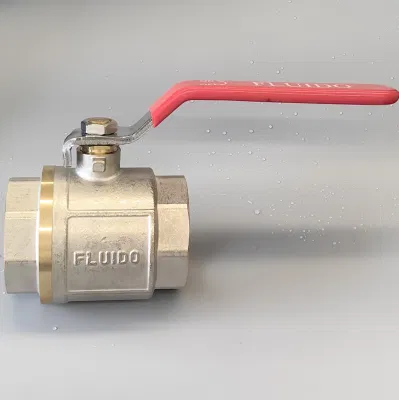

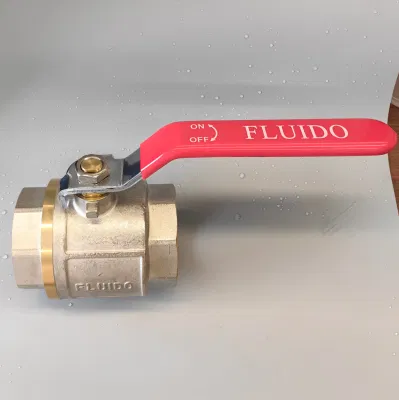

Brass Ball Valve 1/4" to 4" 600PSI NPT BSP Thread Hot Forging
| TYPE | Brass Ball Valve 1/4" to 4" 600PSI NPT BSP Thread Hot Forging | |||
| Material | Brass Forging | |||
| SIZE | DN15 DN 20 DN32 DN40 DN50 DN65 DN80 DN100 | |||
| Applicable medium | Firefighting, Piped Water | |||
| Medium temperature | ≤100ºC | |||
| Operating Pressure | ≤1.6MPA | |||
| Sealing Material | FKM Fluorine Rubber Hard Seal | |||
A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.Ball valves with mounting pad can also be operated by actuator and gear box.
Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff and control applications, where they are often preferred to gates and globe valves, but they lack their fine control in throttling applications.
Descriptions:
Brass Ball Valve 1/4" to 4" 600PSI NPT BSP Thread Hot Forging
1) Design standard: ASME B16.34, API608
2) Threads ends: ANSI B1.20.1,BS 21/2779,DIN 259/2999,ISO 228
3) Testing: API 598
4) Material:brass
5) Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2",2-1/2" ,3" ,4"
6) Working pressure: 1000 PSI,PN63
7) Seat Material: PTFE,RPTFE,PPL
8) Working temperature: -20 to 180°C(PTFE) ,-20 to 300°C(PPL)
9) Working medium: Water, Oil, Gas, Steam, Acid, etc
Features:
1) Blow-out proof stem
2) Investment Casting Body
3) Pressure Blance Hole in Ball Slot
4) Reduce Bore
5) Threaded type: NPT,PT,BSP,BSPT,DIN is available
6) Locking device is available
Warehouse
Packing & Delivery
1.Packing Details : carton+plywood pallets/cases+container. 2.Standard exporting cartons and plywood pallets/cases.
3. According to the customer's requirement.
4.Delivery Details : 15-30 days after confirming order.
