Basic Info.
Model NO.
standard
Size
1/4 to 1-1/2
Transport Package
Industrial
Specification
ANSI
Trademark
stc
Origin
Jiangsu
HS Code
82074000
Production Capacity
5000PCS/Month
Product Description

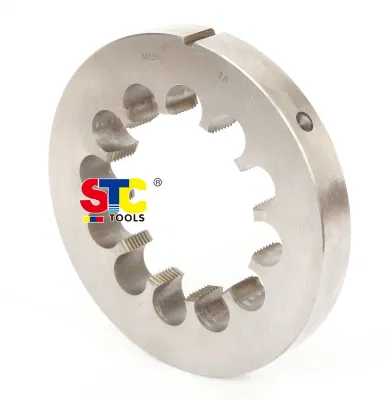

ADJUSTABLE ROUND DIES High Speed Steel or Aooly Tool Steel Adjustable round dies ideal for precision threading
Left-hand dies cut threads with a left-hand rotation
| Description | Overall Diameter |
| 1/4" - 20 NC - Right-Hand | 1-1/2" |
| 1/4" - 20 NC - Left-Hand | 1" |
| 1/4" - 28 NF - Right-Hand | 1-1/2" |
| 1/4" - 28 NF - Left-Hand | 1" |
| 5/16" - 18 NC - Right-Hand | 1-1/2" |
| 5/16" - 18 NC - Left-Hand | 1" |
| 5/16" - 24 NF - Right-Hand | 1-1/2" |
| 5/16" - 24 NF - Left-Hand | 1" |
| 3/8" - 16 NC - Right-Hand | 1-1/2" |
| 3/8" - 16 NC - Left-Hand | 1" |
| 3/8" - 24 NF - Right-Hand | 1-1/2" |
| 3/8" - 24 NF - Left-Hand | 1" |
| 7/16" - 14 NC - Right-Hand | 1-1/2" |
| 7/16" - 14 NC - Left-Hand | 1" |
| 7/16" - 20 NF - Right-Hand | 1-1/2" |
| 7/16" - 20 NF - Left-Hand | 1" |
| 1/2" - 13 NC - Right-Hand | 1-1/2" |
| 1/2" - 13 NC - Left-Hand | 1" |
| 1/2" - 20 NF - Right-Hand | 1-1/2" |
| 1/2" - 20 NF - Left-Hand | 1" |
| 1/2" - 24 NS - Left-Hand | 1" |
| 9/16" - 12 NC - Right-Hand | 1-1/2" |
| 9/16" - 12 NC - Left-Hand | 1-1/2" |
| 9/16" - 18 NF - Right-Hand | 1-1/2" |
| 9/16" - 18 NF - Left-Hand | 1-1/2" |
| 5/8" - 11 NC - Right-Hand | 1-1/2" |
| 5/8" - 11 NC - Left-Hand | 1-1/2" |
| 5/8" - 18 NF - Right-Hand | 1-1/2" |
| 5/8" - 18 NF - Left-Hand | 1-1/2" |
| 11/16" - 11 NS - Right-Hand | 1-1/2" |
| 11/16" - 16 NS - Right-Hand | 1-1/2" |
| 3/4" - 10 NC - Right-Hand | 1-1/2" |
| 3/4" - 10 NC - Left-Hand | 1-1/2" |
| 3/4" - 16 NF - Right-Hand | 1-1/2" |
| 3/4" - 16 NF - Left-Hand | 1-1/2" |
| 7/8" - 9 NC - Right-Hand | 2" |
| 7/8" - 14 NF - Right-Hand | 2" |
| 1" - 8 NC - Right-Hand | 2" |
| 1" - 12 NF - Right-Hand | 2" |
| 1" - 14 NS - Right-Hand | 2" |
| 1-1/8" - 7 NC - Right-Hand | 3" |
| 1-1/8" - 12 NF - Right-Hand | 3" |
| 1-1/4" - 7 NC - Right-Hand | 3" |
| 1-1/4" - 12 NF - Right-Hand | 3" |
| 1-3/8" - 6 NC - Right-Hand | 3" |
| 1-3/8" - 12 NF - Right-Hand | 3" |
| 1-1/2" - 6 NC - Right-Hand | 3" |
| 1-1/2" - 12 NF - Right-Hand | 3" |
